Specifications
non woven fabric machine1.advanced technology from abord
duction capacity:1500-6000ton/year
3.big motors siemens
The machinery is suitable to the production of nonwoven fabric by spun-laid and hot-rolled reinforcement. With PP as its main material; color master batch, antioxidant, fire retardant as its
additives to produce nonwoven fabric with different colors and different elements to fit the needs of
different usages.
Description of pp non woven fabric making machine
The raw material of this machine is Polypropylene, spec as following:
| Item | Unit | Technical index |
| Melting Index | g/10min | 27~35 |
| Melting point | °C | 162~165 |
| Density | G/cm3 | 0.90~0.91 |
|
Molecular Weight distribution |
Mw/Mn | <=4 |
| Content of grey | PPm | <=250 |
| No equal normality | % | <=3.5 |
| Content of water | % | <0.05 |
| Stretch strength | Mpa | >=31 |
General informatoin for various machines of different effective breadth:
| Type | Output |
total capacity(kw) |
Operating capacity |
Power consumption |
Transformers required |
Size of machine (W*L*H) |
Container required |
| 1.6m S |
1500 ton/year |
360 | 130kw | 800kw*h/ton | 250KVA | 9m*17m*10.5m |
5 containers of 40HQ |
| 1.6m SS |
3000 ton/year |
720 | 260kw | 800kw*h/ton | 315KVA | 10m*25m*10.5m |
10 containers of 40HQ |
| 2.4m S |
2200 ton/year |
540 | 220kw | 800kw*h/ton | 250KVA | 12m*17m*10.5m |
6 containers of 40HQ |
| 2.4m SS |
4400 ton/year |
1080 | 440kw | 800kw*h/ton | 630KVA | 14m*25m*10.5m |
12 containers of 40HQ |
| 3.2m S |
3000 ton/year |
720 | 300kw | 800kw*h/ton | 315KVA | 13m*22m*10.5m |
7 containers of 40HQ |
| 3.2m SS |
6000 ton/year |
1440 | 600kw | 800kw*h/ton | 800KVA | 17m*30m*10.5m |
14 containers of 40HQ |
Spun-laid process and technical flow chart:
Additive(recycling waste edge)--->Raw material -->Melting--> Filtering--> Measuring-->Spinning-->Cooling-->Stretching-->Web forming--> Calendering -->Rounding-->Final products

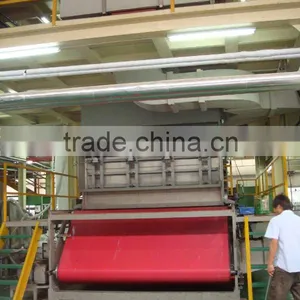

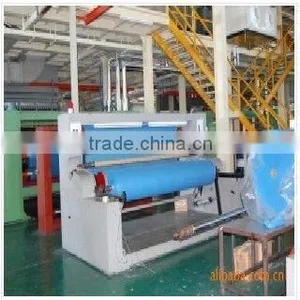

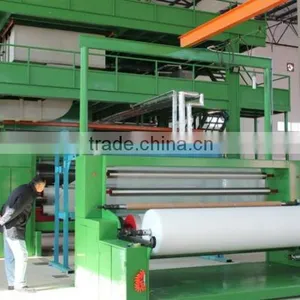

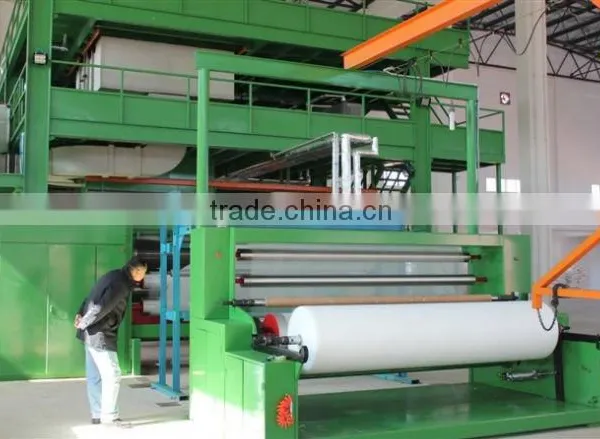

Flow of PP non woven machine:
Single beam:
double beam:
Final fabric:
Application fields:
Medical usage: operation suit, exposure suit, cap, sauna clothes face mask, shopping bag, disposable clothes and so on;
Agricultural usage: Cover for plant to anti-forst, packing bags for crops, etc;
Packing and lining: Bags for business,shopping and parents packet, dust cover, sleeping bag for children, leather shoes, sofa lining and so on.

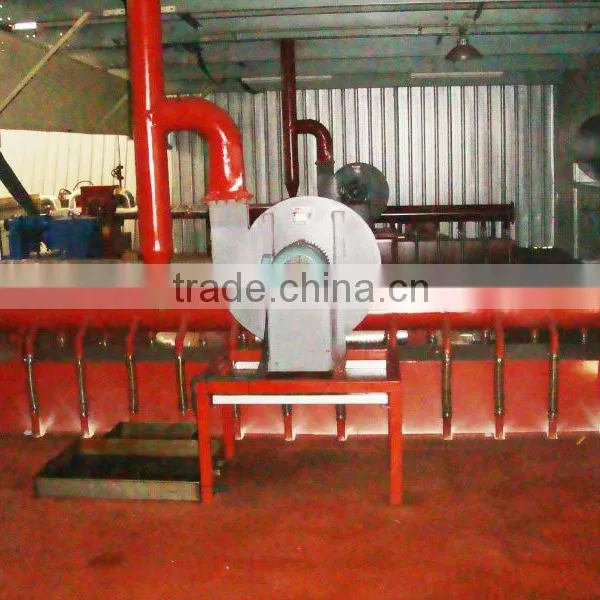

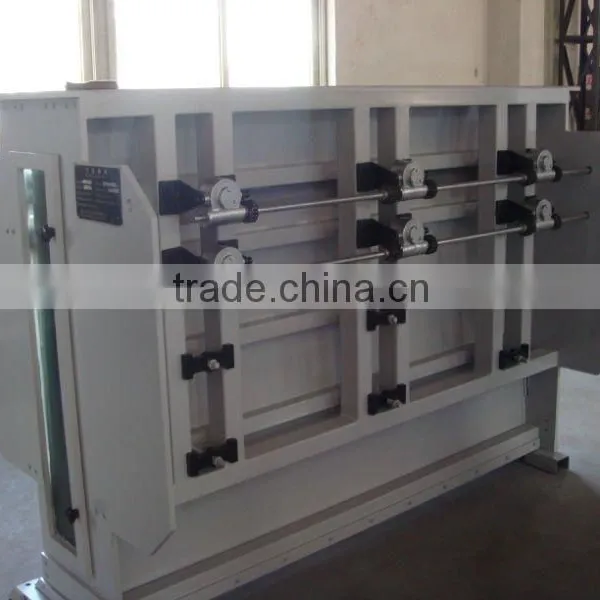

Parts of the machine:
The view of our workshop:
Pakaging:
We can also change the effective fabric width to fit clients' special requests.
