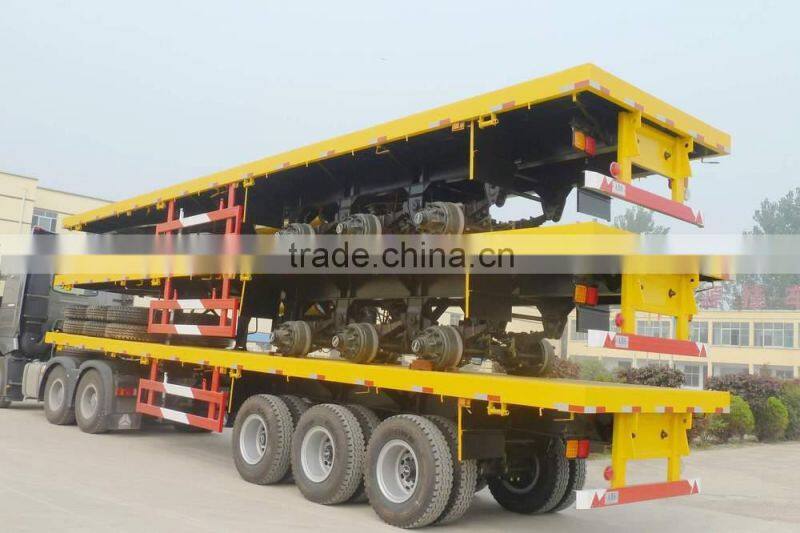

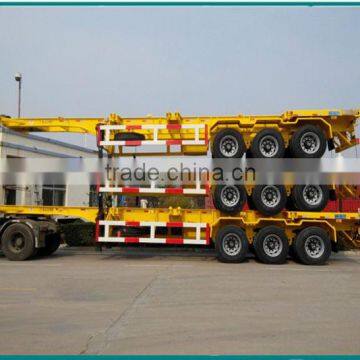

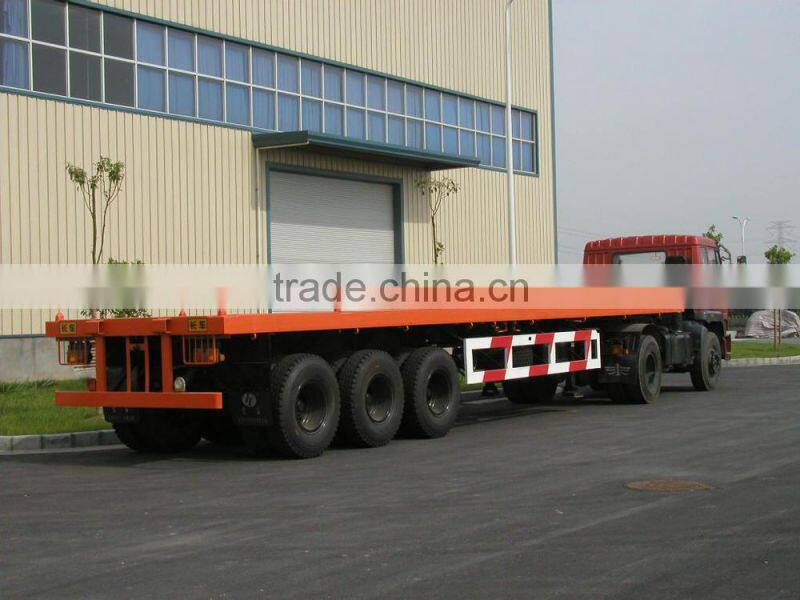

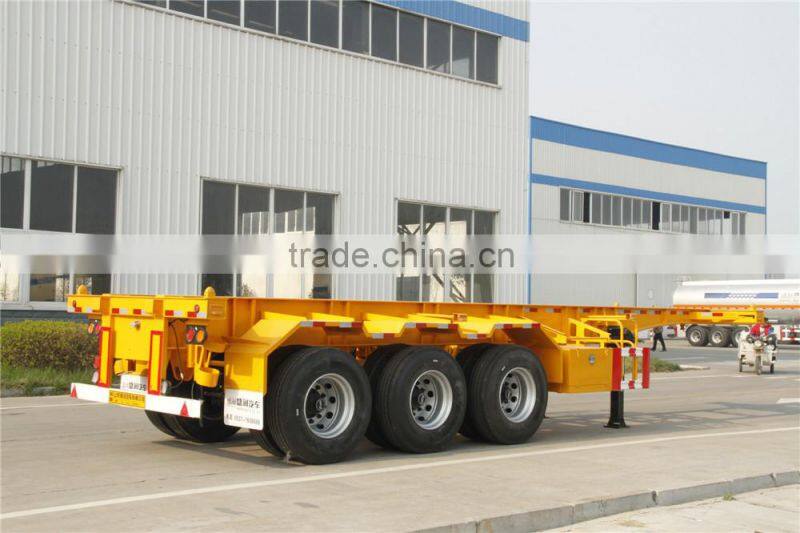

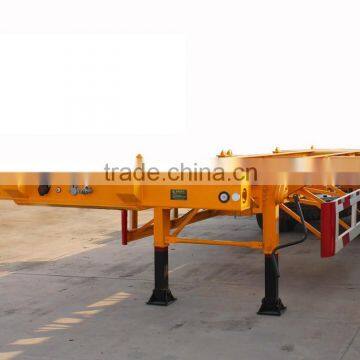

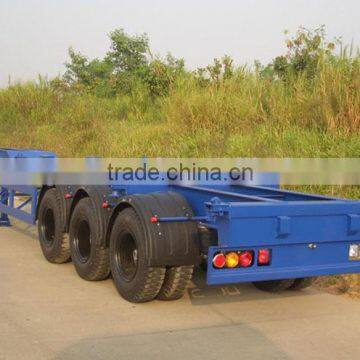

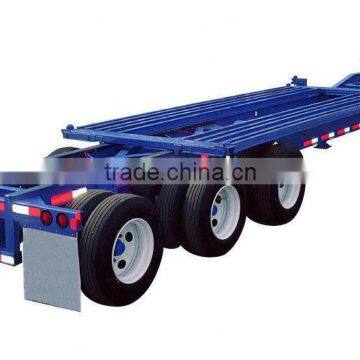

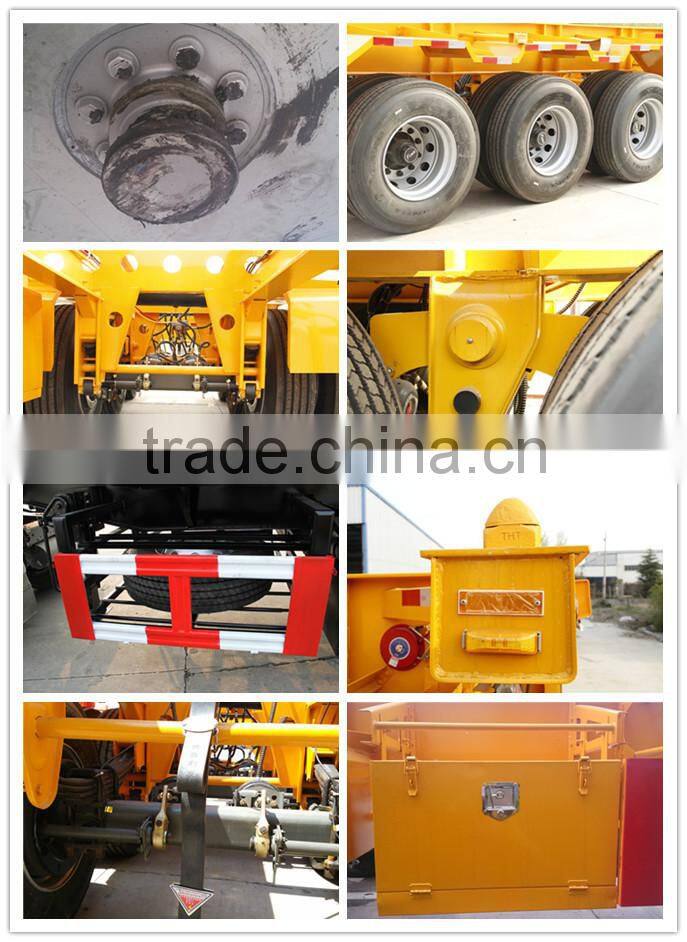

Skeleton container transport semi trailer on sale

Specifications

Manufacturer

Shandong Shengrun Automoblie Co., Ltd

Model Nunber

SKW9401P

Product type

Flatbed semi trailer

Outside dimension

Length:8500mm-13000mm width:2500 mm

height:2860mm-2900mm

Tare weight

About 6T

Wheelbase

6560mm+1310mm+1310mm

Loading capacity

30T-60T

Axle

13T/16T,FUWA/BPW/HUAJING Brand

ABS system

Optional

Front/rear

-/2420

Twist locks

Four,Eight,Twelve pieces(Lifting type or Twist screw type), optional

Suspension

Mechanical suspension(Germany Type or America Type) or Air suspension(China brand or BPW brand)

Spring leaf

90(W)mm *13(Thickness)mm*10Layer, optional

Tires

12 Pieces Triangle Brand

Rim

9.00×22.5   China brand     12pieces

King pin

JOST 2.00 or 3.5 ,Welding type

Support legs

JOST brand D200T or China brand 28tons( Double speed)

The material of main beam

The height of the beam is500mm,upper plate is 14 mm,down plate is 16mm,middle plate is 8 mm,Material is Q345B steel

Floor plate

3mm or can be optional

Side beam

16mm or 18mm channel stee (Material is Q235steel)

Side wall

600-1500mm height, or can be do box type,for choose

Brake Chamber

  WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks Or China brand

Electrical System

24V,7 wire harness

Tool box

One piece or according to the requirement of the buyer

Painting

Compete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint

Chassis name

Cargo truck chassis

Reflective warning signage

Manufacturer: Changzhou Hua R Sheng Reflective Material Co., Ltd.

Brand:TONGMING       Product Type:TM1200-1

Others

1. This vehicle is used to transport 40FT container.

2. ABS system:       type: 4S/2M.

Manufacturer: Guangzhou  KEMI  Electronic Technology Co., Ltd.

3. Under-run protector:with the material of Q235B,be welding with the main body

4. Rear under-run protector: the height above the ground is 500mm Section:150mm*55mm.

Shipping terms

By bulk cargo carrier,RORO or 40HQ container
