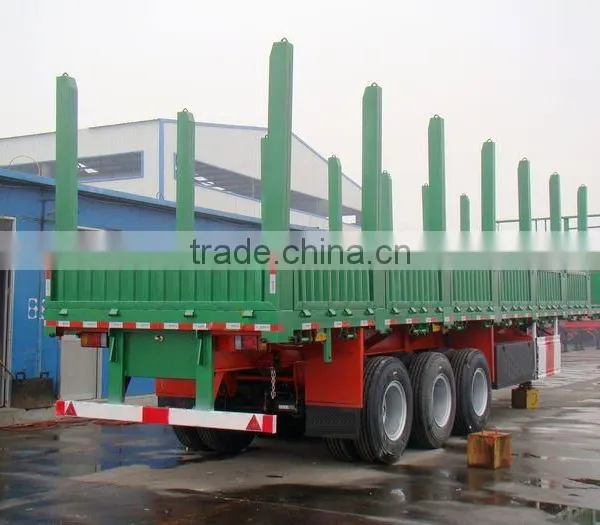

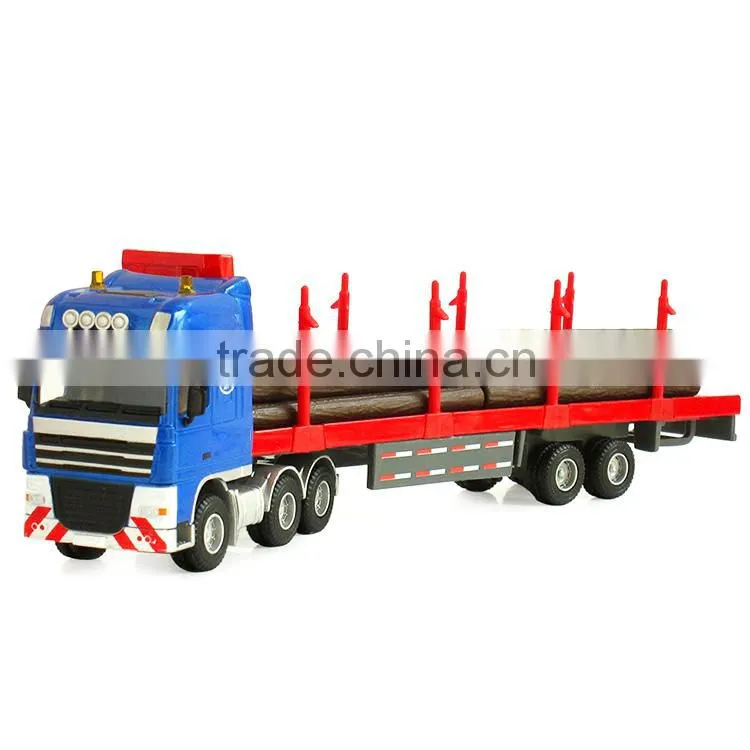

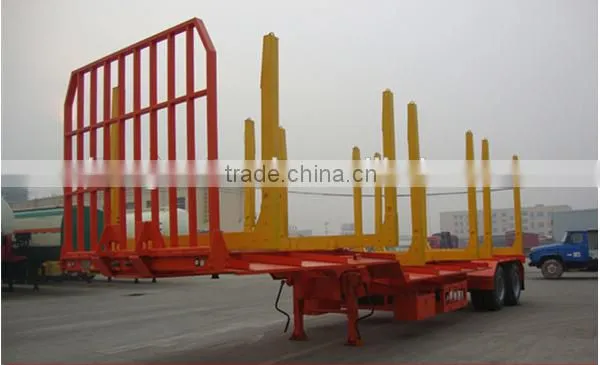

timber / wood transportation utility semi trailer for truck trailer

Name

Wood Transporting Semi Trailer

Application

Timber transport

Overall dimension

(Lx W xH) (mm)

12670x2500x1785

Chassis

Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Aac processes. Top flange 14mm, width140mm; Middle Flange 8mm; bottom flange16mm, width 140mm

Curb weight (kg)

7000

Loading capacity(kg)

40000

Suspension

Mechanical suspension

Leaf spring

10pcs, spring leaf, 11x10

Floor

no

King pin

50#(2’’) bolt-in king pin

Landing gear

two-speed, manual operating, heavy duty landing gear

Axle

3 x 13 ton(8 holes), brand FUWA

Tyre

12R22.5, 12 pcs,

Wheel rim

9.0, 12pcs

Braking system

6 relay valve; T30/30 spring brake chamber; 40L air tanks

Painting

Complete chassis sand blasting to clean rust, 1coat of anticorrosive prime, 2 coats of final paint

Accessories

One standard tool box
