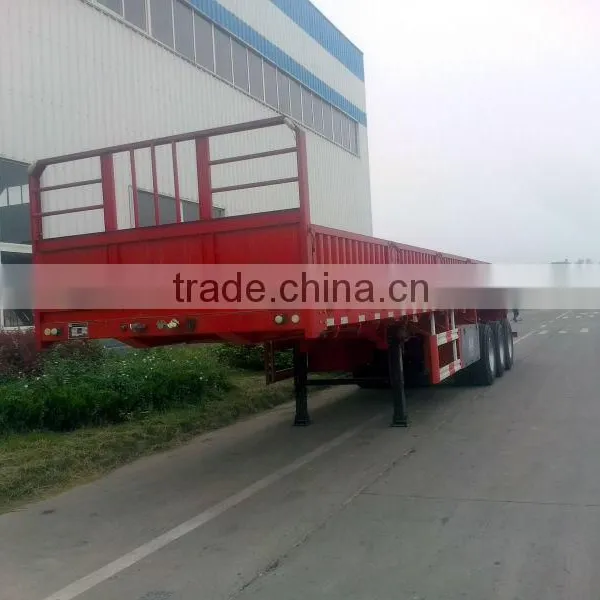

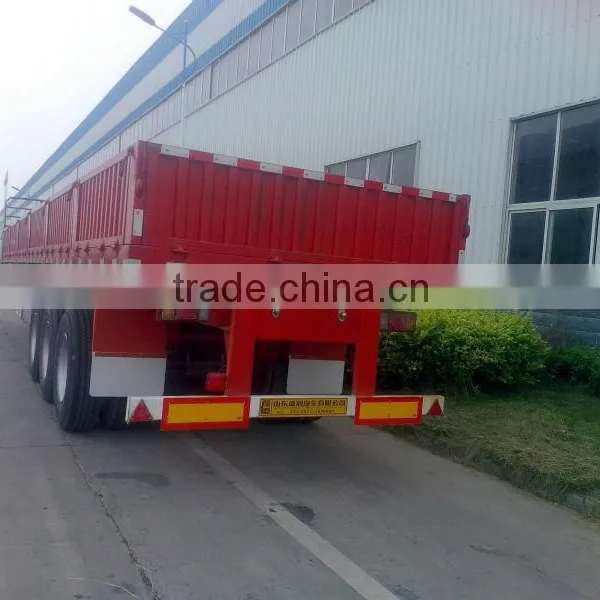

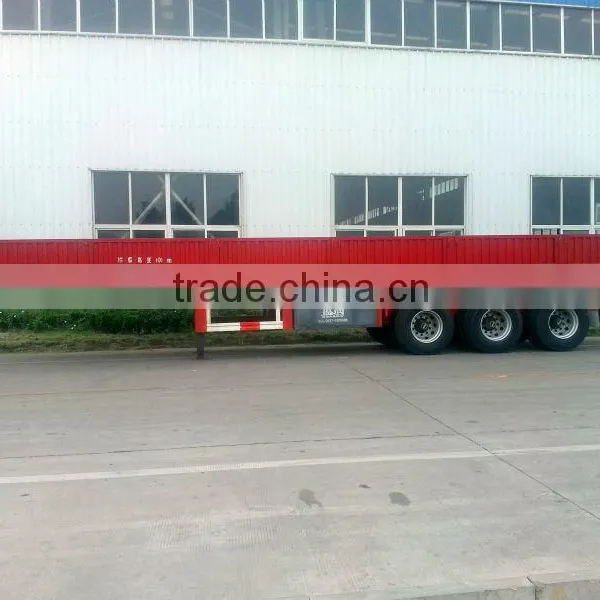

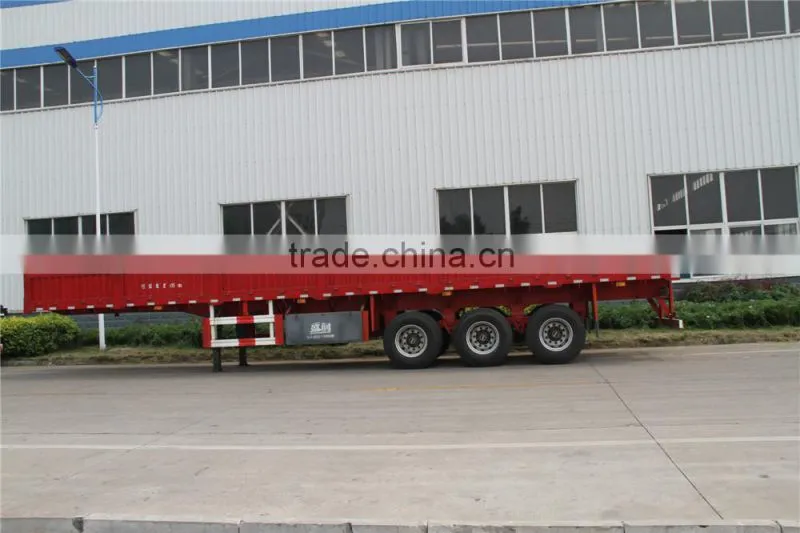

hot sale enclosed cargo trailer
Specifications
cattle transport truck trailer:
1.used for carrying grain,container,coal,bulk good
2.high quality
3.We are manufacturer,redesign to meet your needs
4.Main beams:heavy-duty design
5.ISO9001,CCC
hot sale enclosed cargo trailer
|
Specifications | |
Manufacturer |
Shandong Shengrun Automoblie Co., Ltd |
Model Nunber |
SKW9406/SKW9407/SKW9404/SKW9405/SKW9402/SKW9400CCYA/ SKW9408CCYA/SKW9381CCYA/SKW9407CCYA |
Product type |
Stake semi trailer |
Outside dimension |
Length:12500mm-13000mm width:2500 mm height:2860mm-3850mm
|
Tare weight |
About 6.5T |
Wheelbase |
6560mm+1310mm+1310mm |
Loading capacity |
30T-60T |
Axle |
13T/16T,FUWA/BPW/HUAJING Brand |
Front/rear |
-/2420 |
ABS system |
Optional |
Twist locks |
Four,Eight,Twelve pieces(Lifting type or Twist screw type), optional |
Suspension |
Mechanical suspension(Germany Type or America Type) or Air suspension(China brand or BPW brand) |
Spring leaf |
90(W)mm *13(Thickness)mm*10Layer, optional |
Tires |
12.00R22.5 12pieces |
Rim |
9.00-22.5 China brand 12pieces |
King pin |
JOST 2.00 or 3.5 ,Welding type |
Support legs |
JOST brand D200T or China brand 28tons( Double speed) |
The material of main beam |
Height: 500mm, upper plate is 14mm, middle plate is 8mm,down plate is 16mm; Material is Q345B Steel. |
Floor plate |
3mm or can be optional |
Side beam |
16mm or 18mm channel stee (Material is Q235steel) |
Side wall |
600-1500mm height, or can be do box type,for choose |
Brake Chamber |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks Or China brand |
Electrical System |
24V,7 wire harness |
Tool box |
One piece or according to the requirement of the buyer |
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Chassis name |
Cargo truck chassis |
Reflective warning signage |
Manufacturer: Changzhou Hua R Sheng Reflective Material Co., Ltd. Brand:TONGMING Product Type:TM1200-1 |
Others |
1. This vehicle is used to transport 40FT container. 2. ABS system: type: 4S/2M. Manufacturer: Guangzhou KEMI Electronic Technology Co., Ltd. 3. Under-run protector:with the material of Q235B,be welding with the main body 4. Rear under-run protector: the height above the ground is 500mm Section:150mm*55mm. |
Shipping terms |

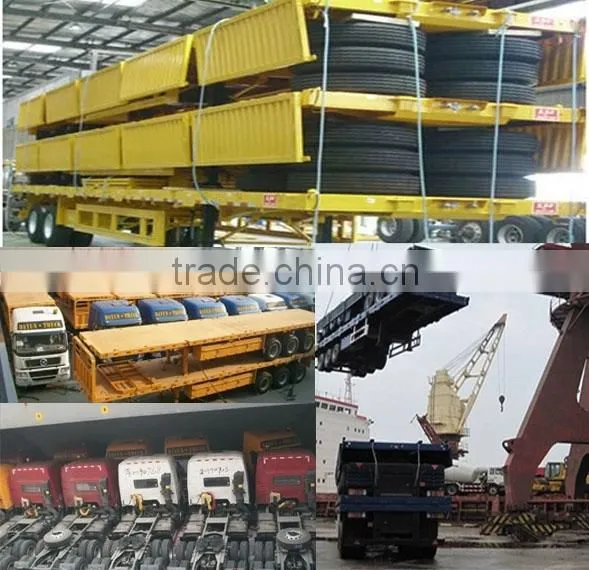

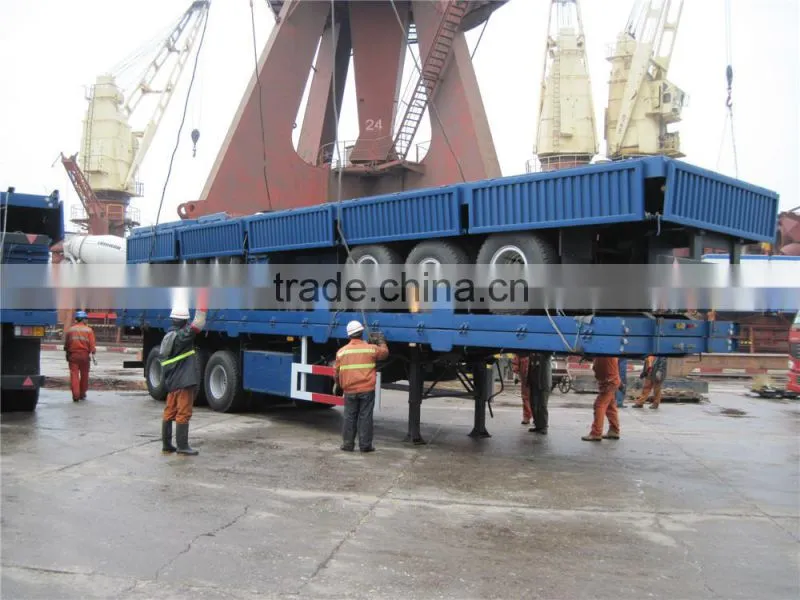

By bulk cargo carrier,RORO or 40HQ container |

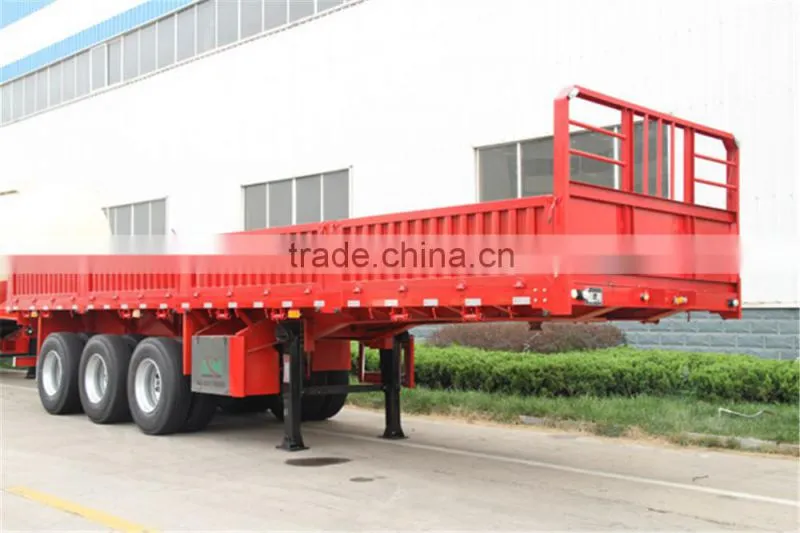

Enclosed cargo trailer

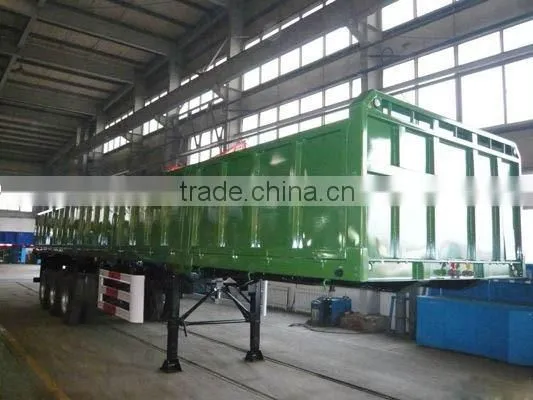

Our workshop
Enclosed cargo trailer
We are the full-size Modified Truck enterprise which integrates the design of product, scientific research developing, production and sale together, possessing subsidiary companies of automobile production, automobile trade and automobile fittings production, etc. Our leading products include "Shengrun" brand semi-trailers, tipper, fuel tanker, particle material tanker, bulk cement tanker, concrete mixer truck, wrecker trucks,LPG, LNG, CNG, and other special vehicles. One hundred kinds of truck semi-trailers and tank trailers have passed our National Technical Appraisal and up to top class level in China, we have passed many certificates, such as ISO9001: 2008, CCC etc.s products listed in Public Notice on automobile refitting for management.
If you want to kown more enclosed cargo traile,please contact me !
Welcome to visit our company at any time !
Kelly Zhen (Sales Manager)
Company: Shandong Shengrun Automoblie Co., Ltd
Add: (No. 1, Tongya Road) Quanpu Industrial Park Of Liangshan Country, Jining, Shandong, China (Mainland)
Tel:0086-537-7608808
Fax:0086-7608889/7608808
Mobile:0086-13181335580
Skype:live:shengrun-kelly
QQ:654037126
Trade Manager:cn1513226460
Send Inquiry to This Supplier
