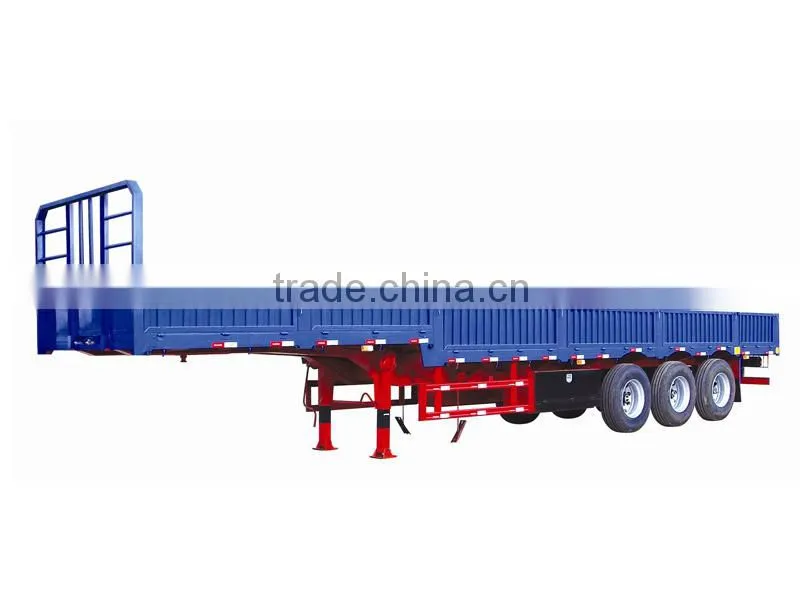

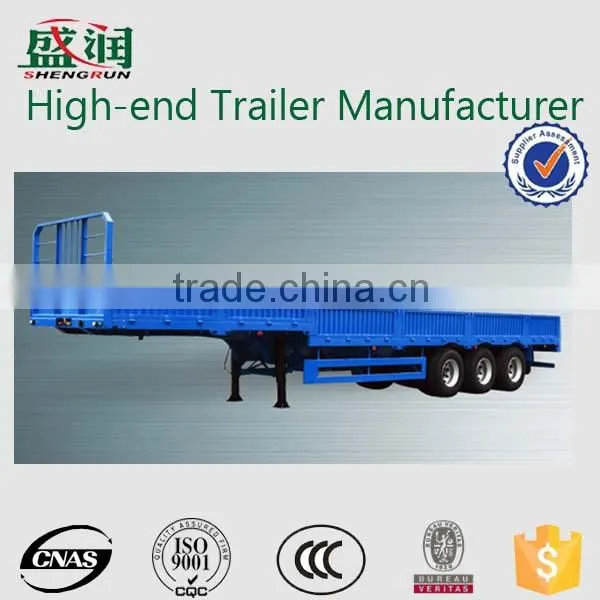

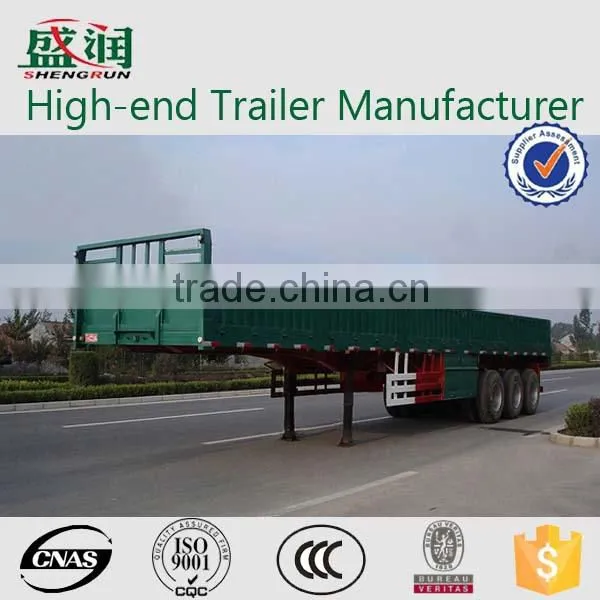

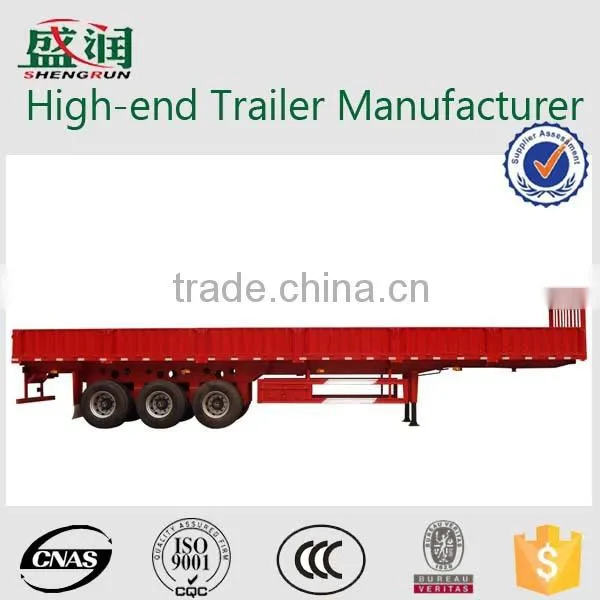

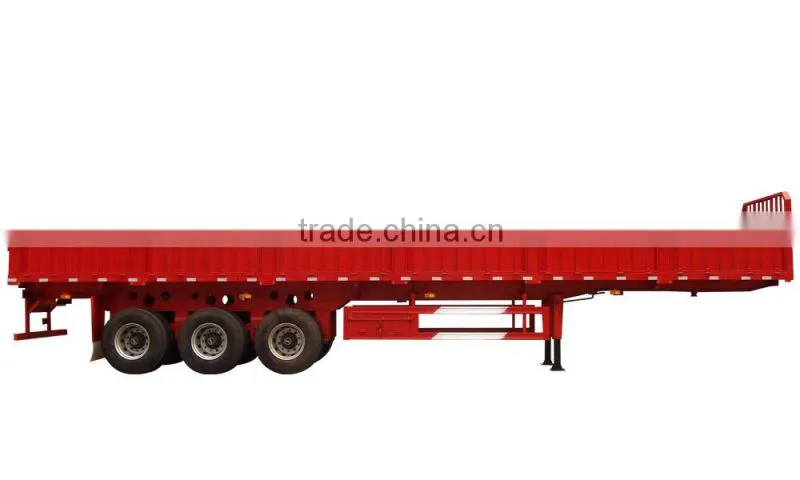

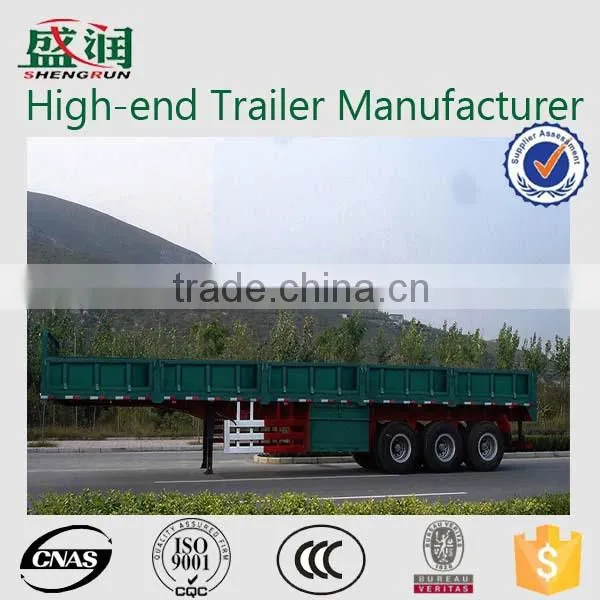

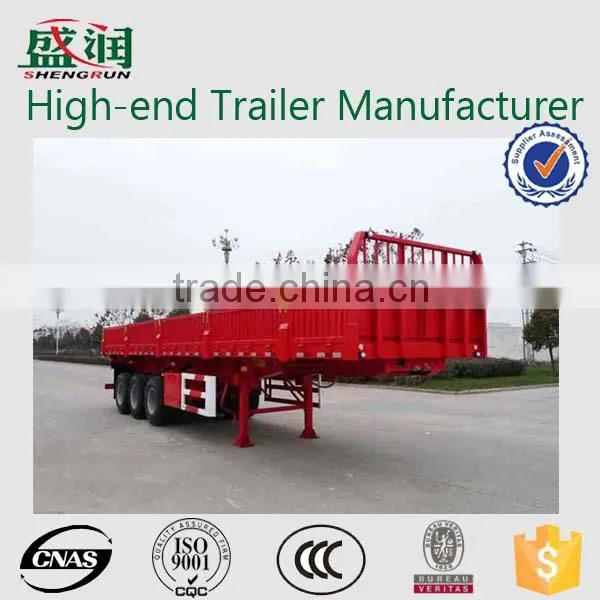

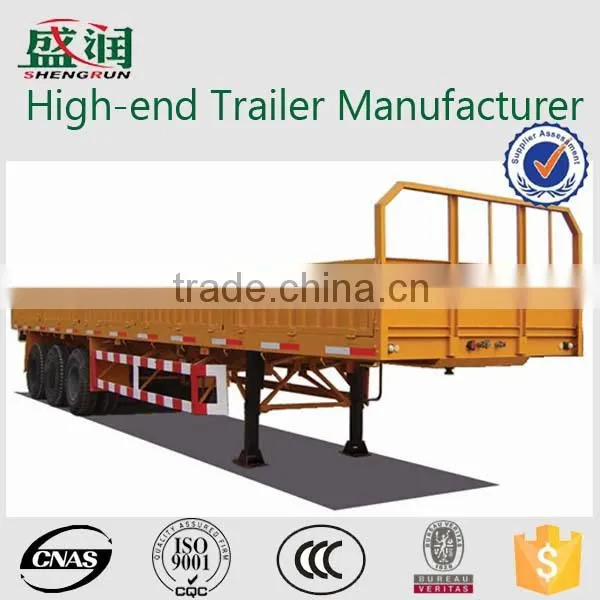

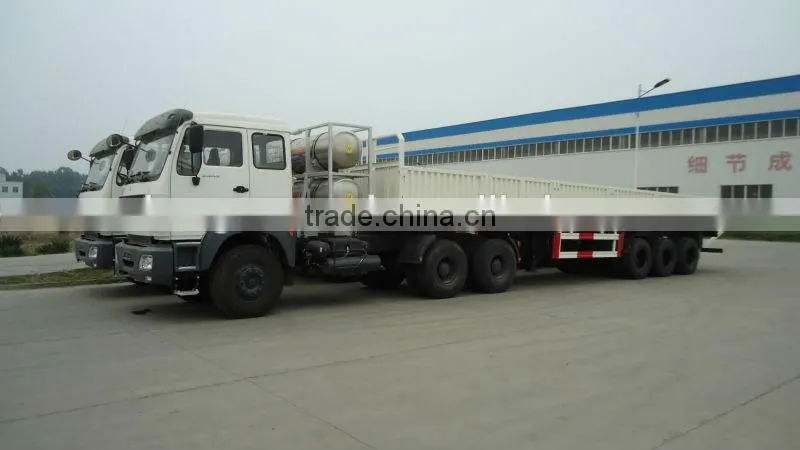

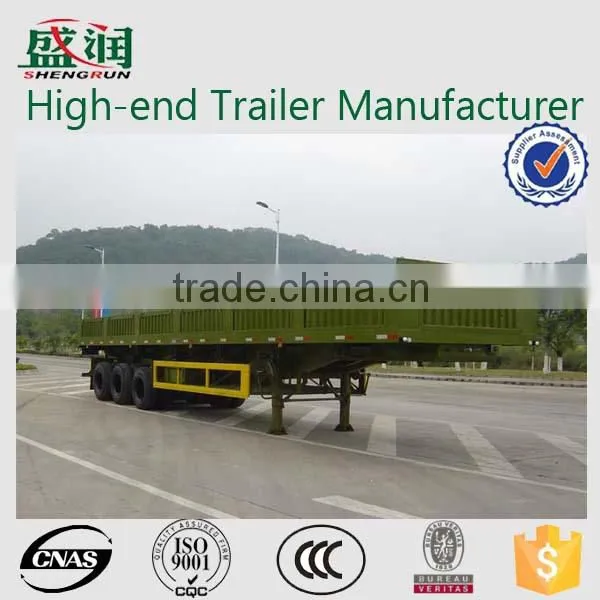

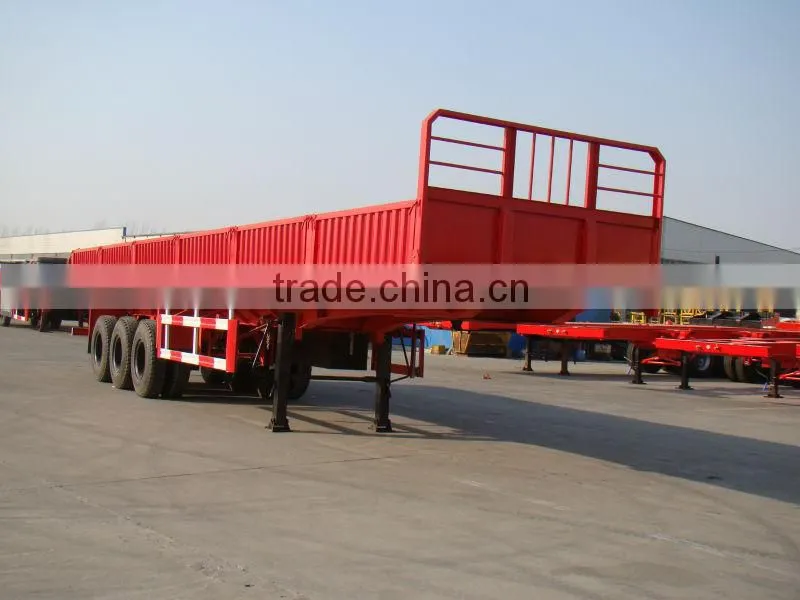

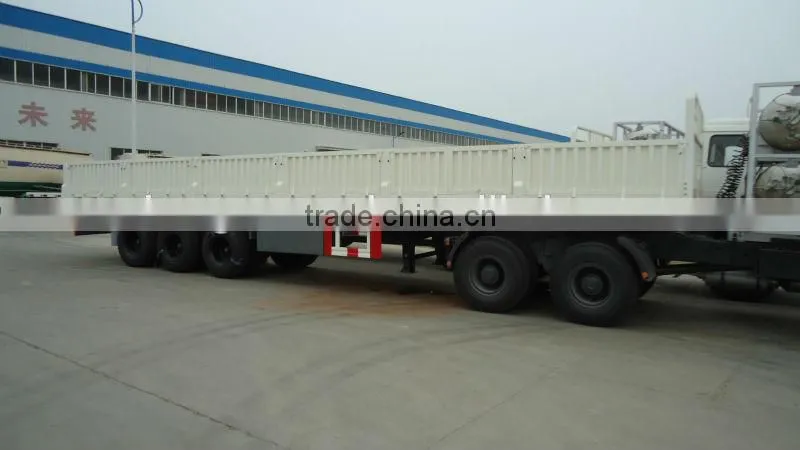

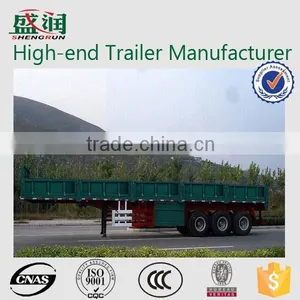

Help CenterSide Wall Semi Trailer/The Tailgate Semi-trailer Series Shengrun
Related Products
-
China High Quality Bulker Carrier Utility Side Wall Semi Trailer for TruckUS$ 11,500 - 13,500MOQ: 1 Unit -
Tri-axle High Bed Semi Trailer With Semi Trailer Door for SaleUS$ 11,500 - 13,500MOQ: 1 Unit
-
2015 Top Ranking Side Wall Semi Trailer With Side Panels DetachableUS$ 11,500 - 13,500MOQ: 1 Unit
-
Boat Semi Trailer Shengshun Auto /side Wall Semi Trailer / Transport Semi TrailerUS$ 12,500 - 15,000MOQ: 1 Set
-
China Manufacture High Qality Heavy Duty Fence Cargo Truck Trailer for SaleUS$ 11,500 - 12,800MOQ: 1 Unit
|
Specifications | |
Manufacturer |
Shandong Shengrun Automoblie Co., Ltd |
Model Nunber |
SKW9406/SKW9407/SKW9404/SKW9405/SKW9402 |
Product type |
Flatbed semi trailer |
Outside dimension |
Length:8500mm-13000mm width:2500 mm height:2860mm-2900mm |
Tare weight |
About 6T |
Wheelbase |
6560mm+1310mm+1310mm |
Loading capacity |
30T-60T |
Axle |
13T/16T,FUWA/BPW/HUAJING Brand |
ABS system |
Optional |
Front/rear |
-/2420 |
Twist locks |
Four,Eight,Twelve pieces(Lifting type or Twist screw type), optional |
Suspension |
Mechanical suspension(Germany Type or America Type) or Air suspension(China brand or BPW brand) |
Spring leaf |
90(W)mm *13(Thickness)mm*10Layer, optional |
Tires |
12 Pieces Triangle Brand |
Rim |
9.00×22.5 China brand 12pieces |
King pin |
JOST 2.00 or 3.5 ,Welding type |
Support legs |
JOST brand D200T or China brand 28tons( Double speed) |
The material of main beam |
The height of the beam is500mm,upper plate is 14 mm,down plate is 16mm,middle plate is 8 mm,Material is Q345B steel |
Floor plate |
3mm or can be optional |
Side beam |
16mm or 18mm channel stee (Material is Q235steel) |
Side wall |
600-1500mm height, or can be do box type,for choose |
Brake Chamber |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks Or China brand |
Electrical System |
24V,7 wire harness |
Tool box |
One piece or according to the requirement of the buyer |
Painting |
Compete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint |
Chassis name |
Cargo truck chassis |
Reflective warning signage |
Manufacturer: Changzhou Hua R Sheng Reflective Material Co., Ltd. Brand:TONGMING Product Type:TM1200-1 |
|
Others
|
1. This vehicle is used to transport 40FT container. 2. ABS system: type: 4S/2M. Manufacturer: Guangzhou KEMI Electronic Technology Co., Ltd. 3. Under-run protector:with the material of Q235B,be welding with the main body 4. Rear under-run protector: the height above the ground is 500mm Section:150mm*55mm. |
Shipping terms |
By bulk cargo carrier,RORO or 40HQ container |
We can be customized according to your demandˆυˆ
