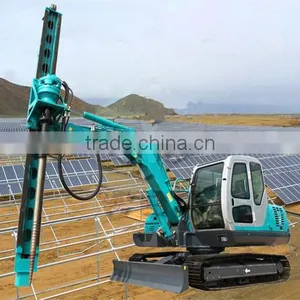

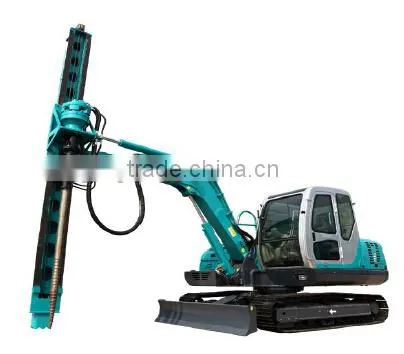

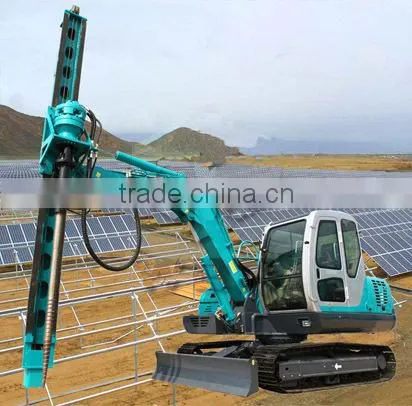

Ground Screw piling Machine
- 1000 Piece / Pieces per Month
- Xiamen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Efficiency: | other | Piling Speed(m/min): | other |
Place of Origin: | Fujian, China | Brand Name: | Empery | Model Number: | SWDL |
Weight: | other | Dimension(L*W*H): | other | Certification: | ISO9001, ISO9001 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Ground Screw Piling MachineTechnical Date
Ground Screw Piling MachineTechnical Date
Pile Drilling Parameter | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Drilling Diameter | mm | 76 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Drilling Depth | mm | 1800 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Chassis | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wheel gauge | mm | 1430 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Track gauge | mm | 1150 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Crawler width | mm | 250 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Grounding clearance | mm | 280 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dozer length | mm | 1400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Travel Capacity | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Traction | KN | 19 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
(Max/Min) Travel speed | Km/h | 4.7/2.6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Climbing capacity | ° | 20 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Feed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Length of feeding beam | mm | 3400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stroke | mm | 2000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Speed | m/min | 2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rotation | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Torque | N.m | 1500 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Speed | rpm | 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Engine | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model |
| YANMAR-3TNV82A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Displacement | L | 1.331 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power/Rev. | kw/rpm | 16/2200 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Fuel tank volume | L | 42.5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Turntable Swing | ° | 360 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimension(L*W*H) | mm | 5500X1400X3000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Machine Weight | kg | 3000 |
Introduction:
The spiral machine is base on the excavator system, which can complete digging and drilling work by different work devices.
Easy and flexible operation: all actions including travel, dozer, turntable swing, work devices, pile rotation and feed etc. are all controlled by advanced hydraulic pilot valve. Work operation is in the cabin which can reduce operating force and operator's load and advance the control stability.
1. Drill frame angle display is fit in the cab, which make operation clearly.
2. The machine is supplying special clamping fixtures for piles, easy assembling and disassembling, high efficiency.
3. The machine is supplying pile guiding device which can ensure the verticality of pile drill.
4. Safety and reliable key parts: YANMAR-3TNV82A engine from Japan, hydraulic system main pump, main valve, swing motor, travel motor are all from KYB Janpa
