Home > Products > Low Bed Semi Trailer > 2015 New And Used 3 Axles Low Bed Trailer,Excavator Carrying Trailer,Lowbed Truck Trailer

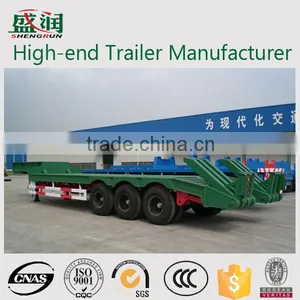

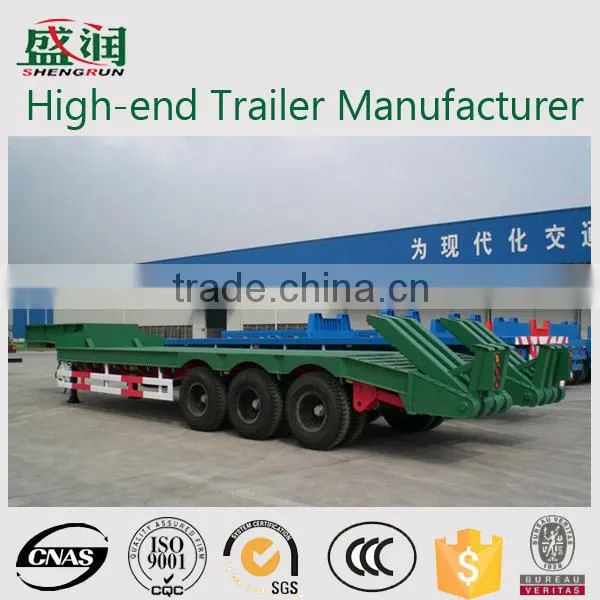

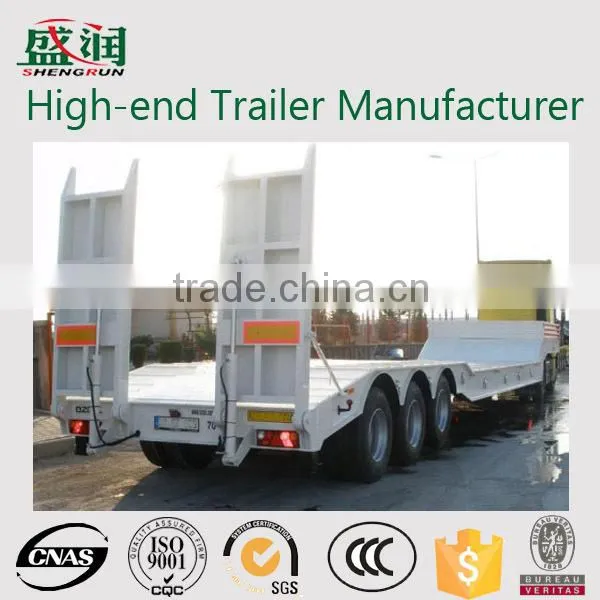

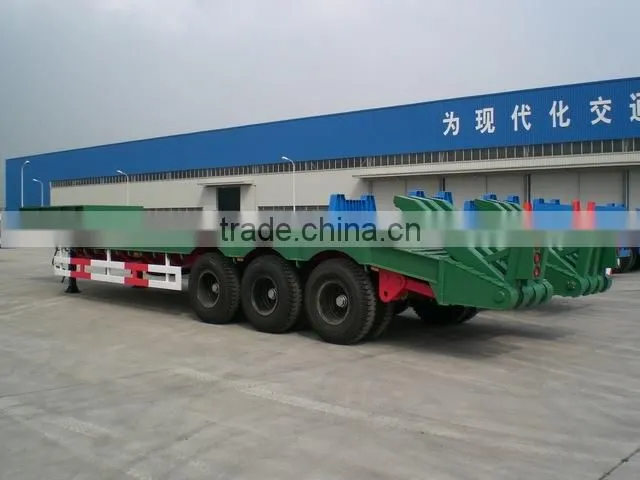

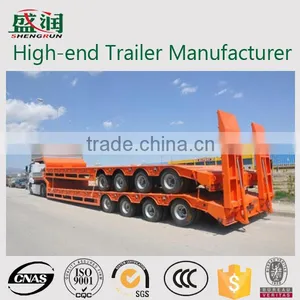

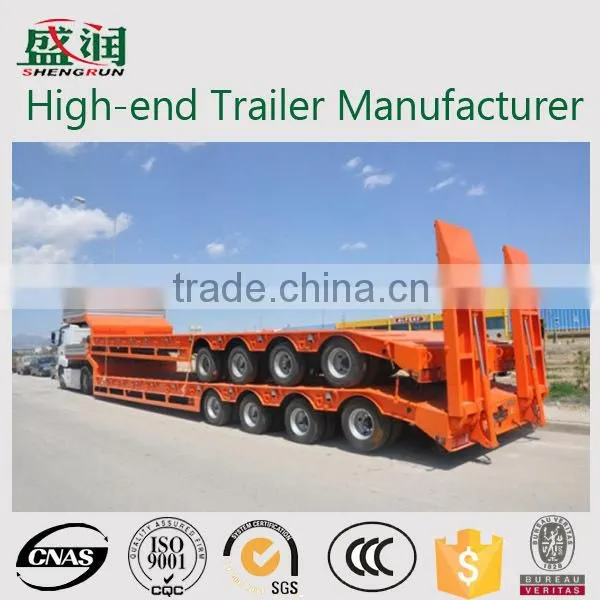

2015 New And Used 3 Axles Low Bed Trailer,Excavator Carrying Trailer,Lowbed Truck Trailer
- 300 Unit / Units per Month
- Qingdao or Tianjin port
- T/T
- Sedan SUV transport semi-trailer export semi-trailer Russian European style semi-trailer
- Low flatbed semi-trailer Hydraulic ladder semi-trailer Automatic low flatbed export trade
- Exporting trailers to Russia European style car transport Semi trailer price
- Multi axles modular low bed semi trailer
- AUTONE wingspan van semitrailer
- Container Semi Trailers
Product Details
Type: | Semi-Trailer | Material: | Steel | Certification: | Other, CCC ISO |
Size: | 12500-16500*3000-3500*1650 | OEM No.: | 370832228003534 | Max Payload: | 60-100Ton |
Place of Origin: | Shandong, China | Brand Name: | shengrun | Model Number: | SKW940TDP |
Product Description
2015 New And Used 3 Axles Low Bed Trailer,Excavator Carrying Trailer,Lowbed Truck Trailer
2015 New And Used 3 Axles Low Bed Trailer,Excavator Carrying Trailer,Lowbed Truck Trailer
A lowboy (low loader in British English, low-bed in western Canada or float in Australia) is a semi-trailer with two drops in deck height: one right after the gooseneck and one right before the wheels. This allows the deck to be extremely low compared with other trailers. It offers the ability to carry legal loads up to 12 ft (3.66 m) tall, which other trailers cannot. Lowboys are used to haul heavy equipment such as bulldozers, industrial equipment etc.
Low flatbed semi-trailer is also very widely used, especially for a variety of mechanical equipment, large objects, road construction equipment, large tanks, and power station equipment machines of various steel transports.
1. Low flatbed semi-trailer has flatbed, concave and tire exposed beam structure, stringers using straight type or gooseneck type. It is with ladder-type frame, stringer-shaped cross-section, with a high stiffness and high strength.
2. Lower main plane of the frame dock to ensure the smooth transportation, fit to carry all kinds of engineering machinery, large equipment and steel.
3.Using triaxial balanced type suspension, balanced biaxial suspension or rigid suspension, mass balance blocks are being fitted between the front and rear leaf spring that enable the force balance to both front and rear axles, etc.;
4. Low flatbed semi-trailer series of products for a variety of mechanical equipment, large objects, road construction equipment, large tanks, power station equipment machines of various steel transports, versatile, fast and efficient. Vehicle adopt advanced computer-aided design software, to optimize the design flexible, base on user requirements and design a frame bearing surface, to meet a variety of special cargo.
2015 New And Used 3 Axles Low Bed Trailer,Excavator Carrying Trailer,Lowbed Truck Trailer
Axles of flatbed semi trailer:(13Ton fuwa axle )
Tires:
Suspension:
Kingpin(2 or 3.5 inch,Jost brand,Welding type or bolt-in type)
Twist Locks :
Valve(WABCO 6 RE VALVE):
2015 New And Used 3 Axles Low Bed Trailer,Excavator Carrying Trailer,Lowbed Truck Trailer
Specification:
Specifications | ||
Manufacturer | Shandong Shengrun Automoblie Co., Ltd | |
Model Nunber | SKW9350TDP/SKW9402TDP | |
Tare Weight | About 8.5T-13T | |
Dimension | 13000mm*2500mm-3500mm*1650mm (Size can be choose freely) | |
Loading Capacity | 40T-100T | |
Axle | 13T/16T, FUWA/BPW/Huajing Brand | |
Rim | 8.00-20 (Special for export market) 12pieces | |
Tire | 11.00R20 12pieces | |
Suspension | Mechanical suspension (Germany Type or America Type) or Air suspension(China brand or BPW brand) | |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer (especial for exporting market ) | |
King pin | JOST brand 2.0 or 3.5 inch bolts type or Welding type | |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) | |
Main beam | Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel . | |
Side beam | 16mm-25mm channel steel ( Material is Q235steel ). | |
Bottom Platform | 5mm thickness diamond steel plate or can be optional | |
Ladder | Manual type or Hydraulic type | |
Gooseneck | For choose | |
Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 45L air tanks | |
ABS | Optional | |
Valve | WABCO valve | |
Light | LED light (Special for export market) | |
Voltage | 24V | |
Receptacle | 7 ways (7 wire harness) | |
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) | |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
2015 New And Used 3 Axles Low Bed Trailer,Excavator Carrying Trailer,Lowbed Truck Trailer
About us:
Shangdong Shengrun Automobile Co., Ltd. is listed among appointed enterprises to produce and refit automobile approved by Development and Reform Commission of China(former Economy and Trade Commission of China), the first cooperation enterprise with its products listed in Public Notice on automobile refitting for management.
We are the full-size Modified Truck enterprise which integrates the design of product, scientific research developing, production and sale together, possessing subsidiary companies of automobile production, automobile trade and automobile fittings production, etc. Our leading products include "Shengrun" brand semi-trailers, tipper, fuel tanker, particle material tanker, bulk cement tanker, concrete mixer truck, wrecker trucks, LNG, CNG, and other special vehicles.
Our company covers an area of 730,000 square meters, total assets 460 million RMB. We have more than 800 workers; including 128 persons with senior technical title. We have top-notch numerical control cutting machine, automatic welding machine, large-size bending machine and board press machine in China, tanker body automatic welding tipper, the greatest entire-car-passing type shot blasting machine in Shandong province, 21m length super spray painting and baking varnish room, Switzerland four-wheel ATD-GPS and 400 sets test equipment which are advanced technology and Hi-Tech equipment. One hundred kinds of truck semi-trailers and tank trailers have passed our National Technical Appraisal and up to top class level in China, we have passed many certificates, such as ISO9001: 2008, CCC etc.
Persisting in "the quality will cast on the brand, the good faith building future" as the enterprise objective, the company's staff devote to the promotion of enterprise core competitive power, pursuing the sustainable development, the making strong trend brand, in order to serve all the clients.
Our company:
Our warehouse:
Our machines:
Shengrun main products are:
-tank semi-trailer,
-bulk cement tank semi-trailer,
-aluminium alloy tanker trailer,
-container (flatbed)transport trailer,
-equipment trailer (low bed trailer),
-rear/side dump semi-trailer,
-timber (wood) transport semi- trailer,
-car transport trailer, low loader,
-hydraulic modular trailer,
-3 lines 6 axles,
-multi-axle hydraulic low bed,
- blade transport trailer, dump truck,
-tipper truck, tractor camion etc.
More details about 2015 New And Used 3 Axles Low Bed Trailer,Excavator Carrying Trailer,Lowbed Truck Trailer ,Pls feel free to contact me!
Sales Manager
Shangdong Shengrun Automobile Co., Ltd.
Add:No.1 Tongya Road ,Quanpu Industrial Park,Liangshan County,Jining ,Shandong.
Website: www.shengruntruck.en.china.cn
Tel:0086-537-7608808
Fax:0086-537-7608889
Viber/Wechat/Mobile No.:0086-15853702799/18660765197
