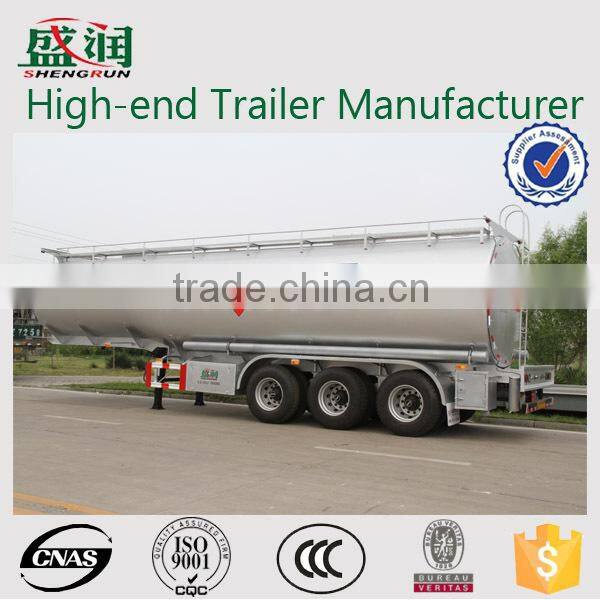

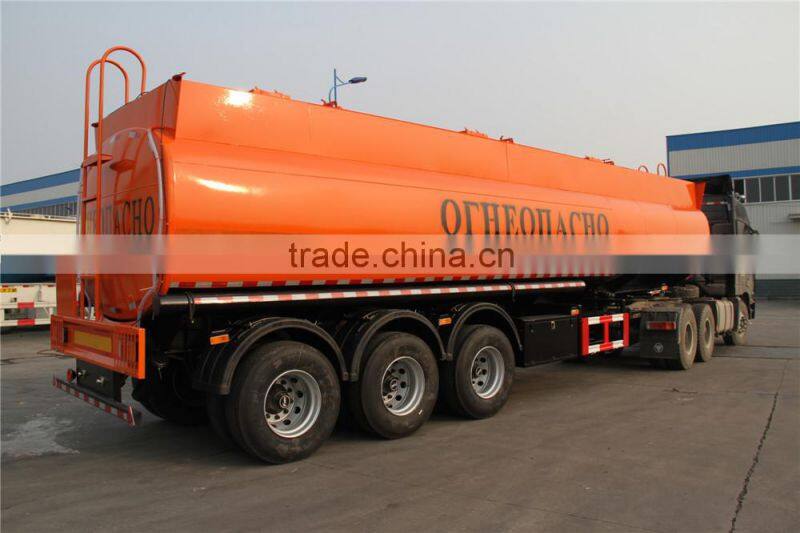

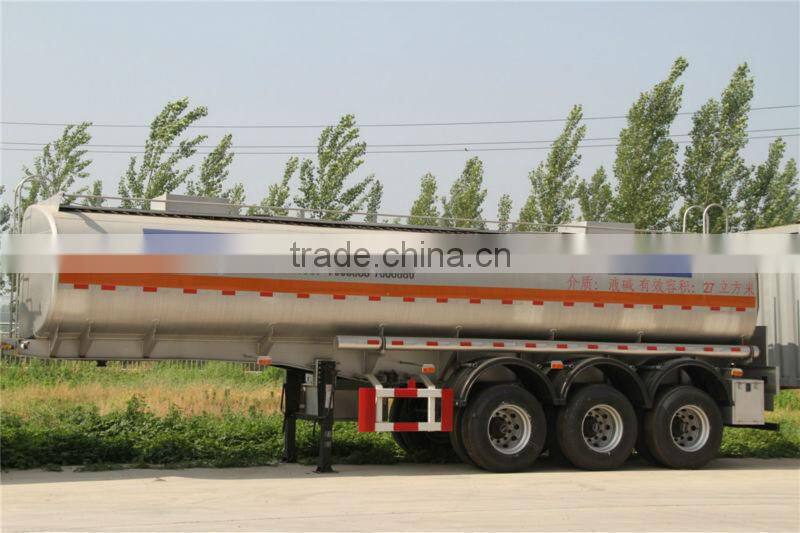

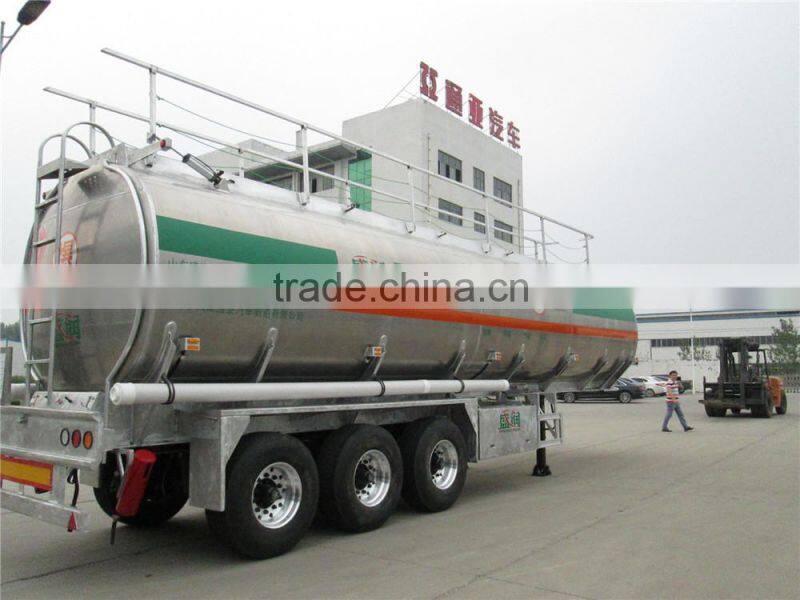

Tri-axle oil fuel tanker semi trailer / fuel tanker semi trailer
Specifications | ||
Main Dimensions | ||
Manufacturer |
Shandong Shengrun Automoblie Co., Ltd |
|
Model Nunber |
SKW9400GYYA/SKW9402GYYA/SKW9401GLY /SKW9402GLY/SKW9403GLY/SKW9403GYS/ SKW9404GYS/SKW9400FWA/SKW9401GFWA/ SKW9403GRY |
|
Tank Body |
ShapeRound or Square |
|
Tare Weight |
(Semi Trailer)About 8T-12T |
|
Total Volume(m3) |
27m³ -60 m³ |
|
Dimension |
12000mm×2490mm×3990mm ( The exact size depends on the final design.) |
|
End Plate |
5mm or 6mm /Q235 carbon steel |
|
Tanker Body |
5mm or 6mm/ Q235 carbon steel |
|
Compartment |
1 to 9 optional |
|
Manhole Cover |
Carbon steel or Aluminum 500mm(Diameter) |
|
Discharging Valve |
Diameter is 3 or 4 inch (Material: Aluminum) |
|
Discharging Pipe |
3 or 4 inch rubber hose, 2pcs, 6m/each |
|
Cat Walk |
With (Common model or special design) |
|
Chassis | ||
Axle |
2 or 3 axles, 12T/13T/16T, BPW/FUWA/HUAJING brand |
|
BLanding Gear |
JOST (D200T) or China Brand 28Tons |
|
King Pin |
JOST 2.00 or 3.5 inch bolt-in king pin |
|
Suspension |
Mechanical suspension/Germany or America type /Air Suspension |
|
Leaf Spring |
90(W)mm×13(Thickness)mm×10 Layers or 100mm×12mm×12 layers |
|
Pneumatic Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber (TKL brand); Two pieces of 45L air tanks |
|
Rim |
9.00-22.5/8.00-20/8.5-20 China Brand |
|
Tire |
12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
|
Tool box |
1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.) |
|
ABS |
Optional |
|
Painting |
Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats. |
|
Shipping Terms |
By bulk cargo carrier, RORO or 40HQ Containers |
|

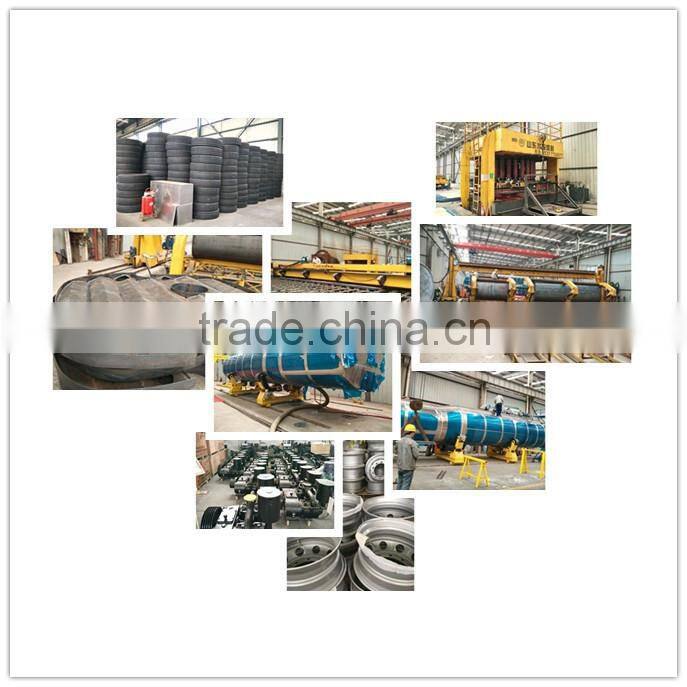

We have top-notch numerical control cutting machine, automatic welding machine, large-size bending machine and board press machine in China, tanker body automatic welding tipper, the greatest entire-car-passing type shot blasting machine in Shandong province, 21m length super spray painting and baking varnish room, Switzerland four-wheel ATD-GPS and 400 sets test equipment which are advanced technology and Hi-Tech equipment.
Various types of products, and provide special trailer

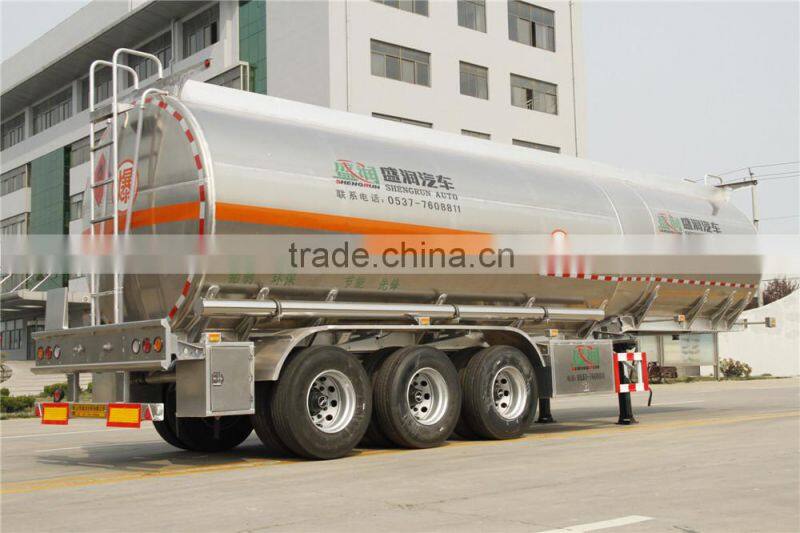

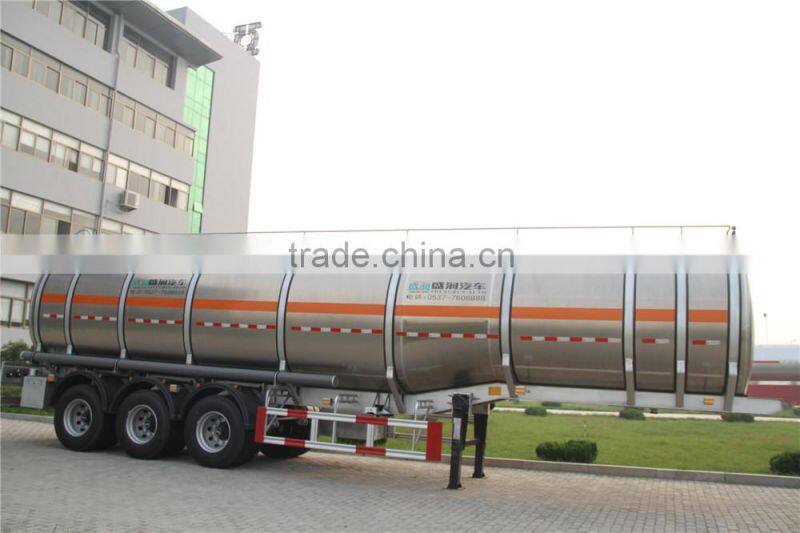

The aluminum trailer/Aluminum tank truck
Aluminum trailer body lighter, stronger, under the condition
of the limit load,can carry more goods.
Aluminum alloy fuel tanks, lighter weight, and oil not easy
to react, environmental protection, safe and efficien.
Shandong Shengrun Automobile Co., Ltd. is listed among appointed enterprises to produce and refit automobile approved by Development and Reform Commission of China(former Economy and Trade Commission of China), the first cooperation enterprise with its products listed in Public Notice on automobile refitting for management.Our company covers an area of 730,000 square meters, total assets 460 million RMB. We have more than 800 workers; including 128 persons with senior technical title.
Advantage of choose us
. Focused on special automobiles' design and production for nearly 10 years.
. Obtained the ISO9001 international quality management system certification.
. Achieved foreign trade qualification granted by Chinese government.
. Manufacturer direct sale,quality guaranteed, low price.
. Europe Emission Standard 2/3.
. Except standard products, also customize products according to your requirements.
Tom Chen
Skype:tomchen026@
Email:tomchen026@
Tele:+86 18366719474
whatsApp:+86 18366719474
wechat:Pingchangxin026
