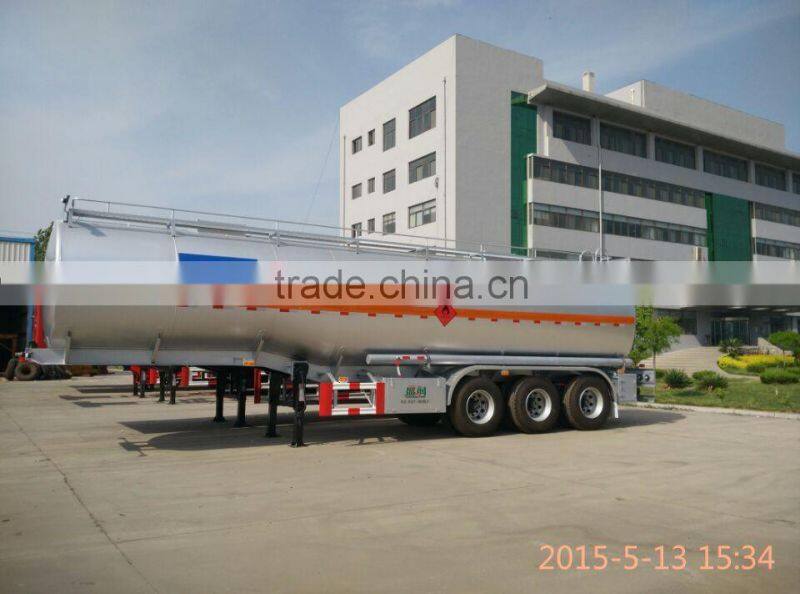

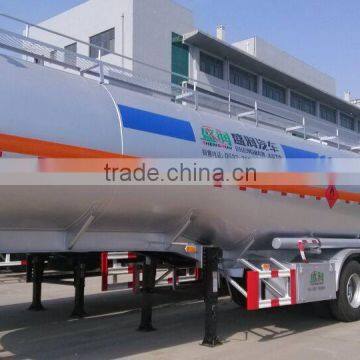

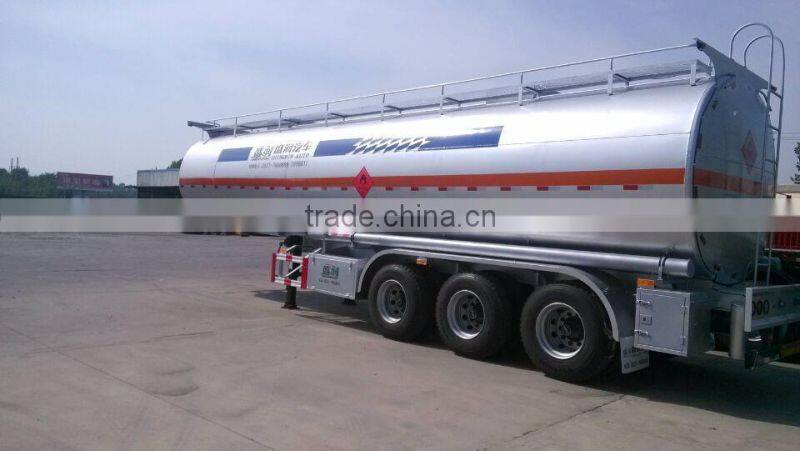

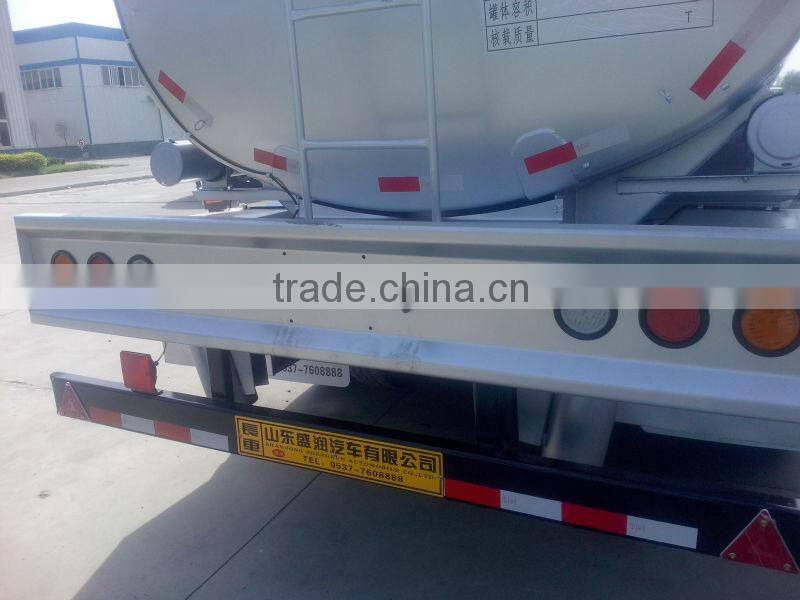

45.000 Litres Diesel Fuel Petrol Oil Tanker Semi Trailer / Truck Semitrailer
45.000 Litres Diesel Fuel Petrol Oil Tanker Semi Trailer / Truck Semitrailer :
Sepcifications of 45.000 Litres Diesel Fuel Petrol Oil Tanker Semi Trailer / Truck Semitrailer :
Specifications |
|
||
Main Dimensions |
|
||
Manufacturer |
Shandong Shengrun Automoblie Co., Ltd |
|
|
Model Nunber |
SKW9400GYYA/SKW9402GYYA/SKW9401GLY /SKW9402GLY/SKW9403GLY/SKW9403GYS/ SKW9404GYS/SKW9400FWA/SKW9401GFWA/ SKW9403GRY |
||
Tank Body |
ShapeRound or Square |
||
Tare Weight |
(Semi Trailer)About 8T-12T |
||
Total Volume(m3) |
25m³ -60 m³ |
||
Dimension |
12000mm×2490mm×3990mm ( The exact size depends on the final design.) |
||
End Plate |
6mm/stainless steel |
|
|
Tanker Body |
5mm/ stainless steel |
|
|
Compartment |
1 to 9 optional |
|
|
Manhole Cover |
Aluminum 500mm(Diameter) |
|
|
Discharging Valve |
Diameter is 3 or 4 inch (Material: Aluminum) |
|
|
Discharging Pipe |
3 or 4 inch rubber hose, 2pcs, 6m/each |
|
|

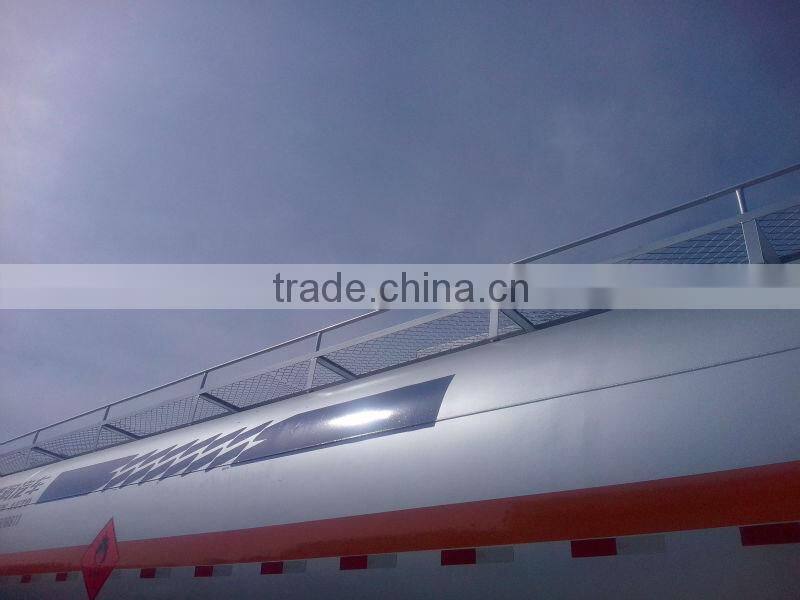

Cat Walk |
With (Common model or special design) |
|
|

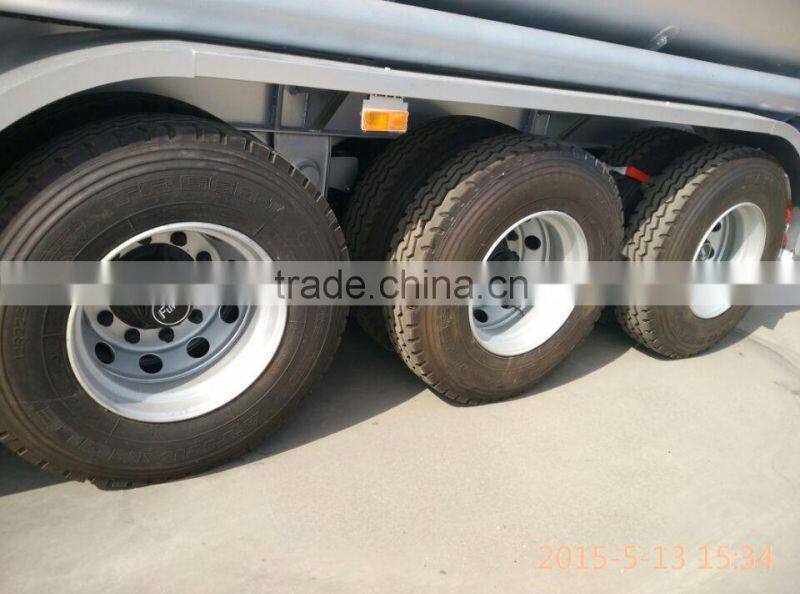

Chassis |
|
||
Axle |
2 or 3 axles, 12T/13T/16T, BPW/FUWA/HUAJING brand |
|
|
BLanding Gear |
JOST (D200T) or China Brand 28Tons |
|
|
King Pin |
JOST 2.00 or 3.5 inch bolt-in king pin |
|
|
Suspension |
Mechanical suspension/Germany or America type /Air Suspension |
|
|
Leaf Spring |
90(W)mm×13(Thickness)mm×10 Layers or 100mm×12mm×12 layers |
|
|
Pneumatic Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber (TKL brand); Two pieces of 45L air tanks |
|
|
Rim |
9.00-22.5/8.00-20/8.5-20 China Brand |
|
|
Tire |
12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
|
|

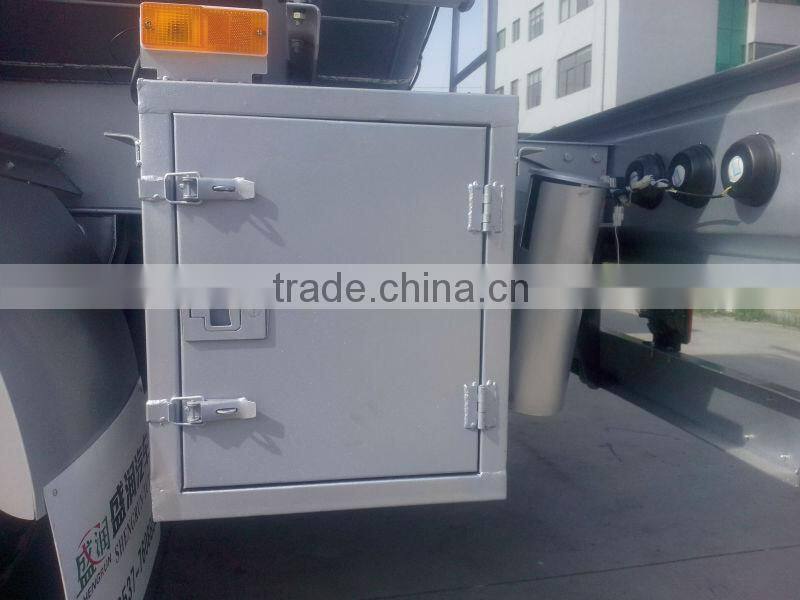

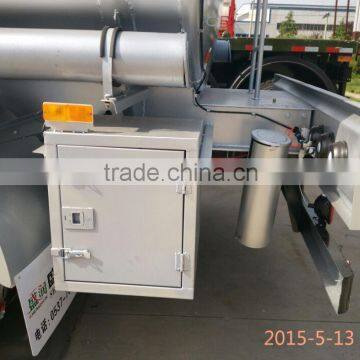

Tool box |
1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.) |
|
|
ABS |
Optional |
|
|
Painting |
Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats. |
|
|
Shipping Terms |
By bulk cargo carrier, RORO or 40HQ Containers |
|
|

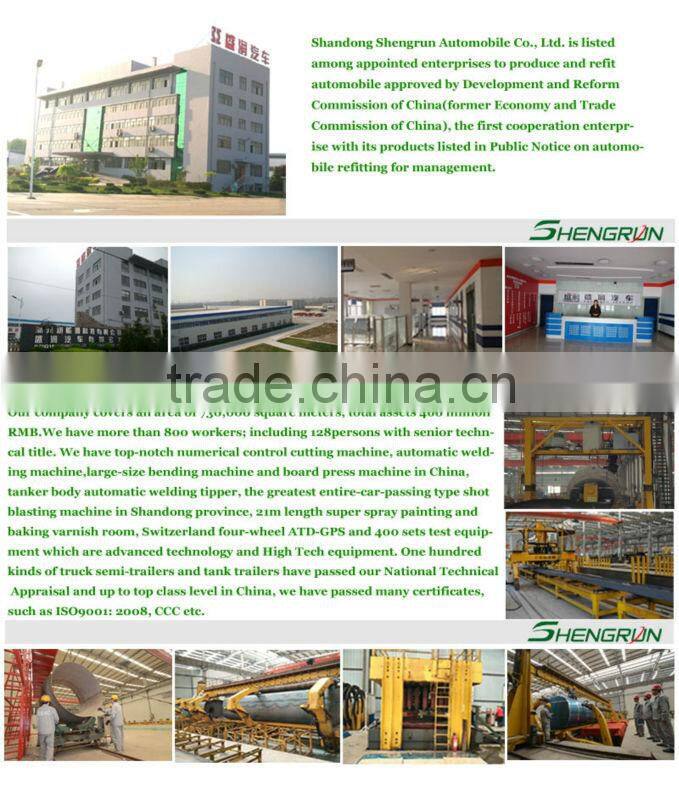

Shengrun main products are:
-tank semi-trailer, LPG,lNG,CNG trailer,Fuel tanker trailer(carbon steel ,stainless steel,aluminium alloy)
-bulk cement tank semi-trailer,
-aluminium alloy tanker trailer,
-container (flatbed)transport trailer,
-equipment trailer (low bed trailer),
-rear/side dump semi-trailer,
-timber (wood) transport semi- trailer,
-car transport trailer, low loader,
-hydraulic modular trailer,
-3 lines 6 axles,
-multi-axle hydraulic low bed,
- blade transport trailer, dump truck,
-tipper truck, tractor camion etc.
Packing:without
Shipping :1. By 40HQ container or container frame
2. By bulk carrier or RORO
Q1.What is the Warranty for the trailers?
Our guarantee term is 36 months. We will send the engineer to mend the semi trailer for free within the 36 months.
Q2.What is your payment terms?
30% contract value as the deposit by T/T, 70% contract value should be paid before delivery time after the products be finished and inspected.
Q3.What is the term of delivery?
Within 15 workdays after 30% contractor value payment
More details about 45.000 Litres Diesel Fuel Petrol Oil Tanker Semi Trailer / Truck Semitrailer ,Pls feel free to contact me!
Cindy
Sales Manager
Shangdong Shengrun Automobile Co., Ltd.
Add:No.1 Tongya Road ,Quanpu Industrial Park,Liangshan County,Jining ,Shandong.
Website: www.shengruntruck.en.china.cn
Tel:0086-537-7608808
Fax:0086-537-7608889
Viber/Wechat/Mobile No.:0086-15853702799/18660765197
