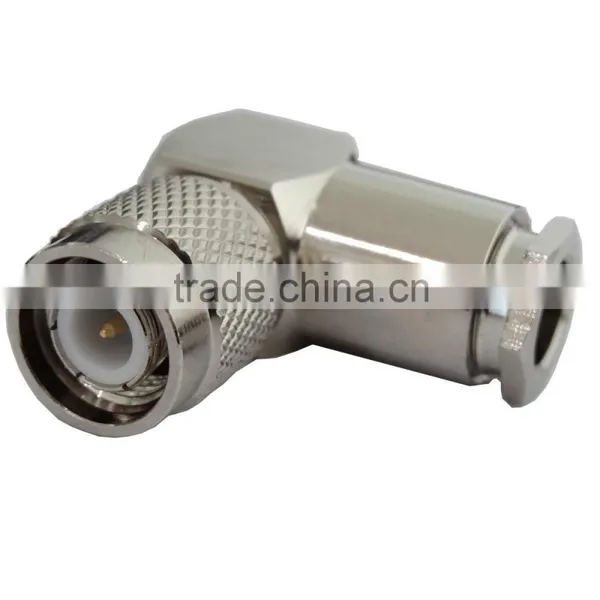

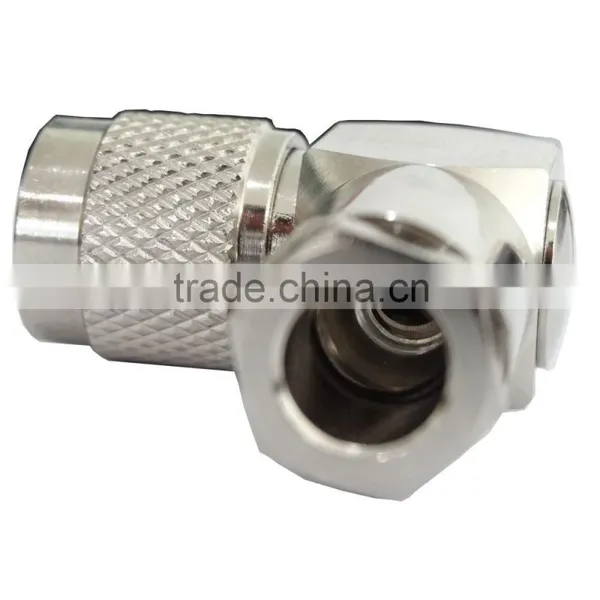

RF TNC Right Angle Male Connector for LMR300 Cable

Name: RF TNC Right Angle Male Connector for LMR300 Cable
Brand: ZK TNC plug connector
SKU: 124899889
Availability: InStock

US$ 1.14 - 1.25 MOQ: 1 Piece

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

ZK TNC plug connector

Model Number:

TNC-JWTL300 TNC plug connector

Jiangsu Zhengkai Electronics Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI SHENZHEN QINGDAO NINGBO GUANGDONG

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name ZK TNC plug connector

Model Number TNC-JWTL300 TNC plug connector

Type TNC

Application RF

Gender Male

Product Description

Technical Parameters

Electrical Requirements
Impedance	50Ω
Frequency	DC-11GHz
Withstand Voltage(at Sea Level)	1500V,50Hz
Working Voltage(at Sea Level)	500V,50Hz
Insulation Resistance	≥5000MΩ
Sheltered Effectiveness	straight60 dB.3GHz
Contact Resistance	Center Conductor		≤1.5mΩ
	Outer Conductor		≤1mΩ
Mechanical Requirements
Connection Torque	Normal Torque			46-69N.cm
	Endurance Distance			1.7 N.m
Center Conductor Retention	0.57N(standard)
Outer Conductor Retention	2.25N
Vibration	150m/S²,10-2000Hz,15g_nAcceleration
Impact	750m/ S²,STW,11ms,75g_nAcceleration
Durability	500
Environmental Requirements
Temp.Range	-55°C - +155°C
Salt Spray	48h spray
Material
Body	Brass
Center Conductor	Plug	Brass
	Jack	Phosphor Bronze
Outer Conductor	Brass
Crimp Tube	Brass/ Red Copper
Other Metal	Brass
Insulator	PTFE
Sealing Ring	Silicone Rubber
Surface Treatment
Body	Nickle
Center Conductor	Gold
Outer Conductor	Nickle
Other Metal	Nickle
Crimp Tube	Nickle
