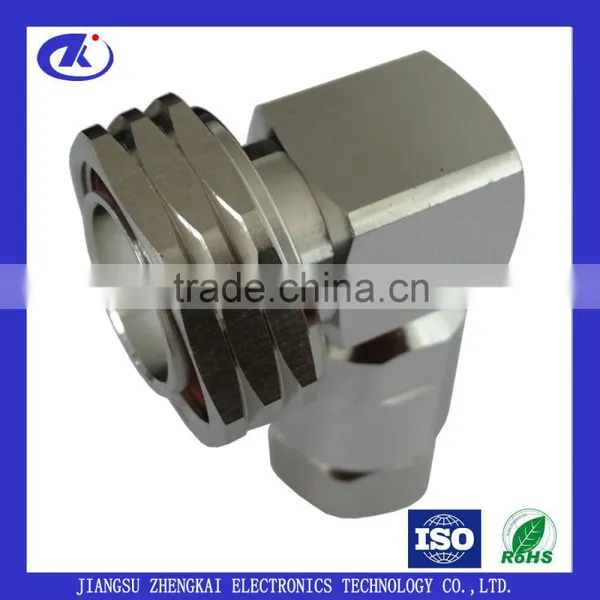

1/2 DIN(7/16) RF Coaxial Plug(male) Right Angle Connector
US$ 2 - 2.2
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
ZK RF coaxial connector
Model Number:
7/16-JW1/2-A RF coaxial connector
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI SHENZHEN GUANGDONG NINGBO QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
N Male Plug for 1 1/4" Coaxial CABLE ConnectorUS$ 11.6 - 11.98MOQ: 1 Piece -
DIN Female Solder and Straight Type for 1 5/8"flexible CableUS$ 10.8 - 11.88MOQ: 1 Piece
-
N MALE CONNECTOR FOR 1/2"SUPERFLEX CABLEUS$ 1.15 - 1.26MOQ: 1 Piece
-
N Plug Straight Connector FOR 1 5/8" CableUS$ 10.85 - 11.94MOQ: 1 Piece
-
N STRAIGHT PLUG FOR 1 1/4" CABLEUS$ 6.79 - 7.47MOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
ZK RF coaxial connector
Model Number
7/16-JW1/2-A RF coaxial connector
Type
DIN
Application
RF
Gender
Male
Product Description
Interface
| According to | IEC60169-4 |
Electrical
| 1 | Characteristic Impedance | 50ohm |
| 2 | Frequency Range | DC-6GHz |
| 3 | VSWR | 1.15 |
| 4 | Dielectric withstanding voltage | ≥2500RMS,50Hz,at sea level |
| 5 | Dielectric Resistance | ≥10000MΩ |
| 6 | Contact Resistance | Outer Contact≤1.0mΩ ;Center Contact≤0.4mΩ |
Mechanical
| 1 | Durability | Mating cycles ≥500 |
Material and plating
|
Description |
Material | Plating |
| 1 | Body | Brass | Tri-alloy |
| 2 | Insulator | PTFE | – |
| 3 | Center conductor | Phosphor bronze | Ag |
Environmental
| 1 | Temperature Range | -40℃~+85℃ |
1.CNC machines ,advanced test equipment
2.All products are suit for ROHS.
3.ISO14001 certificate,ISO9001 certificate
Metal Workshop
Assembly Workshop
Assembly workshop and professional team;
Test Area
Quality: We use the best quality components to ensure the standard of our
product range is of the highest caliber
All products we sold out are strictly selected and tested by our QC department
Packing Area
Certifications
