Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > 4.3-10 Screw Male rf Coaxial Connector for 3/8"Superflex Cable Solder Type

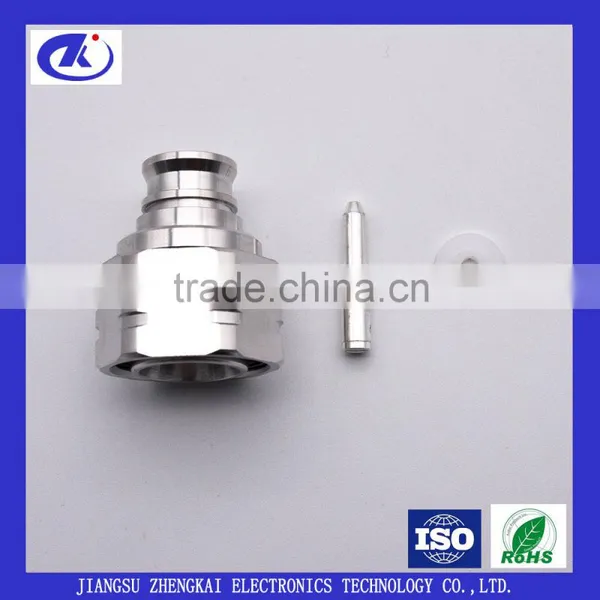

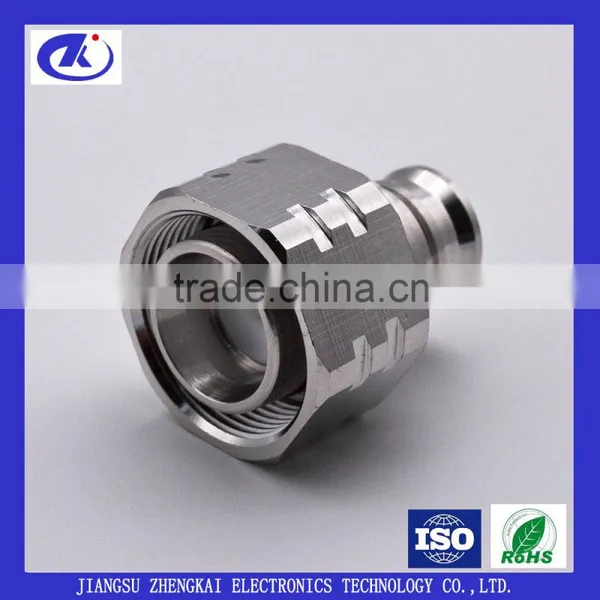

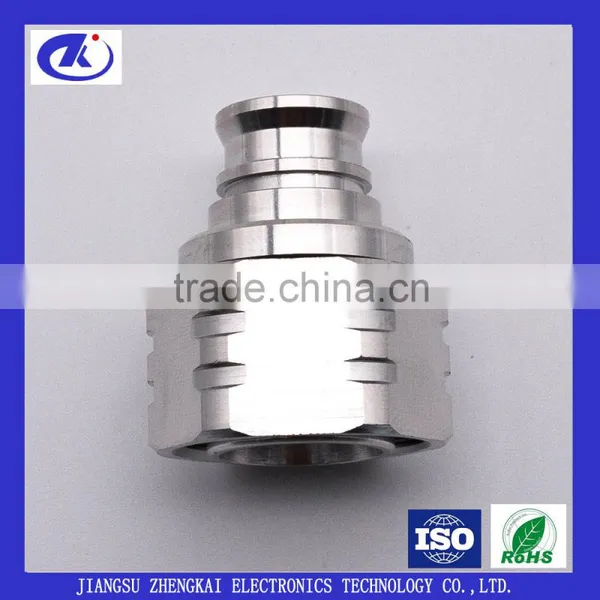

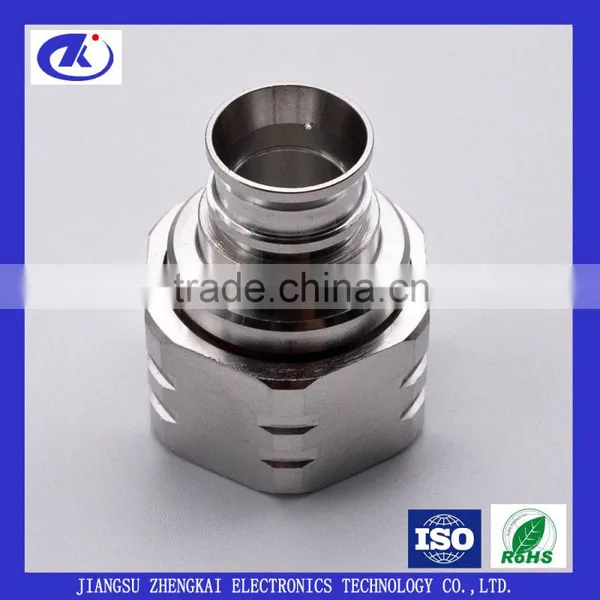

4.3-10 Screw Male rf Coaxial Connector for 3/8"Superflex Cable Solder Type
US$ 2.19 - 2.4
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
ZK 4.3-10 screw male straight RF connector
Model Number:
4.3-10-H-J3/8S 4.3-10 screw male straight RF connector
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI SHENZHEN GUANGDONG NINGBO QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SMA JACK PANEL MOUNT CONNECTOR TAP TERMINALUS$ 1.01 - 1.15MOQ: 1 Piece -
4.3/10 Female Straight Connector for 1/2"feeder Cable(Screw Type)US$ 3.9 - 4.05MOQ: 1 Piece
-
4.3/10 Female Straight Connector for 1/2"Super Flexible Cable(Screw Type )US$ 3.9 - 4.05MOQ: 1 Piece
-
4.3/10 Female Straight Connector for 7/8"Feeder Cable(Screw Type)US$ 5.15 - 5.8MOQ: 1 Piece
-
RF N Male Straight Connector for 1 5/8" Feeder CableUS$ 13.48 - 13.95MOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
ZK 4.3-10 screw male straight RF connector
Model Number
4.3-10-H-J3/8S 4.3-10 screw male straight RF connector
Type
Other, 4.3-10
Application
RF
Gender
Male
Product Description
Interface
| According to | IEC60169-54 |
Electrical
| 1 | Characteristic Impedance | 50ohm |
| 2 | Frequency Range | DC-6GHz |
| 3 | VSWR | (DC-6GHz)≤1.1 |
| 4 | Dielectric withstanding voltage | ≥2000RMS,50Hz,at sea level |
| 5 | Dielectric Resistance | ≥5000MΩ |
| 6 | Contact Resistance | Outer Contact≤1.0mΩ ;Center Contact≤1.0mΩ |
| 7 | Insert Loss | ≤0.1dB |
| 8 | PIM ( @2-tonex20w) | ≤-117dBm |
Mechanical
| 1 | Durability | Mating cycles ≥500 |
Material and plating
|
Description |
Material | Plating |
| 1 | Body | Brass | Tri-alloy |
| 2 | Insulator | PTFE | – |
| 3 | Center conductor | Brass | Ag |
| 4 | Other | Brass | Ni |
Environmental
| 1 | Temperature Range | -40℃~+85℃ |
| 2 | Watertightness | IP67 |
| 3 | Rosh-compliance | Full ROHS compliance |
| 4 | Salt-fog test | 96h |
1.CNC machines ,advanced test equipment
2.All products are suit for ROHS.
3.ISO14001 certificate,ISO9001 certificate
Metal Workshop
Assembly Workshop
Assembly workshop and professional team;
Test Area
Quality: We use the best quality components to ensure the standard of our
product range is of the highest caliber
All products we sold out are strictly selected and tested by our QC department
Packing Area
Certifications
