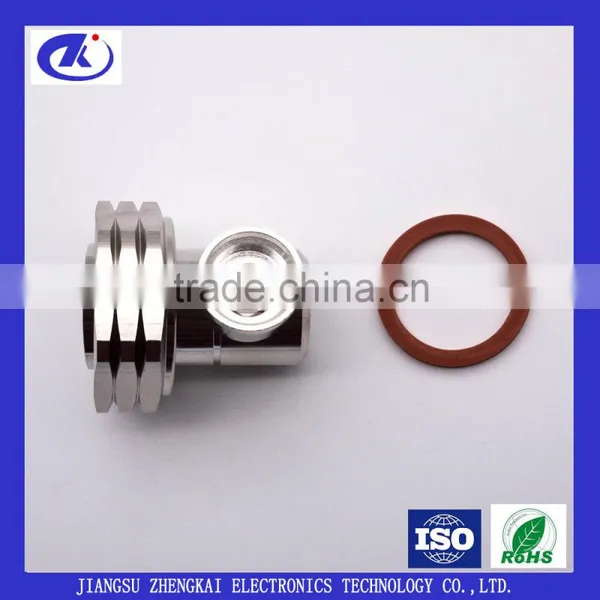

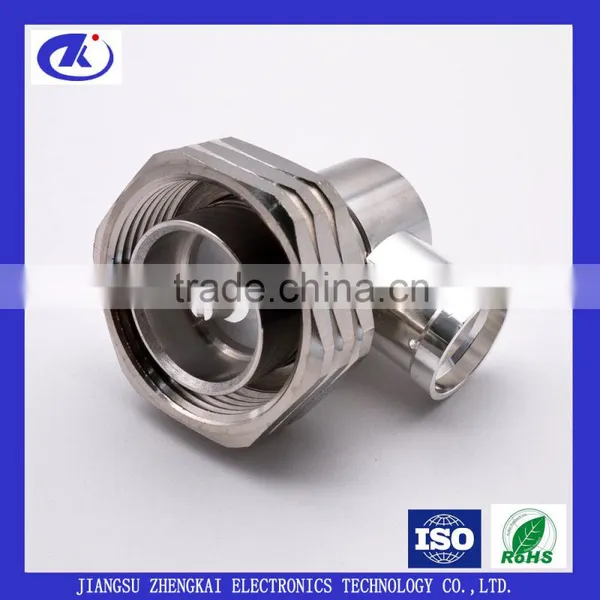

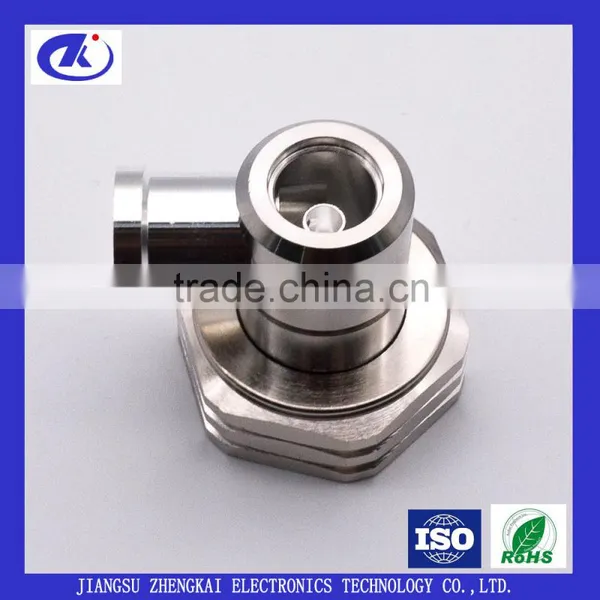

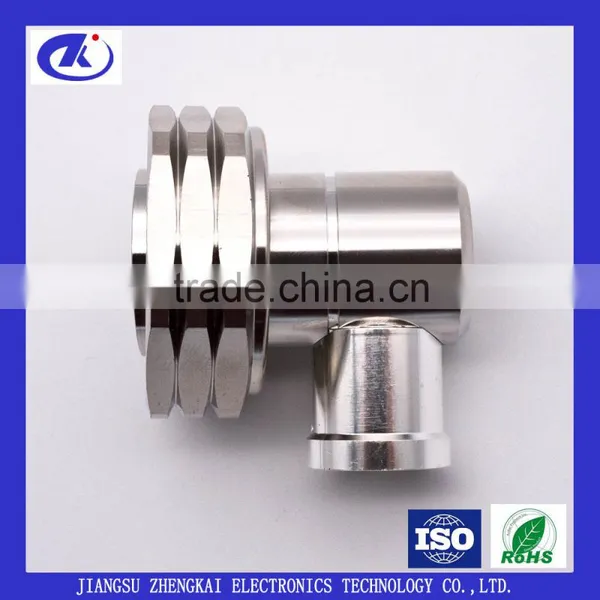

7/16DIN MALE RIGHT ANGLE FOR 1/2"SUPERFLEX CABLE(solder Type)
US$ 2.05 - 2.18
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
ZK RF coaxial connectors
Model Number:
7/16-H-JW1/2S-2 RF coaxial connectors
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI SHENZHEN GUANGDONG NINGBO QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RF 7/16DIN Female Soldering Connector for 1/2'' Superflexible CableUS$ 1.28 - 1.45MOQ: 1 Piece -
RF N Male Connector for Leaky Feeder Cable 7/8"US$ 5.46 - 5.68MOQ: 1 Piece
-
RF N STRAIGHT JACK CONNECTOR FOR 7/8" LEAKY FEEDER CABLEUS$ 5.46 - 5.68MOQ: 1 Piece
-
RF Coaxial N Female Connector for Leaky Feeder 1-1/4" CableUS$ 12.56 - 12.8MOQ: 1 Piece
-
50ohm RF Coaxial SMA Female to SMA Female AdaptorUS$ 0.82 - 0.88MOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
ZK RF coaxial connectors
Model Number
7/16-H-JW1/2S-2 RF coaxial connectors
Type
DIN
Application
RF
Gender
Male
Product Description
Interface
| According to | IEC60169-4 |
Electrical
| 1 | Characteristic Impedance | 50ohm |
| 2 | Frequency Range | DC-3GHz |
| 3 | VSWR | 1.15 |
| 4 | Dielectric withstanding voltage | ≥2500V RMS,50Hz,at sea level |
| 5 | Dielectric Resistance | ≥10000MΩ |
| 6 | Contact Resistance | Outer Contact≤1.5mΩ ;Center Contact≤0.4mΩ |
| 7 | PIM3 | ≤-160dBc |
Mechanical
| 1 | Durability | Mating cycles ≥500 |
Material and plating
|
Description |
Material | Plating |
| 1 | Body | Brass | CuSnZn |
| 2 | Insulator | PTFE | – |
| 3 | Center conductor | Phosphor Bronze | Ag |
| 4 | Other | Brass | Ni |
Environmental
| 1 | Temperature Range | -40℃~+85℃ |
| 2 | Watertightness | IP67 |
| 3 | Rosh-compliance | Full ROHS compliance |
1.CNC machines ,advanced test equipment
2.All products are suit for ROHS.
3.ISO14001 certificate,ISO9001 certificate
Metal Workshop
Assembly Workshop
Assembly workshop and professional team;
Test Area
Quality: We use the best quality components to ensure the standard of our
product range is of the highest caliber
All products we sold out are strictly selected and tested by our QC department
Packing Area
