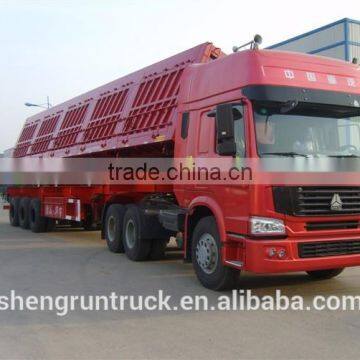

Help CenterU Shape Tipper Semi Trailer for Truck
Related Products
-
U Shape Tipping Dump Semi Trailer for SaleUS$ 15,800 - 22,500MOQ: 1 Unit -
Hyva Hydraulic Lifting Cylinder Tipping Trailer for SaleUS$ 15,800 - 22,500MOQ: 1 Unit
-
HJ Axle End Tipping Truck Trailer for Cargo TransportationUS$ 15,800 - 22,500MOQ: 1 Unit
-
Huajing Axle Tipping Trailer Hydraulic Truck Trailer for SaleUS$ 15,800 - 22,500MOQ: 1 Unit
-
Multi Axle Side Tipping Trailer / Truck Semi Trailer for SaleUS$ 15,800 - 22,500MOQ: 1 Unit
Hydraulic tipping trucks:
- We always adhere to:"By the quality strives for the survival! Service for reputation!"
- What we pursue is a long-term cooperation!
- We always provide timely service to ensure effective!
- You can get our service until the problem is resolved or until get your satisfaction!
Specification of Shandong Tipper U Shape Vehicle Tipping Trailer
| Semi trailer Dimension | 11280*2495*3970mm(Outside Dimension)10500*2300*1700(Inside Dimension) |
| Tare Weight | About 10-15T |
| Total Volume | 37m3 or less than 80tons |
| Side wall thicknes(mm) | 6mm Q235 steel |
| Bottom plate thickness(mm) | 8mm Q235steel |
| Lifting system | Full set of Hyva(FC214-5-07130)Hydraulic Lifting Cylinder |
| Chassis | |
| Main beam | Height:500mm,upon plate is 16mm,middle plate is 8mm(2-in-1 or 3-in-1 plate),down plate is 18mm;Material is Q345B Steel |
| Axle | 13T/16T,FUWA/BPW/Huajing Brand |
| Spring leaf | 90(w)mm*13(thickness)mm*10Layer or 100mm*12mm*12 |
| King pin | Jost brand 2.0 0r 3.5 inch bolts type or welding type |
| Landing Gear | JOST brand C200T or China brand 28Tons (Double speed) |
| Suspension | Mechanical suspension/America Type/Germany Type |
| Rim | 9.00-22.5/8.00-20/8.5-20China Brand |
| Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Various tire brands are available |
| Pneumatic Braking system | WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber,45L air tank |
| ABS | Optional |
| Tool box | One piece,1m*0.5m*0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2coats of final paint |
| Shipping term | Transport by bulk cargo carrier or RORO The trailer size can be designed according to your special requirements.You can choose a 6*4 model truck for use with your dump semi trailer |
Shipping terms of U shape tipper semi trailer for truck
without package, shipping by bulk cargo carrier, RORO or 40HQ container.
Our aftersales service of heavy duty hydraulic side tipping semi trailers for sale
Our warranty of trailer is one year.
so if there is any problem about the quality, please tell us without hesitation.
Our technician will serve for you!
We are sincerely hope to cooperate with you and establish a long term relationship with you.
So we always focus on quality, not price!
Shandong Shengrun Automobile Co., Ltd. is listed among appointed enterprises to produce and refit automobile approved by Development and Reform Commission of China(former Economy and Trade Commission of China), the first cooperation enterprise with its products listed in Public Notice on automobile refitting for management.
We are the full-size Modified Truck enterprise which integrates the design of product, scientific research developing, production and sale together, possessing subsidiary companies of automobile production, automobile trade and automobile fittings production, etc. Our leading products include "Shengrun" brand semi-trailers, tipper, fuel tanker, particle material tanker, bulk cement tanker, concrete mixer truck, wrecker trucks, LNG, CNG, and other special vehicles.
Our company covers an area of 730,000 square meters, total assets 460 million RMB. We have more than 800 workers; including 128 persons with senior technical title. We have top-notch numerical control cutting machine, automatic welding machine, large-size bending machine and board press machine in China, tanker body automatic welding tipper, the greatest entire-car-passing type shot blasting machine in Shandong province, 21m length super spray painting and baking varnish room, Switzerland four-wheel ATD-GPS and 400 sets test equipment which are advanced technology and Hi-Tech equipment. One hundred kinds of truck semi-trailers and tank trailers have passed our National Technical Appraisal and up to top class level in China, we have passed many certificates, such as ISO9001: 2008, CCC etc.
Persisting in "the quality will cast on the brand, the good faith building future" as the enterprise objective, the company's staff devote to the promotion of enterprise core competitive power, pursuing the sustainable development, the making strong trend brand, in order to serve all the clients.
Our company:
Our products:
FAQ of U shape 50 ton 3 axles rear dump trailer for sale
1. How do you transport the semi trailers?
We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension, tyre, are purchased centralized by our group, every node will be inspected strictly. Moreover, advanced equipment rather than only worker is been applied
during the whole producing process to ensure the welding quality.
If you have any doubts about our trailer, please contact us freeely!
