Home > Transportation > Trailer > Truck Trailer > 2015 New Hydraulic Typer Dump Tipper Tri-axle Cargo Semi Trailer in Africa at Low Price

2015 New Hydraulic Typer Dump Tipper Tri-axle Cargo Semi Trailer in Africa at Low Price

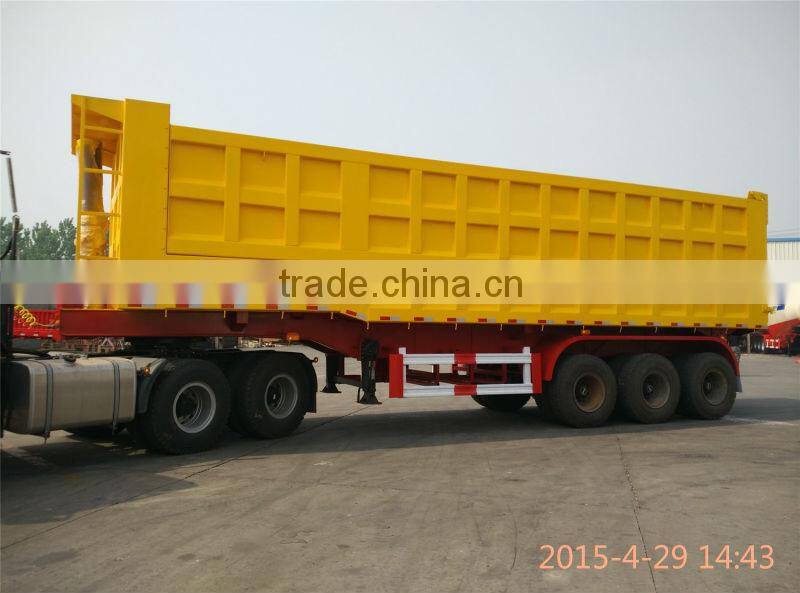

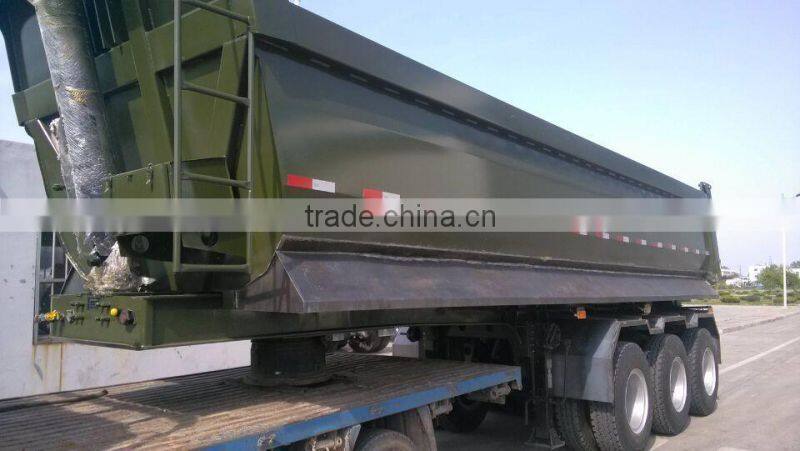

2015 New Hydraulic Typer Dump Tipper Tri-axle Cargo Semi Trailer in Africa at Low Price photo-1

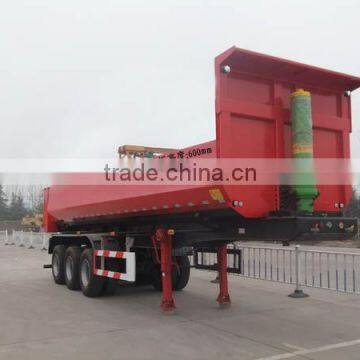

2015 New Hydraulic Typer Dump Tipper Tri-axle Cargo Semi Trailer in Africa at Low Price photo-2
2015 New Hydraulic Typer Dump Tipper Tri-axle Cargo Semi Trailer in Africa at Low Price photo-3

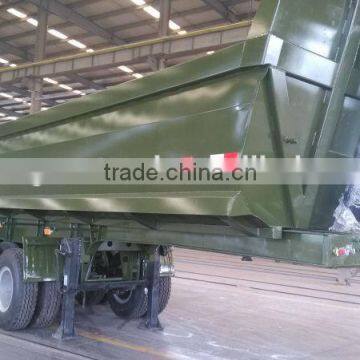

2015 New Hydraulic Typer Dump Tipper Tri-axle Cargo Semi Trailer in Africa at Low Price photo-4
US$ 15,800 - 22,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Semi-Trailer
Material:
Steel
Certification:
Other, ccc iso9001
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin or Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Type Semi-Trailer
Material Steel
Certification Other, ccc iso9001
Size 11000*2500*3000 mm
OEM No. 370832228003534
Max Payload 40T
Place of Origin Shandong, China
Brand Name SHENGRUN
Model Number SKW9404ZZX

2015 new hydraulic typer dump tipper tri-axle cargo semi trailer in Africa at low price  :



2015 new hydraulic typer dump tipper tri-axle cargo semi trailer in Africa at low price



Product Description

Specification of    2015 new hydraulic typer dump tipper tri-axle cargo semi trailer in Africa at low price  :




2015 new hydraulic typer dump tipper tri-axle cargo semi trailer in Africa at low price


Specifications

Manufacturer

Shandong Shengrun Automoblie Co., Ltd

Model Nunber

SKW9404ZZX/SKW9405ZZX/SKW9401ZZX/SKW9402ZZX/SKW9401ZZXP

Main Dimension

Dimension

11280*2500*3972mm(outside)  10330*2330*1700mm (work space )



Tare weight

About 15600KGS

Total Volume(m3)

37 m³ or less than 80tons

Side wall thickness(mm)

3mm-6mm Q235 steel

Bottom plate thickness(mm)

5mm-8mm /Q235 steel or can be optional

Lifting system

Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder

Chassis

Main Beams

Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel

Axle

3 axles, 13T/16T, FUWA/BPW/Huajing Brand

Landing Gear

JOST (D200T)or China Brand 28Tons

King Pin

JOST 2.00 or 3.5 inch bolt-in king pin or Welding type

Suspension

Mechanical suspension (Germany Type or America Type) or Air suspension(China brand or

BPW brand)

Leaf Spring

90(W)mm*13(Thickness)mm*10 Layer

Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 45L air tanks

Rim

9.00-22.5/8.00-20/8.5-20 China Brand

Tire

12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional

ABS

Optional

Valve

WABCO valve

Light

LED light (Special for export market)

Voltage

24V

Receptacle

7 ways (7 wire harness)

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime,

2 coats of final paint

Accessories

One standard tool box

Shipping Terms

By Bulk Cargo or roro, the trailer size can be design according to your special requirement ,

the tractor truck can be choose 6*4 model .







2015 new hydraulic typer dump tipper tri-axle cargo semi trailer in Africa at low price2015 new hydraulic typer dump tipper tri-axle cargo semi trailer in Africa at low price2015 new hydraulic typer dump tipper tri-axle cargo semi trailer in Africa at low price





Packaging & Shipping

 shipping terms of    2015 new hydraulic typer dump tipper tri-axle cargo semi trailer in Africa at low price  :



     By bulk cargo carrier,RORO or 40HQ container

2015 new hydraulic typer dump tipper tri-axle cargo semi trailer in Africa at low price

2015 new hydraulic typer dump tipper tri-axle cargo semi trailer in Africa at low price





Our Services

 Our aftersales service of   2015 new hydraulic typer dump tipper tri-axle cargo semi trailer in Africa at low price  :




  • We always adhere to:"By the quality strives for the survival! Service for reputation!"
  • What we pursue is a long-term cooperation!
  • We always provide timely service to ensure effective!
  • You can get our service until the problem is resolved or until get your satisfaction!

 Our warranty of trailer is one year.

so if there is any problem about the quality, please tell us without hesitation.

Our technician will serve for you!

We are sincerely hope to cooperate with you and establish a long term relationship with you.

So we always focus on quality, not price!





Company Information





Shangdong Shengrun Automobile Co., Ltd. is listed among appointed enterprises to produce and refit automobile approved by Development and Reform Commission of China(former Economy and Trade Commission of China), the first cooperation enterprise with its products listed in Public Notice on automobile refitting for management.

We are the full-size Modified Truck enterprise which integrates the design of product, scientific research developing, production and sale together, possessing subsidiary companies of automobile production, automobile trade and automobile fittings production, etc. Our leading products include "Shengrun" brand semi-trailers, tipper, fuel tanker, particle material tanker, bulk cement tanker, concrete mixer truck, wrecker trucks, LNG, CNG, and other special vehicles.

Our company covers an area of 730,000 square meters, total assets 460 million RMB. We have more than 800 workers; including 128 persons with senior technical title. We have top-notch numerical control cutting machine, automatic welding machine, large-size bending machine and board press machine in China, tanker body automatic welding tipper, the greatest entire-car-passing type shot blasting machine in Shandong province, 21m length super spray painting and baking varnish room, Switzerland four-wheel ATD-GPS and 400 sets test equipment which are advanced technology and Hi-Tech equipment. One hundred kinds of truck semi-trailers and tank trailers have passed our National Technical Appraisal and up to top class level in China, we have passed many certificates, such as ISO9001: 2008, CCC etc.

Persisting in "the quality will cast on the brand, the good faith building future" as the enterprise objective, the company's staff devote to the promotion of enterprise core competitive power, pursuing the sustainable development, the making strong trend brand, in order to serve all the clients.



 Our company:

2015 new hydraulic typer dump tipper tri-axle cargo semi trailer in Africa at low price



 Our equipment:

2015 new hydraulic typer dump tipper tri-axle cargo semi trailer in Africa at low price



Our warehouse:

2015 new hydraulic typer dump tipper tri-axle cargo semi trailer in Africa at low price



FAQ

  FAQ of    2015 new hydraulic typer dump tipper tri-axle cargo semi trailer in Africa at low price  :



 1. How do you transport the semi trailers?

We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.

2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!

3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension, tyre, are purchased centralized by our group, every node will be inspected strictly. Moreover, advanced equipment rather than only worker is been applied

during the whole producing process to ensure the welding quality.













Contact us



Any question can call me or e-mail me directly.



Tom Chen

Skype:tomchen026@

Email:tomchen026@

Tele:+86 18366719474

whatsApp:+86 18366719474

wechat:Pingchangxin026
