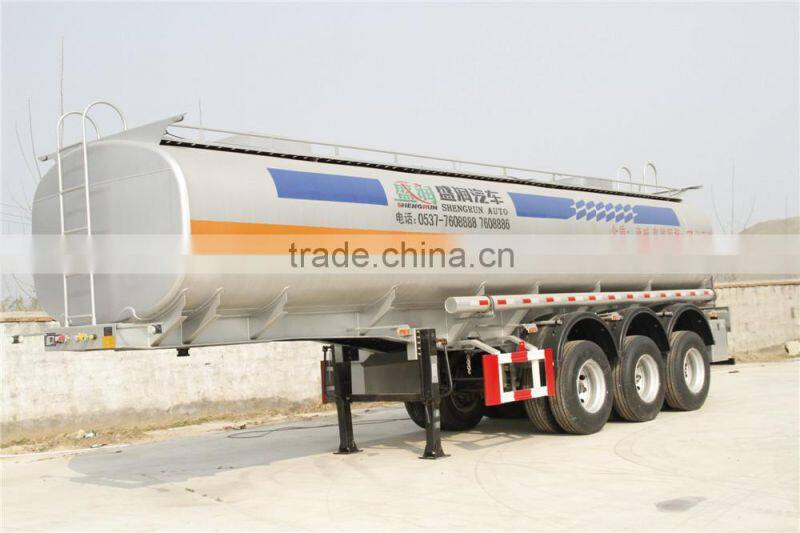

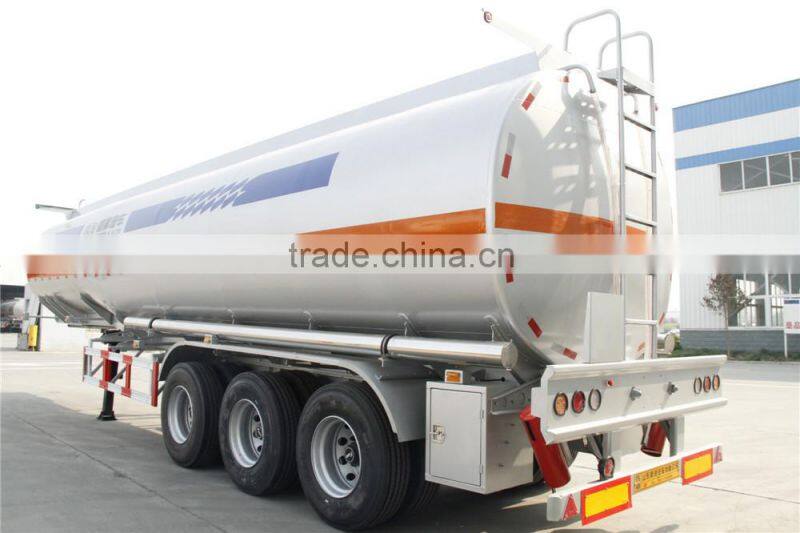

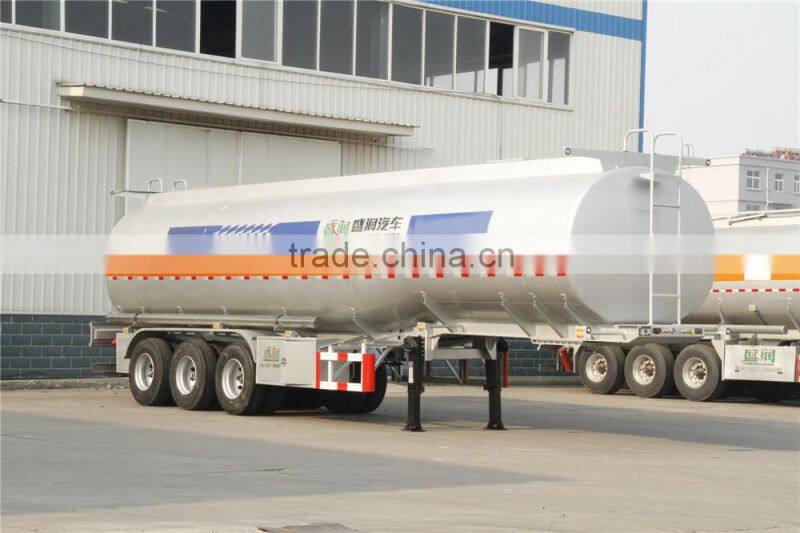

Shengrun Brand 3 Axles Fuel Tanker Trailer For Sale

Specifications

Main Dimensions

Manufacturer

Shandong Shengrun Automoblie Co., Ltd

Model Nunber

SKW9400GYYA/SKW9402GYYA/SKW9401GLY/SKW9402GLY/SKW9403GLY

/SKW9403GYS/SKW9404GYS/SKW9400FWA/SKW9401GFWA/SKW9403GRY

Tank Body

ShapeRound or Square

Tare Weight

(Semi Trailer)About 8T-12T

Total Volume(m3)

25m³ -60 m³

Dimension

12000mm×2490mm×3990mm ( The exact size depends on the final design.)

End Plate

5mm or 6mm /Q235 carbon steel

Tanker Body

5mm or 6mm/ Q235 carbon steel

Compartment

1 to 9 optional

Manhole Cover

Carbon steel or Aluminum 500mm(Diameter)

Discharging Valve

Diameter is 3 or 4 inch (Material: Aluminum)

Discharging Pipe

3 or 4 inch rubber hose, 2pcs, 6m/each

Cat Walk

With (Common model or special design)

Chassis

Axle

2 or 3 axles, 12T/13T/16T, BPW/FUWA/HUAJING brand

BLanding Gear

JOST or China Brand 28Tons

King Pin

JOST 2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension/Germany or America type /Air Suspension

Leaf Spring

90(W)mm×13(Thickness)mm×10 Layers or 100mm×12mm×12 layers

Pneumatic Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber (TKL brand); Two pieces of 45L air tanks

Rim

9.00-22.5/8.00-20/8.5-20 China Brand

Tire

12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional

Tool box

1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.)

ABS

Optional

Painting

Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

Shipping Terms

By bulk cargo carrier, RORO or 40HQ Containers
