Help CenterCompressed Air Oil Water Separator
Related Products
Specifications
compact, unique designUltra-high efficiency
easily for installation
removing high capacity of water & oil
precision: 5um

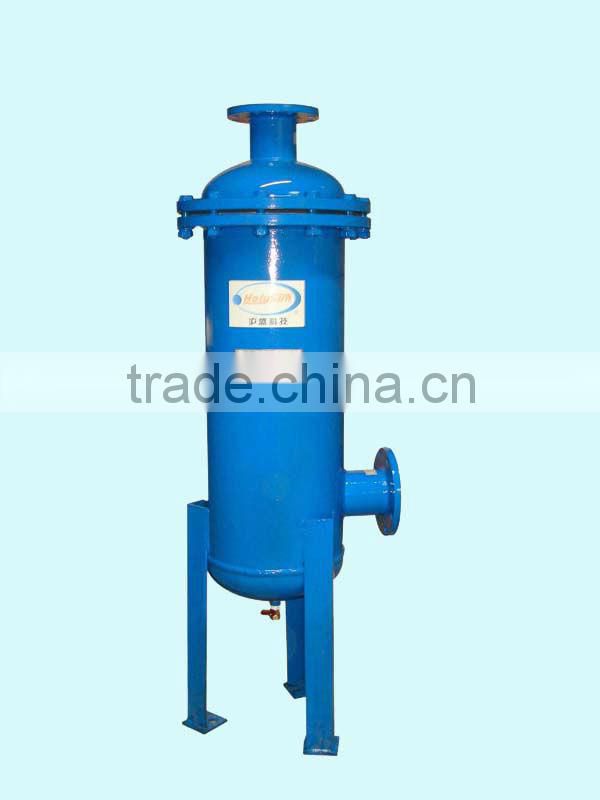

Compressed Air Oil Water Separator:
Work condition and technical data:
Inlet pressure: 0.4-1.0MPa
Inlet temperature : 5°C-65°C
Initial pressure drop :≤0.005MPa
Filtration aperture:5μm
Water removal rate:≥99%
Outlet air oil content:≤10ppm
HMS-006 Technical Data:
Model: HMS-006
Capacity(Nm³/min):6.5
Air connection :ZG1½"
Draining connection: ZG½"
Net weight(kg) :48
Dimensions(mm): 245*133*571
Model,Size&Technical Data:
Product introduction:
Compressed air oil/water separator is a new product developed by HOLYSUN, who absorbs and assimilates foreign advanced technology and construction. It's internal is made of steel net foam and the housing is made of steel too. 1.0Mpa pressure in general. HSD series compressed air oil/water separator adopts direct head off, inertial hit and Brown diffusion and condenser. It can remove dust, water and oil efficiently from the compressed air. And also can remove high capacity of water and oil can be used widely .
Company profile:
Shanghai HOLYSUN Machinery Technology Co.,Ltd.Established in 1993,is an integrated enterprise which is specialized in compressed air purification equipment, Holysun integrates scientific research,manufacture,sales and service.We’ve holding with technology innovation and processional spirit persistently,meanwhile taking the advanced designing concept and exquisite techniques from USA. We’ve passed ISO 9001:2008 Quality Authentication &Manufacturing license etc. Successfully promoted high quality air treatment system to our customers,set-up the efficient before & after service as well.
Our company accumulated production and sales experience of compressed air treatment for a long-term year,integrating the advanced technology from abroad with our practical conditions,we designed & manufactured HOLYSUN brand HSD series Refrigerated Air Dryer,Absorbing Air Dryer,After Cooler,Air chiller Set,Industry using Water Cooler,HF series High-efficient precision-filter (home made filter housing, Hankison element)etc.Totally 13 series,300sorts of products which are widely used in electrical,metallurgy,electron,mechanism,petroleum,chemical industry,auto industry,textile industry,chemical fiber stuff,air treatment, cigarette, biology,medicine,daily chemical industry and so on.Our company has always been keeping ahead on this line.
The HOLYSUN’s headquarter is in Shanghai,meanwhile has offices among Beijing,Guangzhou,Jinan,Shenyang,Zhengzhou,Wuhan, Chengdu and Wu-xi which responsible for before & after-sales technology consultation,business negotiation as well as maintenance service,perfect sales & service network assuring the equipment’s running smoothly year by year.
HOLYSUN Machinery ,Sino-America technology,the global leader in compressed air treatment.
