Specifications
Ultra-micro fiber3 grades purge:centrifugal.pre-filter&ultra-efficiency filter
Remove oil,water &dust
Precision:0.1um
Compressed Air High Efficiency Oil Removal
Product Introduction:
The filter material adopts ultra-micro fiber,3 grades of centrifugal,pre-filter & ultra-efficiency filter.It can remove oil,water and dust more thoroughly so as to gain more cleaning compressed air.Precision to be 0.1μm,oil content less than 0.1mg/m³.
Work Condition and Technical Data:
Inlet pressure: 0.4-1.0MPa
Inlet temperature : 5°C~65°C
Initial pressure drop :≤0.007MPa
Filtration aperture:5μm
Water removal rate:≥99%
Outlet air oil content:≤0.01ppm
HMR-020 Technical Data:
Model:HMR-020
Capacity(Nm3/min):20
Air connection:DN80
Draining connection:ZG½“
Dimensions(mm):425*273*1555

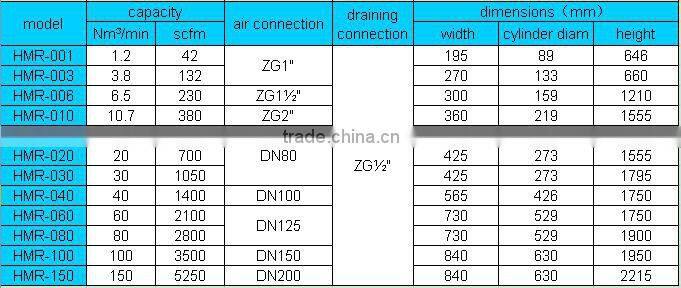

Model,Size&Technical Data:
Company profile:
Shanghai HOLYSUN Machinery Technology Co.,Ltd.Established in 1993,is an integrated enterprise which is specialized in compressed air purification equipment, Holysun integrates scientific research,manufacture,sales and service.We’ve holding with technology innovation and processional spirit persistently,meanwhile taking the advanced designing concept and exquisite techniques from USA. We’ve passed ISO 9001:2008 Quality Authentication &Manufacturing license etc. Successfully promoted high quality air treatment system to our customers,set-up the efficient before & after service as well.
Our company accumulated production and sales experience of compressed air treatment for a long-term year,integrating the advanced technology from abroad with our practical conditions,we designed & manufactured HOLYSUN brand HSD series Refrigerated Air Dryer,Absorbing Air Dryer,After Cooler,Air chiller Set,Industry using Water Cooler,HF series High-efficient precision-filter (home made filter housing, Hankison element)etc.Totally 13 series,300sorts of products which are widely used in electrical,metallurgy,electron,mechanism,petroleum,chemical industry,auto industry,textile industry,chemical fiber stuff,air treatment, cigarette, biology,medicine,daily chemical industry and so on.Our company has always been keeping ahead on this line.
The HOLYSUN’s headquarter is in Shanghai,meanwhile has offices among Beijing,Guangzhou,Jinan,Shenyang,Zhengzhou,Wuhan, Chengdu and Wu-xi which responsible for before & after-sales technology consultation,business negotiation as well as maintenance service,perfect sales & service network assuring the equipment’s running smoothly year by year.
HOLYSUN Machinery ,Sino-America technology,the global leader in compressed air treatment.
