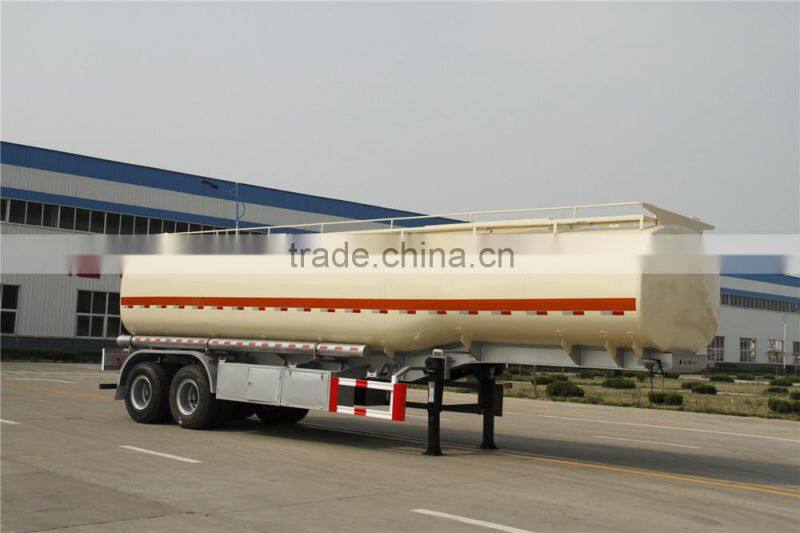

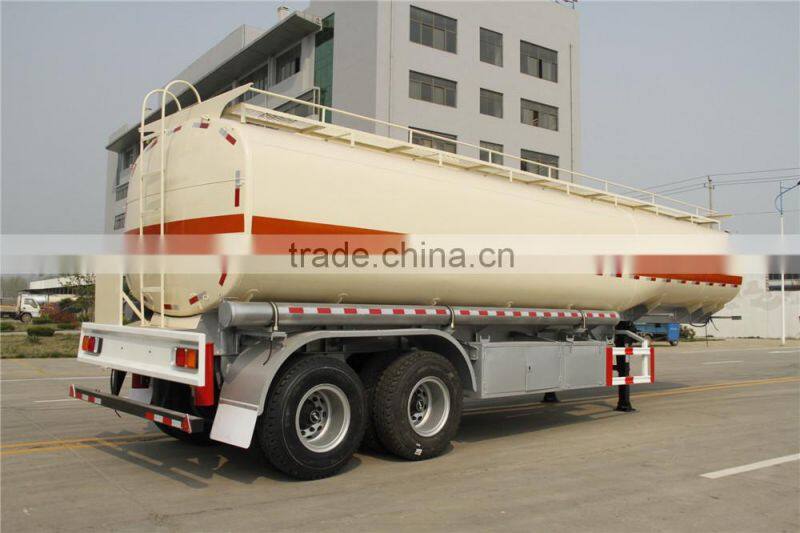

2/3 Axle semi trailer tank trailer for water and fuel / crude oil / chemical / asphalt / bitumen / alcohol / Diesel:
- We always adhere to:"By the quality strives for the survival! Service for reputation!"
- What we pursue is a long-term cooperation!
- We always provide timely service to ensure effective!
- You can get our service until the problem is resolved or until get your satisfaction!
Specification of 2/3 Axle semi trailer tank trailer for water and fuel / crude oil / chemical / asphalt / bitumen / alcohol / Diesel
Tank Body | |
Shape | Cylindrical |
Dimension | 12990*2500*3800 mm |
Tare weight | 11000kg |
Total Volume(m3) | 50 m³ |
Tanker Body Material | 5mm Carbon steel |
End Plate | 6mm Carbon steel |

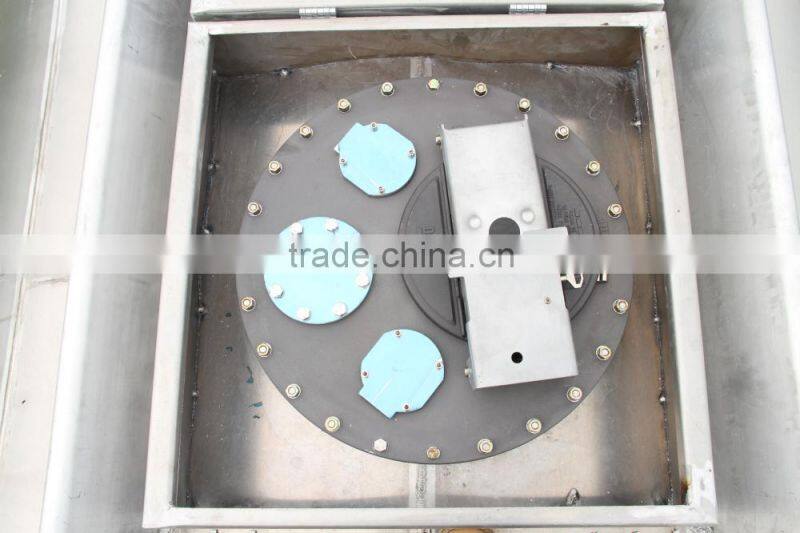

Manhole Cover | Ero-standard manhole ,diameter 500mm,two pieces |
Breathing Valve | Aluminum breathing valve, two pieces |
Ball Valve | 3'' Aluminium Ball Valve, two pieces
|
Compartments | 1 piece |
Discharging Pipe | 4”Rubber tube ,two pieces , six meters length |
Cat Walk | As requirement |
Chassis | |
Main Beams | Carbon steel |
Axle | 3 axles FUWA 13TON |
Landing Gear | JOST D200T or China Brand 28T |
King Pin | 3.5 inch bolts type kin pin |
Suspension | Mechanical suspension or Air suspention |
Leaf Spring | 90mm(width)/13mm(thickness)/10pieces |
Pneumatic Braking System | Vabco emergency valve,four double and two single chamber, one pieces air tanker . |
Rim | 9.00-22.5 13 pieces |
Tire | 12.00R22.5 Triangle Brand |
ABS | With |
Fire extinguisher | Two pieces 4 KG , |
Painting | Compete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint |

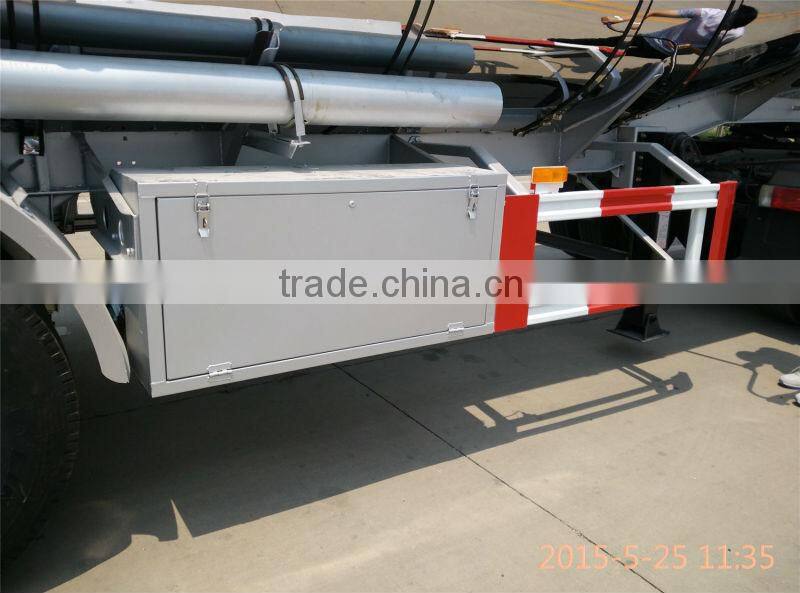

Accessories | One standard tool box |
Shipping Terms of 2/3 Axle semi trailer tank trailer for water and fuel / crude oil / chemical / asphalt / bitumen / alcohol / Diesel
By bulk cargo carrier, RORO or 40HQ container.
Our aftersales service of 2/3 Axle semi trailer tank trailer for water and fuel / crude oil / chemical / asphalt / bitumen / alcohol / Diesel
Our warranty of trailer is one year.
so if there is any problem about the quality, please tell us without hesitation.
Our technician will serve for you!
We are sincerely hope to cooperate with you and establish a long term relationship with you.
So we always focus on quality, not price!
Shandong Shengrun Automobile Co., Ltd. is listed among appointed enterprises to produce and refit automobile approved by Development and Reform Commission of China(former Economy and Trade Commission of China), the first cooperation enterprise with its products listed in Public Notice on automobile refitting for management.
We are the full-size Modified Truck enterprise which integrates the design of product, scientific research developing, production and sale together, possessing subsidiary companies of automobile production, automobile trade and automobile fittings production, etc. Our leading products include "Shengrun" brand semi-trailers, tipper, fuel tanker, particle material tanker, bulk cement tanker, concrete mixer truck, wrecker trucks, LNG, CNG, and other special vehicles.
Our company covers an area of 730,000 square meters, total assets 460 million RMB. We have more than 800 workers; including 128 persons with senior technical title. We have top-notch numerical control cutting machine, automatic welding machine, large-size bending machine and board press machine in China, tanker body automatic welding tipper, the greatest entire-car-passing type shot blasting machine in Shandong province, 21m length super spray painting and baking varnish room, Switzerland four-wheel ATD-GPS and 400 sets test equipment which are advanced technology and Hi-Tech equipment. One hundred kinds of truck semi-trailers and tank trailers have passed our National Technical Appraisal and up to top class level in China, we have passed many certificates, such as ISO9001: 2008, CCC etc.
Persisting in "the quality will cast on the brand, the good faith building future" as the enterprise objective, the company's staff devote to the promotion of enterprise core competitive power, pursuing the sustainable development, the making strong trend brand, in order to serve all the clients.
Our product line of fuel tanker semi trailer:
Our main products:
FAQ of 2/3 Axle semi trailer tank trailer for water and fuel / crude oil / chemical / asphalt / bitumen / alcohol / Diesel
1. How do you transport the semi trailers?
We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension, tyre, are purchased centralized by our group, every node will be inspected strictly. Moreover, advanced equipment rather than only worker is been applied
during the whole producing process to ensure the welding quality.
