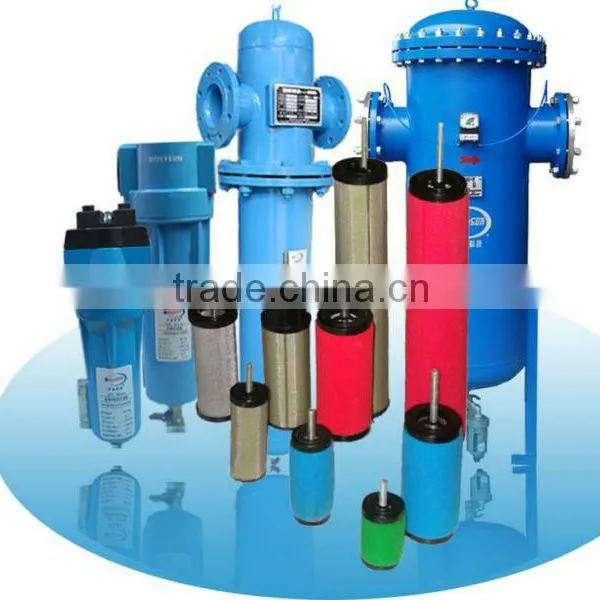

High Efficiency Oil Removal Filter

Specifications

air filter
1. economy, high efficiency
2. good looking
3. easily for installation
4. easily to replace the element

High Efficiency Oil Removal  Filter:







Product introduction:

Grades:totally 5 grades as HF9,HF7,HF5,HF3,HF1.

ing pressure :10kgf/cm²(10bars)

Max.temperature of element :66°C

New element is using superior duralumin,with the epoxy resin powder interior and exterior to improve the wear well and corrosion resistant,

New housing with compact design,it can be series-parallel connection in order to save spaces.

Optional parts:auto-drain,pressure indicator,differential pressure gauge,and liquid indicator.



A choice of five elements allows you to design a system that delivers the air quality you require.

Push-on type element:replacement easy

Piston type elements to housing seal:prevents unfiltered air through filter directly

Corrosion resistant cores:Stainless steel for added structural integrity

Low resistance to flow,Seam welded for extra strength

New “matrix blended fiber”media:Large,effective surface area_improves capture rate-ensures high efficiencies,Large open area minimizes pressure drop

Coated,closed cell form sleeve:Resists chemical attack from oils and acids;Ensures high efficiencies by preventing re-entrainment of coalesced liquids

Chemically resistant end caps bound to media with specially formulated adhesive silicone free

Withstands temperatures to 66°C





Five grade of precision for choosing:

1). Separator filter (HF9)
For bulk liquid removal plus a 3 micron coalescer (5ppm w/w maximum remaining oil content)
Two-stage filtration
* First stage: two stainless steel orifice tubes provide 10 micron mechanical separation
* Second stage: in-depth fiber media captures solid and liquid particles to 3 micron

2). Air line filter (HF7)
For removal of liquid water and oil; removes solid particles to 1 micron (1.0 ppm w/w maximum remaining oil content)
Corrosion resistant inner and outer cores
Two-stage filtration
* Firt stage: captures larger particles with alternate layers of fiber media and media screen
* Second stage: coalesces aerosols and captures solid particles with multiple layers of epoxy bonded, blended fiber media

3). High efficiency oil removal filter (HF5)
For coalescing fine water and oil aerosols; removes solid particles to 0.01 micron (0.01 ppm w/w maximum remaining oil content)
Corrosion resistant inner and outer cores
Two stage filtration
* First stage: multiple layers of fiber media and media screen remove  larger particles pre-filtering the air for the second stage.
* Second stage: multiple layers of bonded, blended fiber media for fine coalescence
Outer coated, closed cell foam sleeve

4). Ultra high efficiency oil removal filter (HF3)
For coalescing ultra-fine oil aerosols; removes solid particles to 0.01 micron (0.001 ppm w/w maximum remaining oil content)
Corrosion resistant inner and outer cores
Two stage filtration
* First stage: coated, closed cell foam sleeve acts as pre-filter and flow disperser
* Second stage: multiple layers of matrix blended fiber media for ultra-fine coalescence
Outer coated, closed cell foam sleeve

5). Activated carbon air filter  (HF1)
For removal of oil and hydrocarbon vapors normally absorbable by activated carbon; removes solid particles to 0.01 micron (0.003 ppm w/w maximum remaining oil content)
Corrosion resistant inner and outer cores
Two stage filtration
* first stage: stabilized bed of finely divided carbon particles removes the majority of the oil vapor
* Second stage: multiple layers of fiber media with bonded micro fine carbon particles remove the remaining oil vapor
Multiple layers of fine media prevent particle migration
Outer coated, closed cell foam sleeve prevents fiber migration
Designed life is 1000 hours under rated conditions.





Model,Size &Technical Data:











Company profile:

Shanghai HOLYSUN Machinery Technology Co.,Ltd.Established in 1993,is an integrated enterprise which is specialized in compressed air purification equipment, Holysun integrates scientific research,manufacture,sales and service.We’ve holding with technology innovation and processional spirit persistently,meanwhile taking the advanced designing concept and exquisite techniques from USA. We’ve passed ISO 9001:2008 Quality Authentication &Manufacturing license etc. Successfully promoted high quality air treatment system to our customers,set-up the efficient before & after service as well.

Our company accumulated production and sales experience of compressed air treatment for a long-term year,integrating the advanced technology from abroad with our practical conditions,we designed & manufactured HOLYSUN brand HSD series Refrigerated Air Dryer,Absorbing Air Dryer,After Cooler,Air chiller Set,Industry using Water Cooler,HF series High-efficient precision-filter (home made filter housing, Hankison element)etc.Totally 13 series,300sorts of products which are widely used in electrical,metallurgy,electron,mechanism,petroleum,chemical industry,auto industry,textile industry,chemical fiber stuff,air treatment, cigarette, biology,medicine,daily chemical industry and so on.Our company has always been keeping ahead on this line.

The HOLYSUN’s headquarter is in Shanghai,meanwhile has offices among Beijing,Guangzhou,Jinan,Shenyang,Zhengzhou,Wuhan, Chengdu and Wu-xi which responsible for before & after-sales technology consultation,business negotiation as well as maintenance service,perfect sales & service network assuring the equipment’s running smoothly year by year.

HOLYSUN Machinery ,Sino-America technology,the global leader in compressed air treatment.
