Specifications
Superior productExquisite technology
High efficiency
Energy conservation
ISO9001:2008 & CE

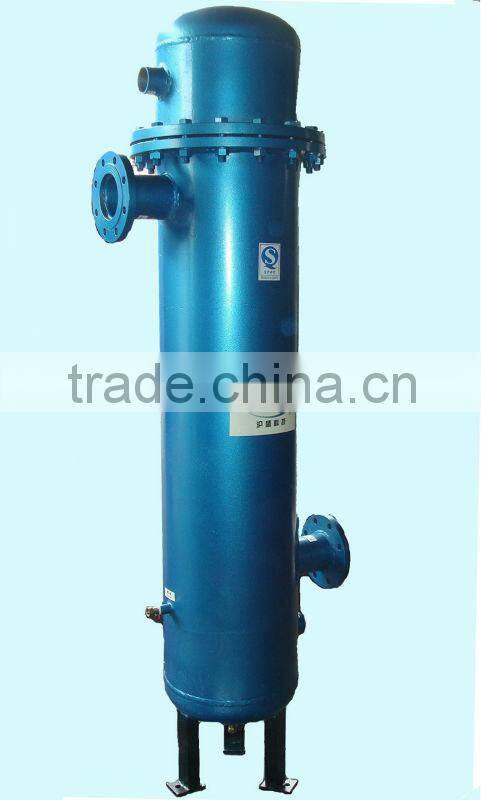

Water-cooled Compressed Air After Cooler
HSD-15W Technical Data:
Model HSD-15W
Capacity(Nm³/min): 15
Water consumption(Nm³/h) :4.5
Air connection :DN65
Cooling water connection :ZG2"
Net weight(kg): 380
Dimensions(mm):445*245*1963
Work Condition and Technical Data:
Inlet pressure:0.4~1.0MPa
Intet temperature: ≤140°C
Outlet temperature : ≤45°C
Cooling water inlet temperature: ≤32°C
Cooling water inlet pressure: 0.2~0.4MPa

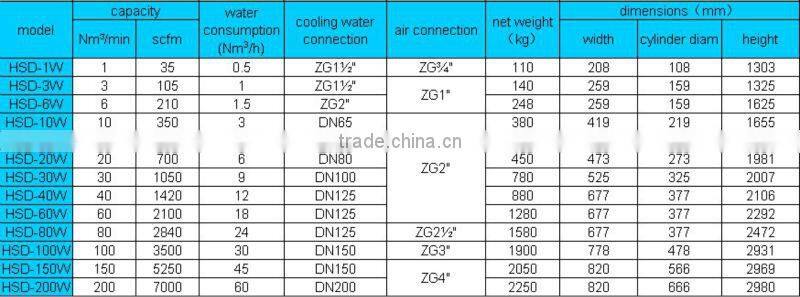

Model,Size & Technical Data:
Company profile:
Shanghai HOLYSUN Machinery Technology Co.,Ltd.Established in 1993,is an integrated enterprise which is specialized in compressed air purification equipment, Holysun integrates scientific research,manufacture,sales and service.We’ve holding with technology innovation and processional spirit persistently,meanwhile taking the advanced designing concept and exquisite techniques from USA. We’ve passed ISO 9001:2008 Quality Authentication &Manufacturing license etc. Successfully promoted high quality air treatment system to our customers,set-up the efficient before & after service as well.
Our company accumulated production and sales experience of compressed air treatment for a long-term year,integrating the advanced technology from abroad with our practical conditions,we designed & manufactured HOLYSUN brand HSD series Refrigerated Air Dryer,Absorbing Air Dryer,After Cooler,Air chiller Set,Industry using Water Cooler,HF series High-efficient precision-filter (home made filter housing, Hankison element)etc.Totally 13 series,300sorts of products which are widely used in electrical,metallurgy,electron,mechanism,petroleum,chemical industry,auto industry,textile industry,chemical fiber stuff,air treatment, cigarette, biology,medicine,daily chemical industry and so on.Our company has always been keeping ahead on this line.
The HOLYSUN’s headquarter is in Shanghai,meanwhile has offices among Beijing,Guangzhou,Jinan,Shenyang,Zhengzhou,Wuhan, Chengdu and Wu-xi which responsible for before & after-sales technology consultation,business negotiation as well as maintenance service,perfect sales & service network assuring the equipment’s running smoothly year by year.
HOLYSUN Machinery ,Sino-America technology,the global leader in compressed air treatment.
