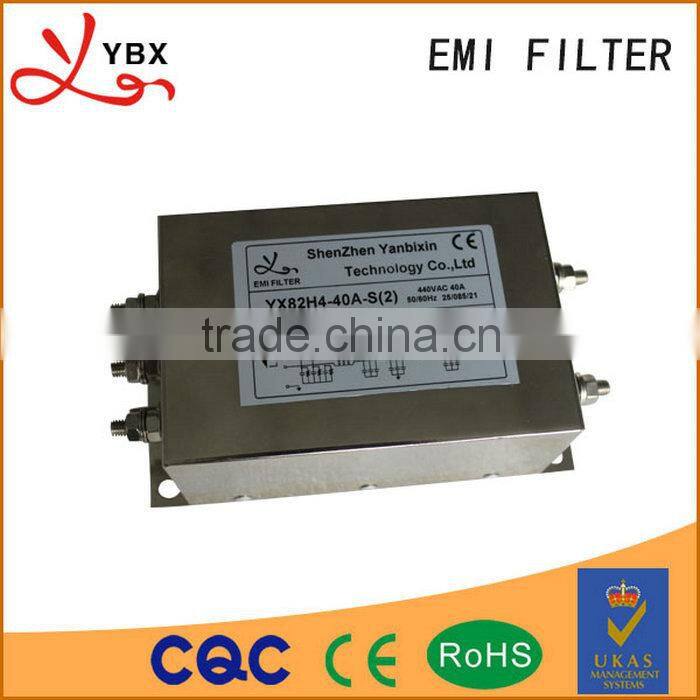

Cheap Motor Wave Interference Power Magnetic EMC Filter
Specification
Item |
THREE PHASE FOUR LINE EMI Filter |
Model |
Plug EMI Filter -YX82H4 |
Transfer Function |
Low Pass |
Package Type |
Surface Mount |
Nominal Center Frequency |
10K-30MHZ |
Insertion Loss |
60~90dB |
Input Impedance |
50Ω |
Rated Voltage |
115V/250V |
Rated Current |
1A-100A |
Environmental Temperature |
40°C |
Temperature Range |
25 / 085 / 21 |
Operating Frequency |
50/60HZ |
Line to Line |
1450VDC |
Line to Ground |
2250VDC or 2000VAC |
Maximum Leakage Current |
115VAC/60HZ 0.3mA Max. 250VAC/60HZ 0.6mA Max |
MOQ |
5pcs |
Price |
USD60~180/Meter |
Lead Time |
5~15 weekday for Plug EMI Filter |

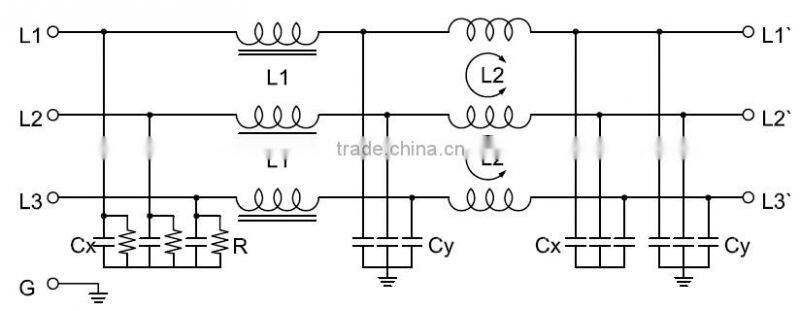

Electrical schematic

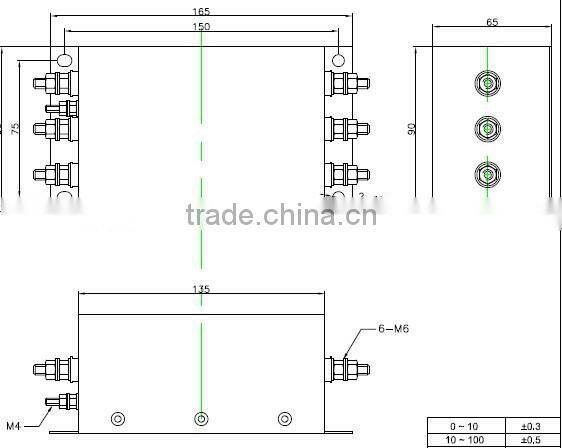

Outline dimension drawing
Certificate
Packaging
Plug EMI Filter: CTN/10pcs
N/G W.: 12/13.6KG
Measures: 0.565*0.285*0.205 m
Shipment
---Shipping terms: DHL, UPS, FEDEX, TNT, EMS
---Port is Shenzhenor as requests.
Sample
Sample Fee: Negotiate
Sample Time: 3~5 days
Payment
---Payment terms: Western Union, D/P, T/T,L/C
---Please remember to leave the correct contact information for delivery.
1. Integrates development, manufacturing and sell in-house
2. Quality assurance and certification: ISO 9001 CE ROHS
3. Yearly capacity: 600000-1000000 pcs
