High Performance Single Phase Double Stage Noise Filter
Specification
Item |
High Performance Single Phase Double Stage Noise Filter |
Model |
High Performance Single Phase Double Stage Noise Filter -YB-D |
Transfer Function |
Low Pass |
Package Type |
Surface Mount |
Nominal Center Frequency |
10K-30MHZ |
Insertion Loss |
60~90dB |
Input Impedance |
50Ω |
Rated Voltage |
220VAC |
Rated Current |
1A~6A |
Environmental Temperature |
40°C |
Temperature Range |
25 / 085 / 21 |
Operating Frequency |
50/60HZ |
Line to Line |
1450VDC |
Line to Ground |
2200VDC |
Maximum Leakage Current |
250VAC/60HZ 0.8mA Max |
MOQ |
100pcs |
Price |
USD3.8~5.3/Meter |
Lead Time |
5~15 weekday |

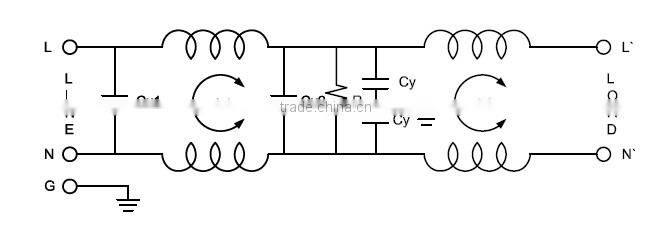

Electrical schematic

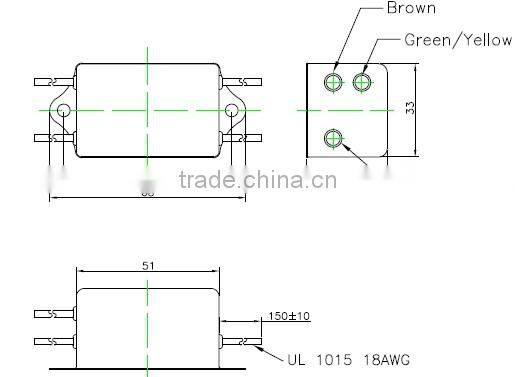

Outline dimension drawing

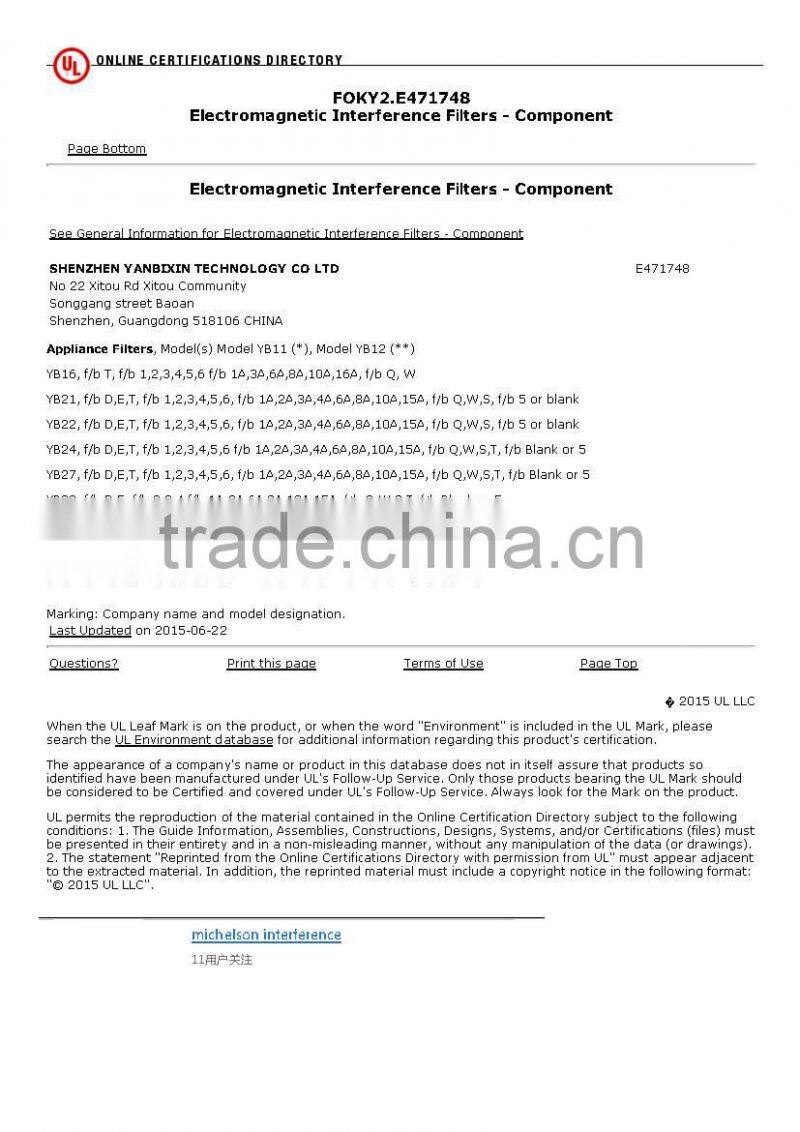

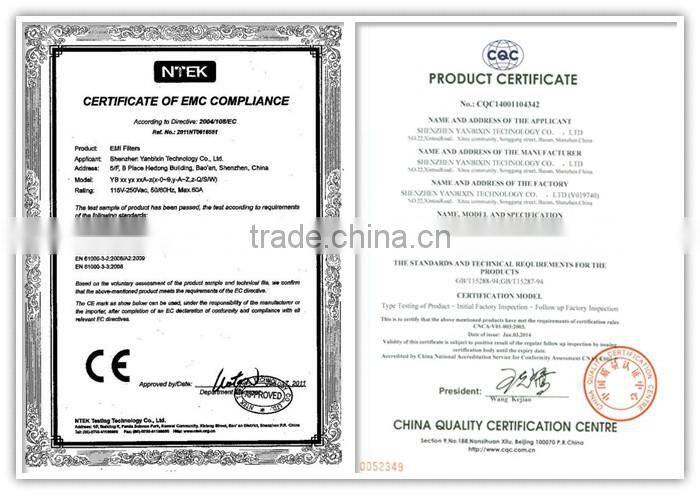

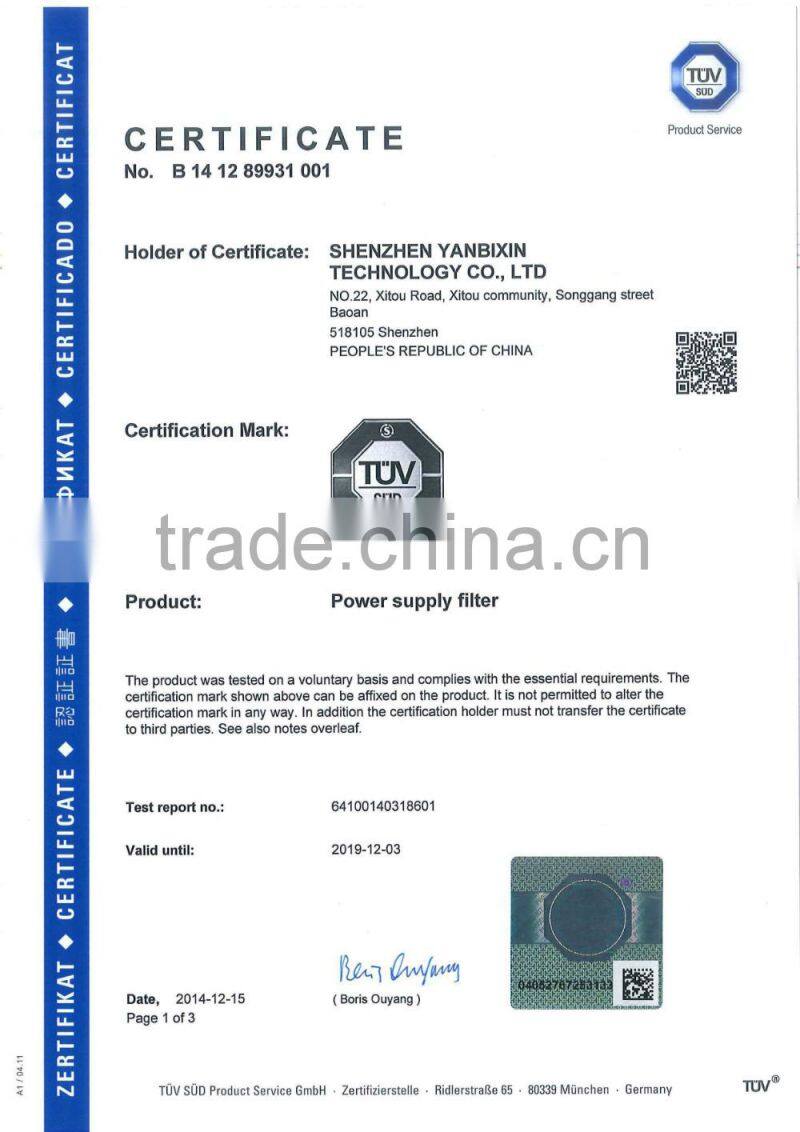

Certificate

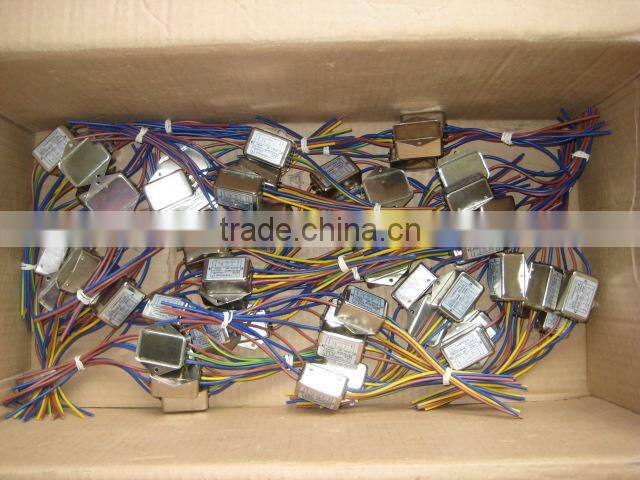

Packaging
High Performance Single Phase Double Stage Noise Filter :150PCS/CTN
N/G W.: 12/12.8KG
Measures: 0.455*0.368*0.22CBM
Shipment
---Shipping terms: DHL, UPS, FEDEX, TNT, EMS
---Port is Shenzhenor as requests.
Sample
Sample Fee: Negotiate
Sample Time: 3~5 days
Payment
---Payment terms: Western Union, D/P, T/T,L/C
---Please remember to leave the correct contact information for delivery.
