Guangzhou Factory Single Phase PCB EMI Filter
- 500000 Piece / Pieces per Month
- Shenzhen
- T/T
-
Single phase three-level EMI DC power filter anti-interference purifier
-
EMI single-phase dual stage DC power supply filter anti-interference
-
Saiji SJD410 single-phase two-stage power filter 220V EMI anti-interference purifier
-
Saiji SJD420 430EMI power filter 12V anti-interference three-phase inverter 380V AC 220V purification single-phase
-
Saiji SJB920-16-DT6 inverter input anti high-frequency harmonic interference EMC terminal block power filter
-
Saiji SJD710 power filter single-phase three-level 220V terminal block EMC DC AC frequency conversion anti-interference
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | YBX | Model Number: | Plug EMI Filter -YB11P3 |
| Type: | EMI Filter | Transfer Function: | Low Pass | Package Type: | Surface Mount |
| Nominal Center Frequency: | 10KHz-30MHz | 3dB Bandwidth: | 3.75 | Insertion Loss: | 60dB-90dB |
| Input Impedance: | 50Ω | Stopband Attenuation: | 20-100dB |
Product Description

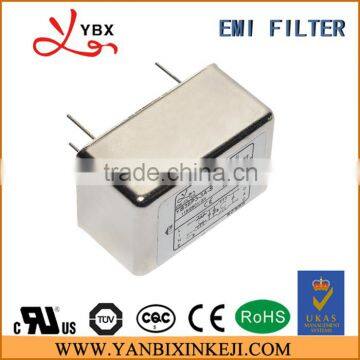

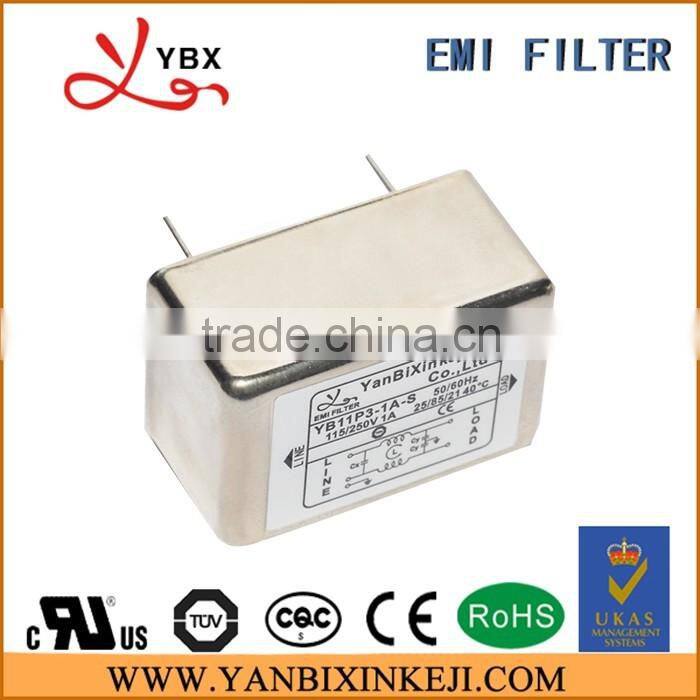

Guangzhou Factory Single Phase PCB-mounting EMI Filter
Specification
Item | PCB-mounting EMI Filter |
Model | PCB-MOUNTING EMI Filter -YB11P3 |
Transfer Function | Low Pass |
Package Type | Surface Mount |
Nominal Center Frequency | 10K-30MHZ |
Insertion Loss | 60~90dB |
Input Impedance | 50Ω |
Rated Voltage | 115V/250V |
Rated Current | 1A 3A 6A |
Environmental Temperature | 40°C |
Temperature Range | 25 / 085 / 21 |
Operating Frequency | 50/60HZ |
Line to Line | 1450VDC |
Line to Ground | 2250VDC or 2000VAC |
Maximum Leakage Current | 115VAC/60HZ 0.3mA Max. 250VAC/60HZ 0.6mA Max |
MOQ | 100pcs |
Price | USD2~3.5/Meter |
Lead Time | 5~15 weekday for Plug EMI Filter |

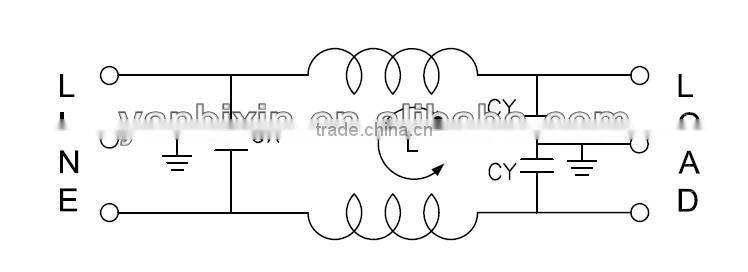

E Electrical schematic:

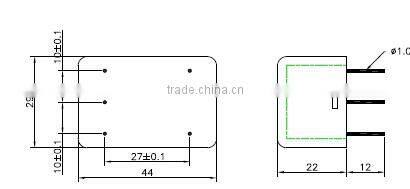

Outline dimension drawing
Certificate
Packaging
Plug EMI Filter: CTN/300pcs
N/G W.: 12/13.6KG
Measures: 0.565*0.285*0.205 m
Shipment
---Shipping terms: DHL, UPS, FEDEX, TNT, EMS
---Port is Shenzhenor as requests.
Sample
Sample Fee: Negotiate
Sample Time: 3~5 days
Payment
---Payment terms: Western Union, D/P, T/T,L/C
---Please remember to leave the correct contact information for delivery.
1. Integrates development, manufacturing and sell in-house
2. Quality assurance and certification: ISO 9001 CE TUV ROHS
3. Yearly capacity: 600000-1000000 pcs
