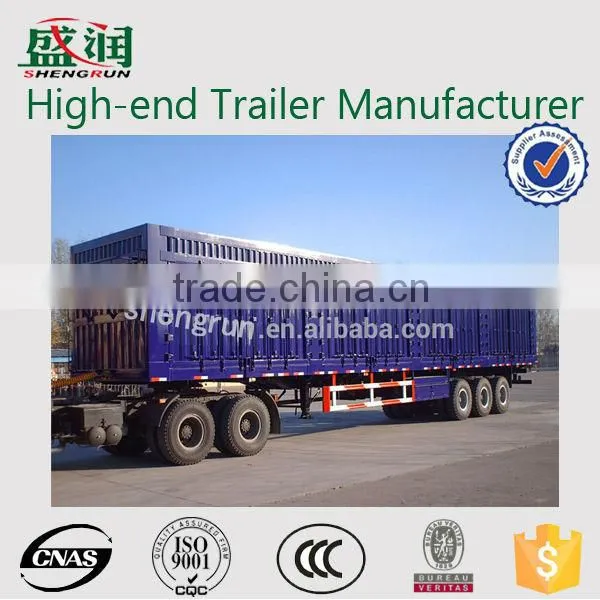

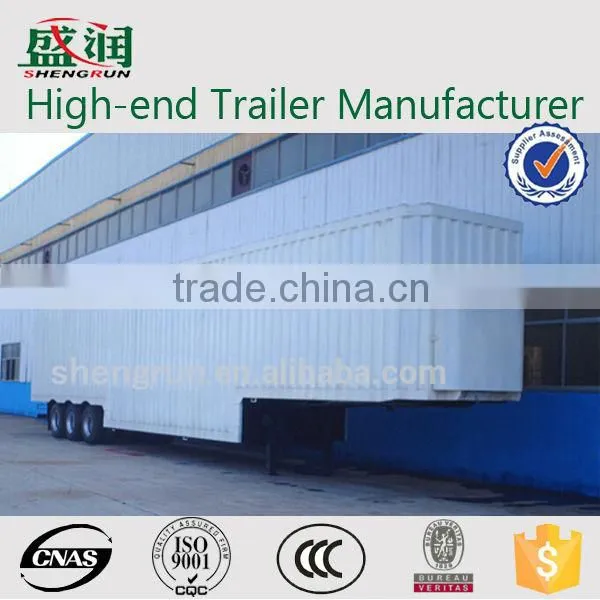

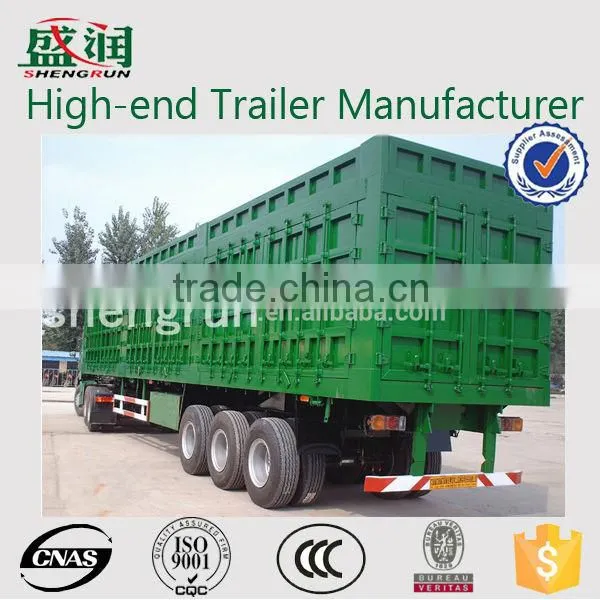

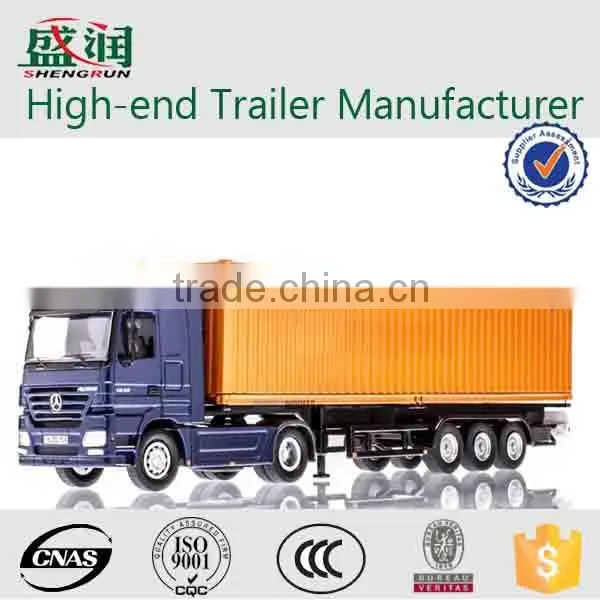

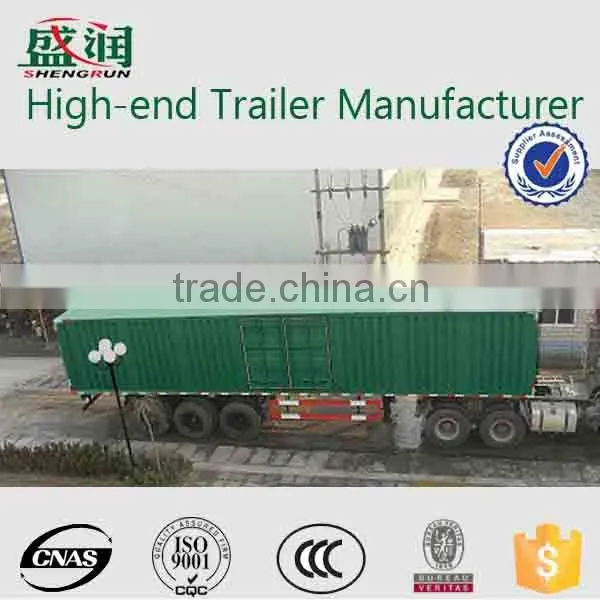

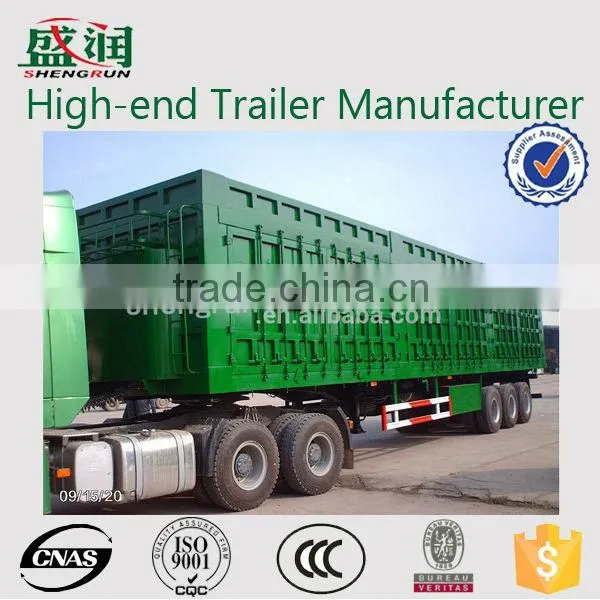

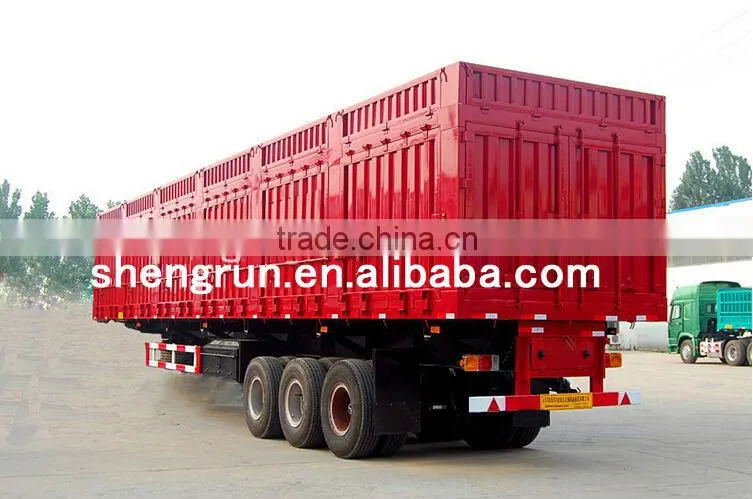

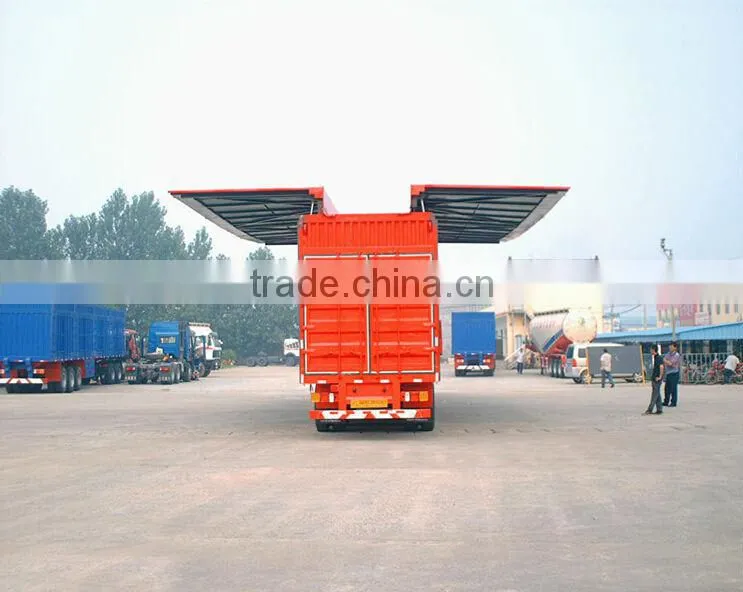

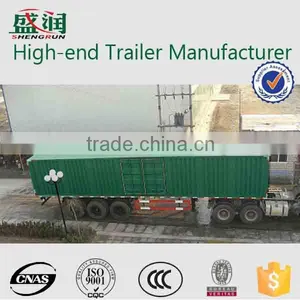

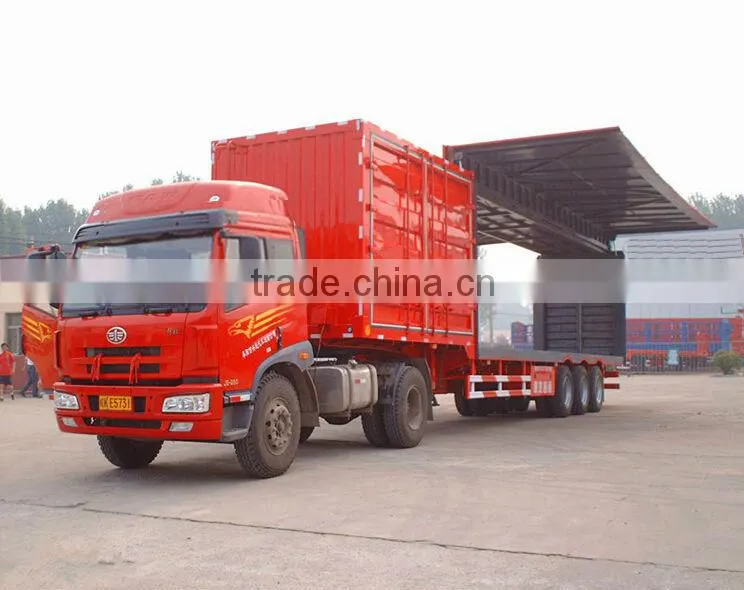

China hot 3 Axles /4 Axles van semi trailer
Dimension | |
Tare Weight |
7000kg |
Payload |
33000kg |
Total Weight |
40000kg |
Overall Length |
13000mm |
Overall Width |
2550mm |
Overall Height |
3400mm |
Wheelbase |
6900mm+1310mm+1310mm |
Specificatin | |
Main Frame |
Back three axles and steel spring balance suspension system.With steel frame throughout type and the high quality alloy steel (16Mn )welding longeron into h-beam |
Floor |
Steel Sheet 3mm thickness |
Axle |
Three Units of FUWA 13Ton axle |
Suspension |
3-axle mechanical suspension |
Leaf Spring |
4 sets of reliable local brand, 10-piece leaf spring |
King Pin |
one unit of 3.5`` (90#) welded kingpin |
Landing Gear |
Two-speed ,manual operation, heavy duty JOST landing gear or China Brand 28T |
Wheel Rim |
Twelve units of 8.25-22.5 rim |
Tyre |
Twelve units of 11R20 tyre |
Twist Lock |
Twelve nos. four nos are fasten mode,eight nos are up-down mode, of ISO twist lock for 2x20ft;1x40ft container,central locks can be laid down. |
Spare Wheel Carrier |
One set of spare wheel carrier including a riser. |
Pneumatic Braking System |
Two units of WABCO RE 4 relay valve; four units of T30/30 spring brake chamber; two units of T30 brake chamber , two units of reliable local brand 45L air tank ; two units of reliable local brand standard coppery air-connector. |
Electrical System |
One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket;two sets of reliable ,local brand standard rear light,turn light,rear reflector,side light,side reflector etc. One set of DAFA(brand ) 6-core standard Cable. |
Color |
Optional |
Accessory |
One box with a set of standard trailer tool |
|
Shangdong Shengrun Automobile Co., Ltd. is listed among appointed enterprises to produce and refit automobile approved by Development and Reform Commission of China(former Economy and Trade Commission of China), the first cooperation enterprise with its products listed in Public Notice on automobile refitting for management.
|
Company: Shandong Shengrun Automoblie Co., Ltd
Add:Quanpu Town of Liangshan in Jining City of Shandong China
Tom Chen
Skype:tomchen026@
Email:tomchen026@
Tele:+86 18366719474
whatsApp:+86 18366719474
wechat:Pingchangxin026
