Abrasion Resistant Steel Pipe for Ash or Stone

US$ 160 - 500 MOQ: 1 Piece

Key Specifications

Standard:

Grade:

Thickness:

3, 500

Zhangjiagang Runkun Wear Resistant Materials Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Thickness 3, 500

Section Shape Round

Outer Diameter 100 - 20000 mm

Place of Origin Jiangsu, China

Secondary Or Not Non-secondary

Application Other, Conceret Pipe

Technique Hot Rolled

Certification Other, ISO9000

Surface Treatment Other, Welding

Special Pipe Thick Wall Pipe

Alloy Or Not Is Alloy

Specifications

1. Decreasing maintenance cost of equipments
2. Reducing energy consumption of mill equipment
3. Improving operation rate

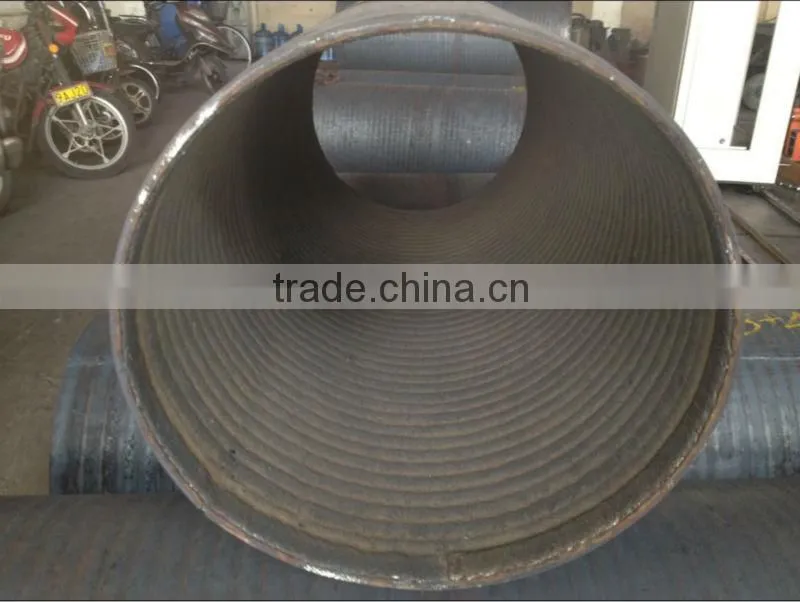

Abrasion resistant steel pipe for ash or stone

Comparsion Chart

Grade	Mild pipe	SLS600 Induction hardened steel	Ultra-met steel	Ceramite cast steel
Hardness	120-150BHN	600 BHN	>600BHN	>8Mohs
Max temperature(°F)		450	1250	2195
Impact resistance	Good	Average	Marginal	Poor
Abrasion resistance	Poor	Good	Very good	Excellent
Std size(OD)	Unlimited	3''to26'	10''to40''	4''to24''
Handling&Installation	Excellent	Very good	Very good	Heavier
Fabrication	Unlimited	Some limitaions	Some limitaions	Some limitaions
Emergency repair	Easily patched	Easily patched	Easily patched	Easily patched
Initial cost		3-8 times above mild steel	6-10 times above mild steel	4-8 times above mild steel
Life expectancy		Up to 6 times mild steel	Up to 8 times mild steel	Up to 15 times mild steel
Advantages	Low cost Readily avaliable	A good combination of abrasion&impact resistance	Good wear resistant,moderate temperaure resistance	High wear resistant,good therma shock resistant
Disadvantages	Poor abrasion resistant	No corrosion resistance	Limited length&diamter	Heavier
