Help CenterFused Knife Switch With 2p and 3p
Related Products
-
Terminal Blocks H,U(W),V(F) Series Type Terminal BlocksUS$ 0.2 - 0.3MOQ: 1000 Pieces -
Favorites Compare HFW/PE Terminal Block(CB Certificate)US$ 0.2 - 0.3MOQ: 1000 Pieces
-
540series Fuse Terminal Connector Block, Electrical Termninal StripUS$ 0.2 - 0.3MOQ: 1000 Pieces
-
540 Series Fused Terminal Block With 3 Contacts, Electrical Terminal Strip, European StandardUS$ 0.2 - 0.3MOQ: 1000 Pieces
-
UL Approved 540 Feed Through Terminal Block Connector Push in Wire Connector Inter Connection Fuse Connector Fuse Terminal BlockUS$ 0.2 - 0.3MOQ: 10000 Pieces
Material:Nylon 66,UL 94V2, Natural
Housing:94V-2 Level 94V-2 Grade
Insert: Brass, Nickel plated
Screw: M3*6 Yellow chromated
Earth screw:M3*14 Yellow chromated
Voltage/Ampere(IEC)
Terminal Strip: 400V/15A
Fused Carrier: 250V/6.3A
Voltage/Ampere(UL)
Terminal Strip: 200V/15A
Fused Carrier: 200V/10A
Temperature
Working Temperature:-40°C to 100°C
140 °C
Wire:14AWG
Packaging:
540-1GWP 100*10 per/ctn
540-2GWP 70*10 per/ctn
540-3GWP 50*10 per/ctn
540-4GWP 40*10 per/ctn
540-5GWP 40*10 per/ctn

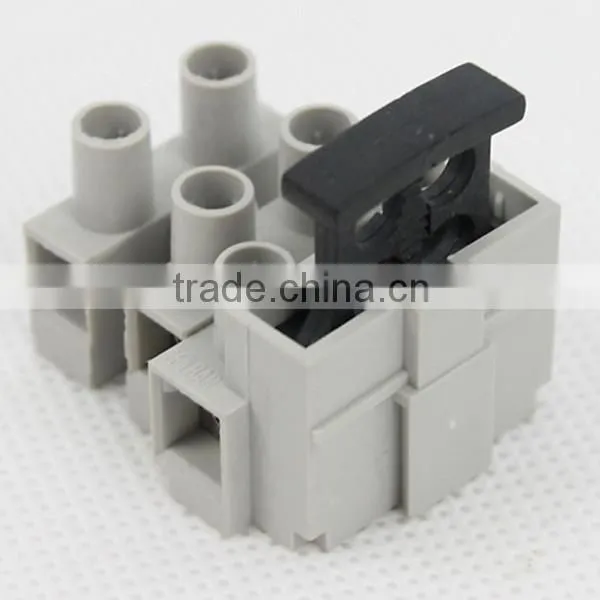

Terminal strip with fuse-carrier
Dovetail for different terminal combinations
For 50*20 mm fuse
Earth-screw option
IP20 finger protection
Anti-rotation spigot as option
1,2,3,4and 5 poles available
Color-housing in grey, fuse carrier in black
Shipping
We cooperated with local fedex, dhl, ups, tnt,ems, and got more than 50% discount, help you save the shipping cost, and let you receive it in 3 to 10 days.
