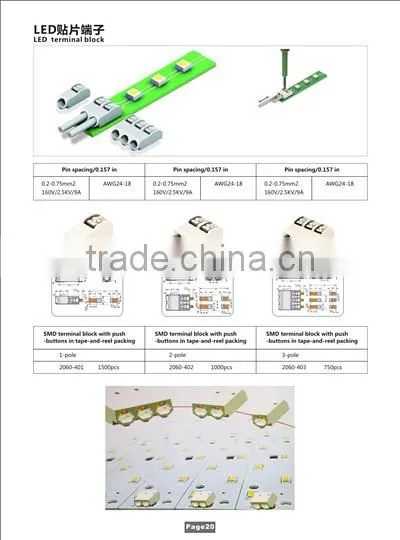

Help CenterWago 2060 Series SMT Terminal Block Plastic
Related Products
-
Sineyi Terminal Block Male Female Connector 12 PolesUS$ 0.2 - 4MOQ: 1000 Pieces -
Sineyi Plastic Knife Switch for Led With PlateUS$ 0.2 - 0.3MOQ: 1000 Pieces
-
Through Type Terminal BlockUS$ 0.2 - 0.3MOQ: 1000 Pieces
-
Pluggable Male and Female ConnectorUS$ 0.8 - 2.07MOQ: 1000 Pieces
-
Fused Terminal of European Stranderd 540 SeriesUS$ 0.2 - 0.3MOQ: 1000 Pieces
Product Description
| Name | Value | Unit |
| No. of Poles | 3 | |
| Total number of connection points | 3 | |
| Total number of potentials | 3 | |
| Color | light gray | |
| Ratings according to 1 | IEC/EN 60664-1 | |
| Overvoltage category EN 1 | III | |
| Pollution degree (1) | 2 | |
| Rated voltage EN (1) [V] | 160 | V |
| Rated surge voltage (1) [kV] | 2.5 | kV |
| Nominal current [A] | 9 | A |
| Overvoltage category EN 2 | II | |
| Degree of pollution (2) | 2 | |
| Rated voltage EN (2) [V] | 320 | V |
| Bemessungsstossspannung (2) [kV] | 2.5 | kV |
| Nominal current (2) [A] | 9 | A |
| Overvoltage category EN 3 | III | |
| Degree of pollution (3) | 3 | |
| Rated voltage EN (3) [V] | 63 | V |
| Rated surge voltage (3) [kV] | 2.5 | kV |
| Nominal current (3) [A] | 9 | A |
| Connection technology (1) | CAGE CLAMP® S | |
| Conductor type (1) | solid | |
| Cross section from (1) [mm²] | 0.2 | mm² |
| Cross section up to (1) [mm²] | 0.75 | mm² |
| Cross section from (1) [AWG] | 24 | AWG |
| Cross section up to (1) [AWG] | 18 | AWG |
| Conductor type (2) | fine-stranded | |
| Cross section from (2) [mm²] | 0.2 | mm² |
| Cross section up to (2) [mm²] | 0.75 | mm² |
| Cross section from (2) [AWG] | 24 | AWG |
| Cross section up to (2) [AWG] | 18 | AWG |
| Cross section from (3) [mm²] | 0.25 | mm² |
| Cross section up to (3) [mm²] | 0.34 | mm² |
| Cross section from (4) [mm²] | 0.25 | mm² |
| Cross section up to (4) [mm²] | 0.34 | mm² |
| Stripped length from (1) [mm] | 6 | mm |
| Stripped length up to (1) [mm] | 7 | mm |
| Strip length from [inch] [in] | 0.24 | in |
| Strip length up to [inch] [in] | 0.28 | in |
| Stripped length (1) [in] | 0.26 | in |
| Material group | I | |
| Insulating material | Polyphtalamide glass fiber (PPA-GF) | |
| Flammability rating per UL 94 | V0 | |
| Lower limit temperature [C] | -60 | C |
| Upper temperature limit [C] | 105 | C |
| Contact material | Copper alloy | |
| Contact plating | tin-plated | |
| Weight [g] | 1.285 | g |
| Width [mm] | 11.9 | mm |
| Width [in] | 0.469 | in |
| Height [mm] | 4.5 | mm |
| Height [in] | 0.177 | in |
| Length [mm] | 13.1 | mm |
| Length [in] | 0.516 | in |
| Pin spacing from [mm] | 4 | mm |
|
Pin spacing from [in]
|
