Home > Electrical & Electronics > Connector & Terminals > Terminals > Yuyao Sineyi Ballast Terminal Block 2 Pole Good Quality Electric LED

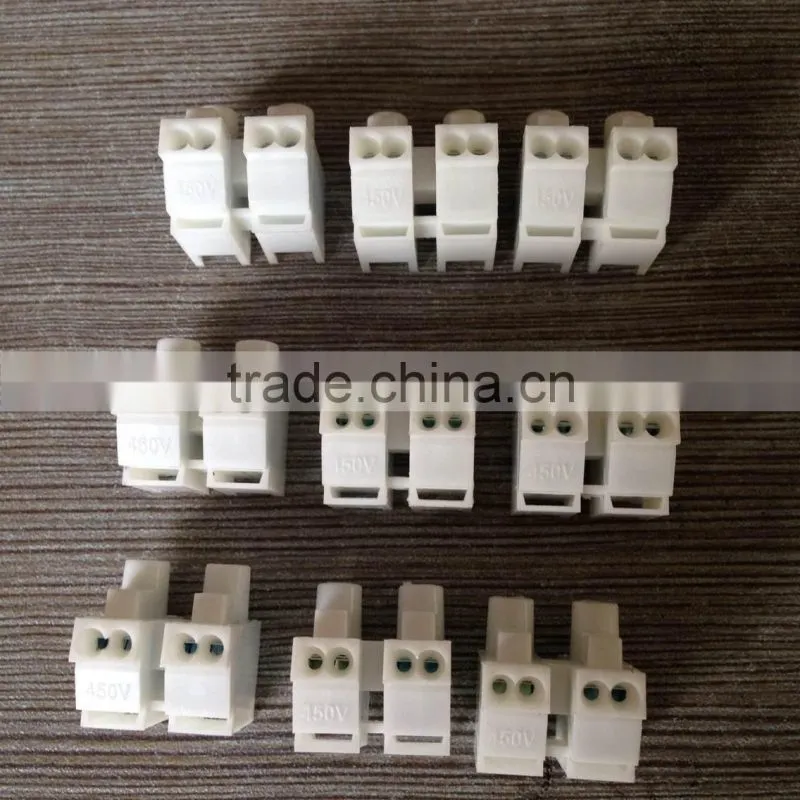

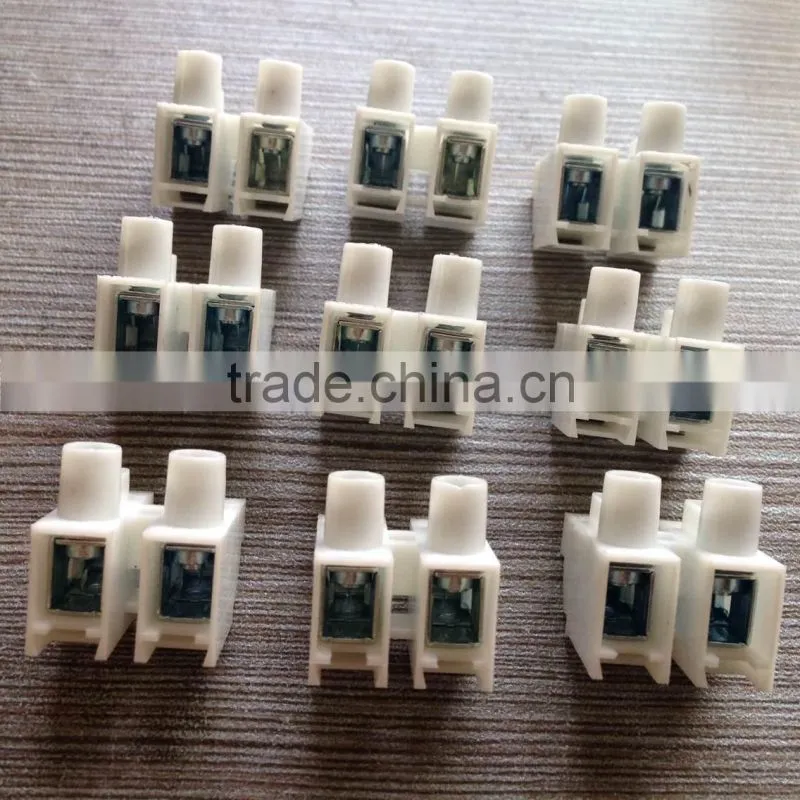

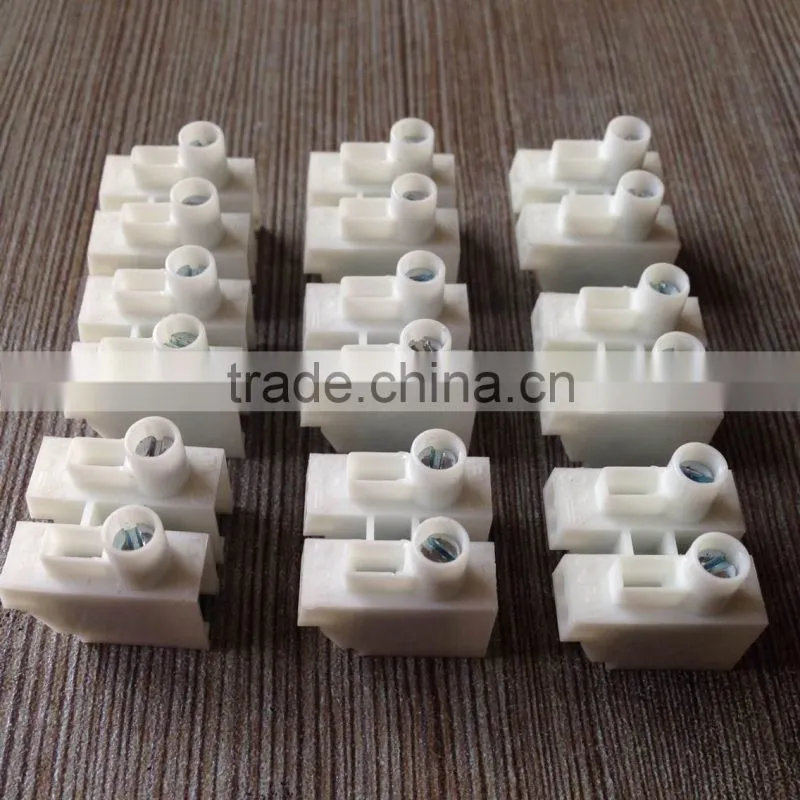

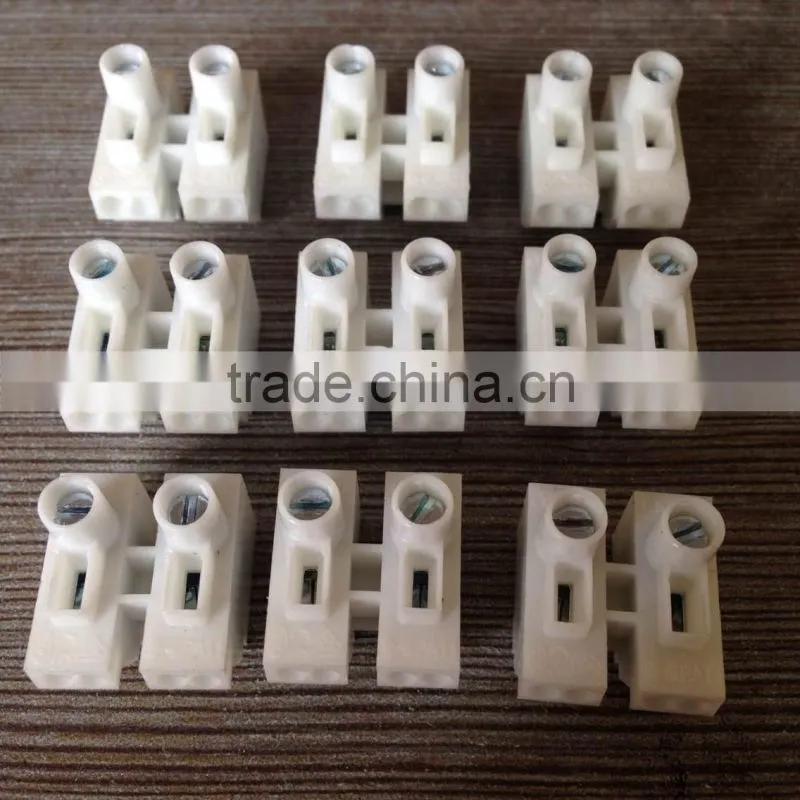

Yuyao Sineyi Ballast Terminal Block 2 Pole Good Quality Electric LED
US$ 0.1 - 1
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SINEYI
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wholesale High Quality Copper Wire Connector Close End Low PriceUS$ 0.01 - 0.1MOQ: 1000 Pieces -
Fused Terminal Luminaire Push WireTerminal ConnectorUS$ 0.2 - 0.3MOQ: 1000 Pieces
-
Sineyi-043 CE, UL Approved Fused Luminaire Push WireTerminal ConnectorUS$ 0.01 - 0.1MOQ: 1000 Pieces
-
Repalce Wago 294 Fused Luminaire Push WireTerminal ConnectorUS$ 0.01 - 0.1MOQ: 1000 Pieces
-
Sineyi-057 Gray-black 540 Series Fused Terminal BlockUS$ 0.25 - 0.8MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
SINEYI
| Technical Data | ||
| Housing | Thermoplastic | |
| 94 V-2 grade | ||
| Insert | nickel-plated brass/stainless steel plate as wire protector | |
| Voltage / Ampere (IEC) | 600V / 24A | |
| Voltage / Ampere (UL) | 600V / 30A | |
| Temperature | ||
| working | -40oC to 105oC | |
| short period | 130oC | |
| Cross section | up to 4mm2 / AWG 20-12 | |
| Dimension (mm) | |||
| a) Length | 116.4 | f) Pitch | 10 |
| b) Height | 16.9 | g) Screw | M3x6 |
| c) Width | 18.8 | h) Foot height | 2.0 |
| d) Fixing hole | 3.6 | i) Horizontal fixing slot | 3.8 |
| e) Wiring hole | 3.4 | ||
| Packing | |
| Per ctn | 50x10 |
Remarks for high-temprature resistant type : model#206IT TH, color-brown
