Wire mesh belt shot blasting machine is used in foundry castings and similar components.
It composes of automatic loading, unloading, offload conveyors, and PLC for part memory and control of the shotblasting system.
Very high performance shot blasting machine is able to shot blast small and medium dimension work pieces and castings.
The pieces are fed by a metallic belt conveyor. These machines can treat very fragile pieces because the parts being shot blasted do not touch one another during the shotblasting process.
Wire Mesh Belt Systems provide
high-volume, cost-effective performance for deburring,cleaning, descaling, deflashing or etching. These systems are extremely versatile and built to accommodate medium-to-large die castings, heat-treated parts, automotive wheels, ferrous and non-ferrous castings, weldments and fabrications and more.

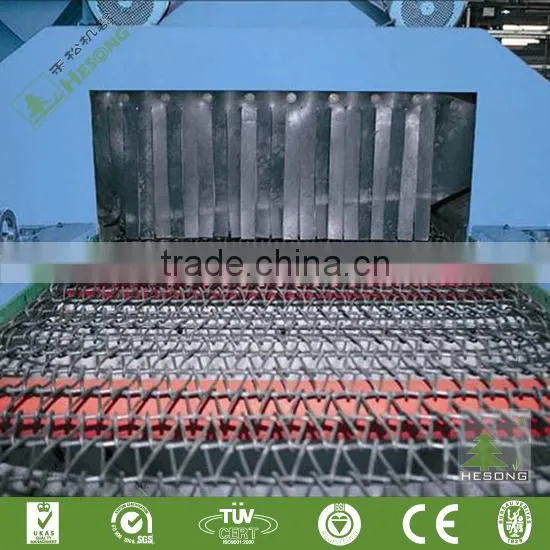

This wire mesh is made of heavy-duty reinforced blast compartment with manganese wear resistant steel.
A key advantage with a mesh belt is that the parts are exposed to the blast wheels from all sides.

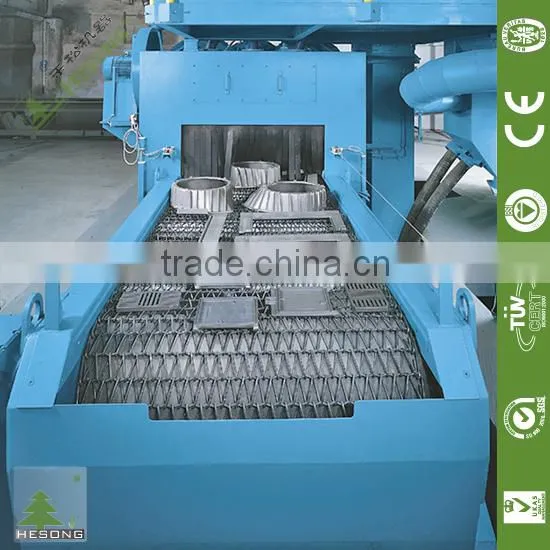

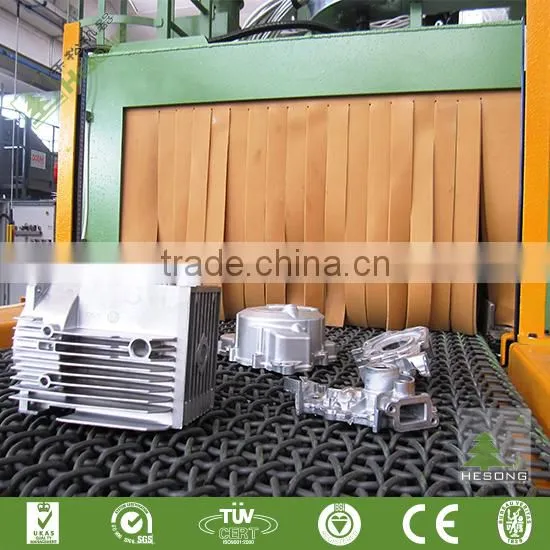

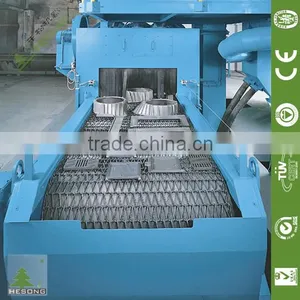

The wire series of machines is a pass through wire mesh conveyor type machine for the blasting of small to medium sized work pieces. Work pieces with overall dimensions and weight not exceeding the specifications can be blasted in continuous operation. Work pieces are placed onto a steel wire mesh conveyor and transported through the blast cabinet where blast wheels are located above and below the conveyor to ensure that all work piece surfaces are exposed to the blast stream. After blasting, the work pieces are dropped off of the end of the conveyor into a receiving container or onto another conveyor. Optionally, a kickoff roller can be placed at the end of the conveyor to assist in the removal of the work pieces.
All shot blast machines include an integral abrasive recovery and cleaning system. After passing through the blast wheel, the abrasive is collected, separated from the resulting dust and other contaminants, and then stored in a hopper, ready for reuse. Collected contaminants are stored in a separate hopper for periodic disposal.
All shot blasting machines utilize replaceable highly wear resistant materials in critical locations. All machine control systems are pre-piped and pre-wired. All machine dust exhaust ports are pre-piped to a central collection point, ready to be connected to an external dust collector or optionally, a fully integrated dry cartridge type dust collector can be provided.
Technical features of Wire mesh conveyor shot blast machine :
1.Continuous flow blasting process
2. Wire mesh conveyor shot blast machine is designed for the integration of robot units for fully automatic loading and unloading
3. Wire mesh conveyor shot blast machine available is equipped with two, four or eight blast wheels for optimal blasting results
4. Wire mesh conveyor shot blast machine -----uniform processing of complex component contours
5. Wire mesh conveyor shot blast machine ---process reliability with all-around blasting result
6. Wire mesh conveyor shot blast machine ----processing of long components (profiles, beams) is possible, as well as the secure blasting of small
7. Wire mesh conveyor shot blast machine can clean components and parts, which can not be transported through roller conveyor machines

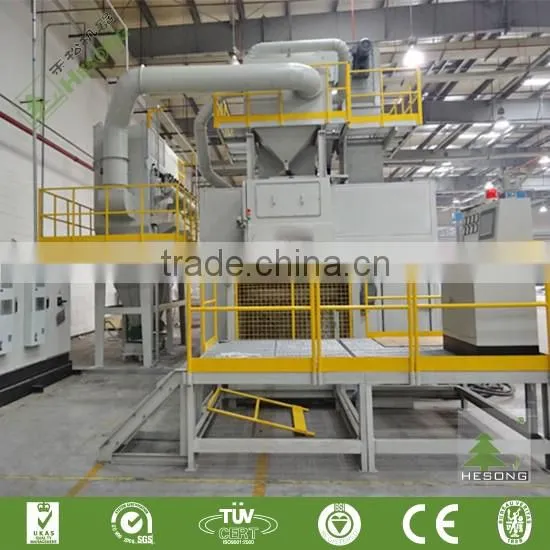

1.The master part of Machine
2.Bucket elevator
3.Dust collector
4.Blast wheels/ blasting turbine
5.Belt guiding roll //sensor
6.Rotating drum screen
7.Airwash separator
8.Blasting abrasive media hopper
9.Dust collector tubing/pipe
10.Inspection platform
11.Wire mesh belt speed governing
1 30 years professional production experience in shot blasting machinery industry.
2 46,000 m^2 production workshop, strong production capacity.
3 Professional senior engineer develop the best solution.
4 Strict quality control system, CE, BV, ISO9001 certificate available.
5 Main components adopt imported international famous brand.
6 Timely delivery, one hour to Qingdao port.
7 Professional after-sale service, Email will be reply in 24 hours.
8 Site installation and commissioning in your factory.
According to your requirements,the most suitable machines will be designed for your workpieces please indicate the folloing details.
1.what kind of workpiece will you clean ?
2.The workpiece size,length ,width and height of maximum workpiece?
3.How many workpiecs do you want to clean per day ?
Based on this question,the detailed technical proposals will be sent to you for reference.
Blast wheel
Our company is designing and producing the key part of shot blasting machine------blast wheel ,newest technology and professional manufacturer !
Spare parts of shot blasting machine
When you are our customer, we will provide so many kinds of spare parts for you all the time
We are factory also can customer-made goods.
Shot Blasting Application:
Agriculture industry
Shot blasting: Tractor components, water pumps, farm implements, etc.
----------------------------------------------------------------------------------------------------------------------------------------
Automobile industry
Shot blasting: Engine blocks, cylinder heads, break drums, etc.
----------------------------------------------------------------------------------------------------------------------------------------
Building & infrastructure industry
Shot blasting: Structural steel, bars, transmission & television towers, etc.
---------------------------------------------------------------------------------------------------------------------------------------
Transportation industry
Shot blasting: Engine blocks, axle & crank shafts, diesel engine components, etc.
--------------------------------------------------------------------------------------------------------------------------------------
Oil & gas industry
Surface preparation: Pipes coating with paper, cement, epoxy, polythene, coal tar, etc.
---------------------------------------------------------------------------------------------------------------------------------------
Mining industry
Shot blasting: Bulldozer, dumpers, crushers, land fill equipments, etc.
-------------------------------------------------------------------------------------------------------------------------------------
Foundry industry
Shot blasting: Automobile, tractor, scooter & motor cycle components, etc.
--------------------------------------------------------------------------------------------------------------------------------------
Aluminum casting industry
Shot peening: Automobile, scooter & motor cycle components, etc.
---------------------------------------------------------------------------------------------------------------------------------------
Forging industry
Shot blasting: Crank shafts, connecting rods, torsion bars, other forged components, etc.
--------------------------------------------------------------------------------------------------------------------------------------
Railway industry
Shot blasting: Side frames, bolster, couplers, rail wheel, entire coach, etc.
-------------------------------------------------------------------------------------------------------------------------------------
Electrical industry
Shot blasting: Motor body, transformer tank, transmission tower, etc.
--------------------------------------------------------------------------------------------------------------------------------------
Energy & power industry
Shot blasting: Sturbines, boilers, switch gear components, wind mill blades, column, etc.
--------------------------------------------------------------------------------------------------------------------------------------
Stainless steel industry
Shot blasting: Strips, angles, channels, pipes, tee, etc.
------------------------------------------------------------------------------------------------------------------------------------
Aviation industry
Shot peening: Jet engine, blades, propeller, turbine, hubs, land gear components, etc.
-------------------------------------------------------------------------------------------------------------------------------------
Shipyard industry
Shot blasting: Steel plates, angles, channels, beams, etc.
-------------------------------------------------------------------------------------------------------------------------------------
Steel mill industry
Shot blasting: Strips, angles, channels, pipes, tee, etc.
-------------------------------------------------------------------------------------------------------------------------------------
Air polution control equipments
Applications: Foundry, carbon black, furnace, cupola, etc.
------------------------------------------------------------------------------------------------------------------------------------
Ceramic/paver industry
Applications: Antiskid, footpath, hospital, government buildig, public places, etc.
Trade Information:
MOQ: 1set.
Settlement Currency: USD, RMB, EUR.
Trade mode: FOB, CIP, CFR, CIF, DDU, DDP.
Payment term: 30% deposit by T/T, the balance paid before delivery by T/T, or L/C at sight.
Delivery time: Within 5-15 days according to different type machine.
After-sale service:
1. Installation and commissioning issue: We will send one technician to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet.
2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full english documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
Any question please kindly contact with us, and welcome to visit our factory in Qingdao China.
