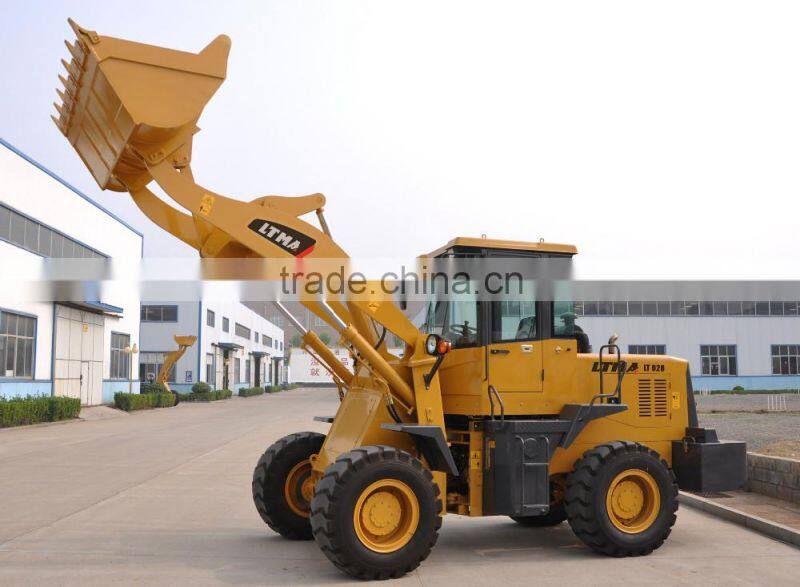

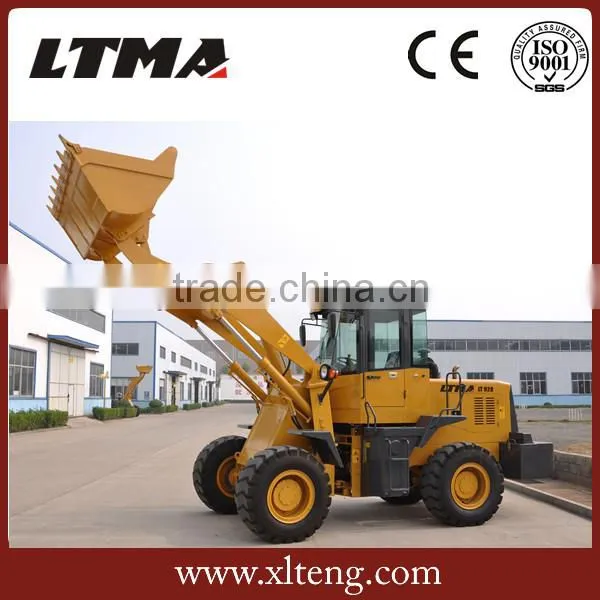

2 ton mini loader with Cummins engine
specifications of LT 920 mini loader with Cummins engine for sale:
Operating weight | 6.2t |
Rated load | 2t |
Bucket capacity | 1.2m³ |

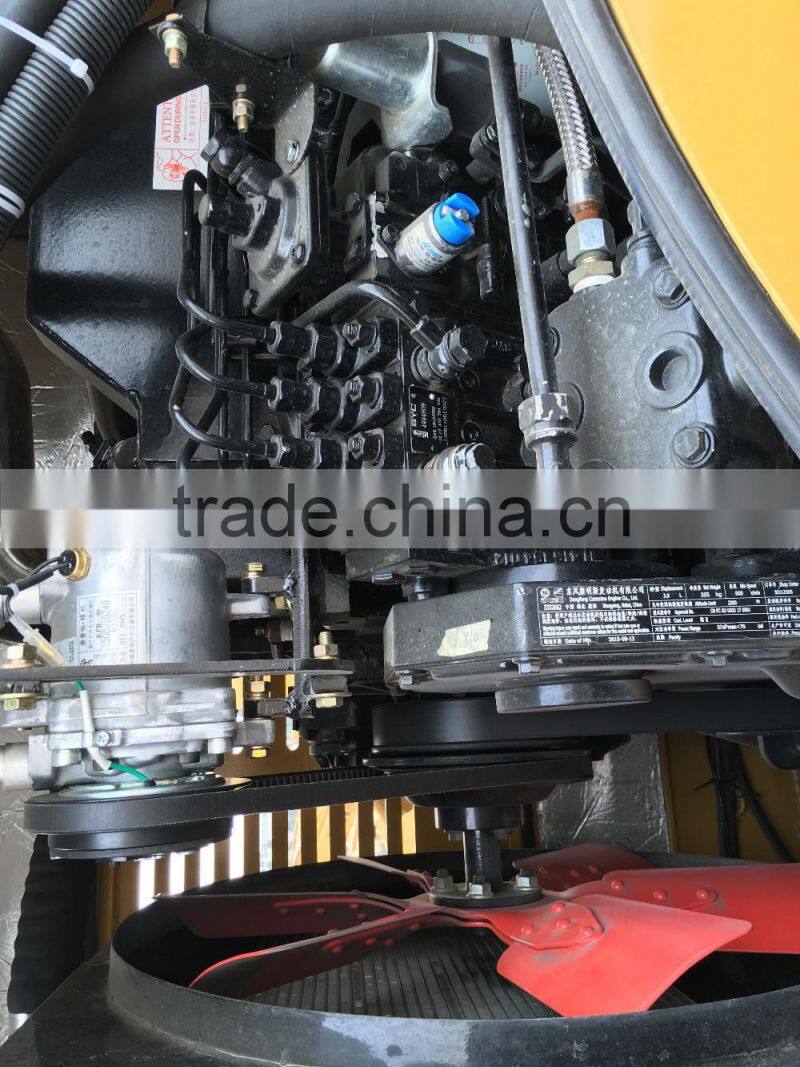

Engine model | Cummins 4BT3.9-C100 |
Rated engine power | 64KW |
Rated rotate speed | 2400r/min |
Max.torque | 221.9N.m |
Breakout force | 68KN |
Driving speed |
|
Forward Ⅰ | 0-10km/h |
Forward Ⅱ | 0-26km/h |
Reverse Ⅰ | 10km/h |
Reverse Ⅱ | 26km/h |
Gradeability | 30° |
Overall length | 6050mm |
Overall width | 1996mm |
Overall height | 3080mm |
Wheel base | 2315mm |
Track base | 1590mm |
Min.ground clearance | 450mm |
Max.dumping height | 2850mm |
Max.dumping reach | 905mm |
Raise time | 5s |
Total | 10s |
Tyre type | 16/17-20 |
Features and Advantages:
1).Competitive price:we manufacturer’s products are directly exported to buyers without the trading company in China
2).Exclusive Patent:6 proprietary technologies are applied in our loaders make them more fuel-efficient and safety, such as Auto Cooling Technology on brake system improve the safty.And the dust-proof layer make the axle more durable.

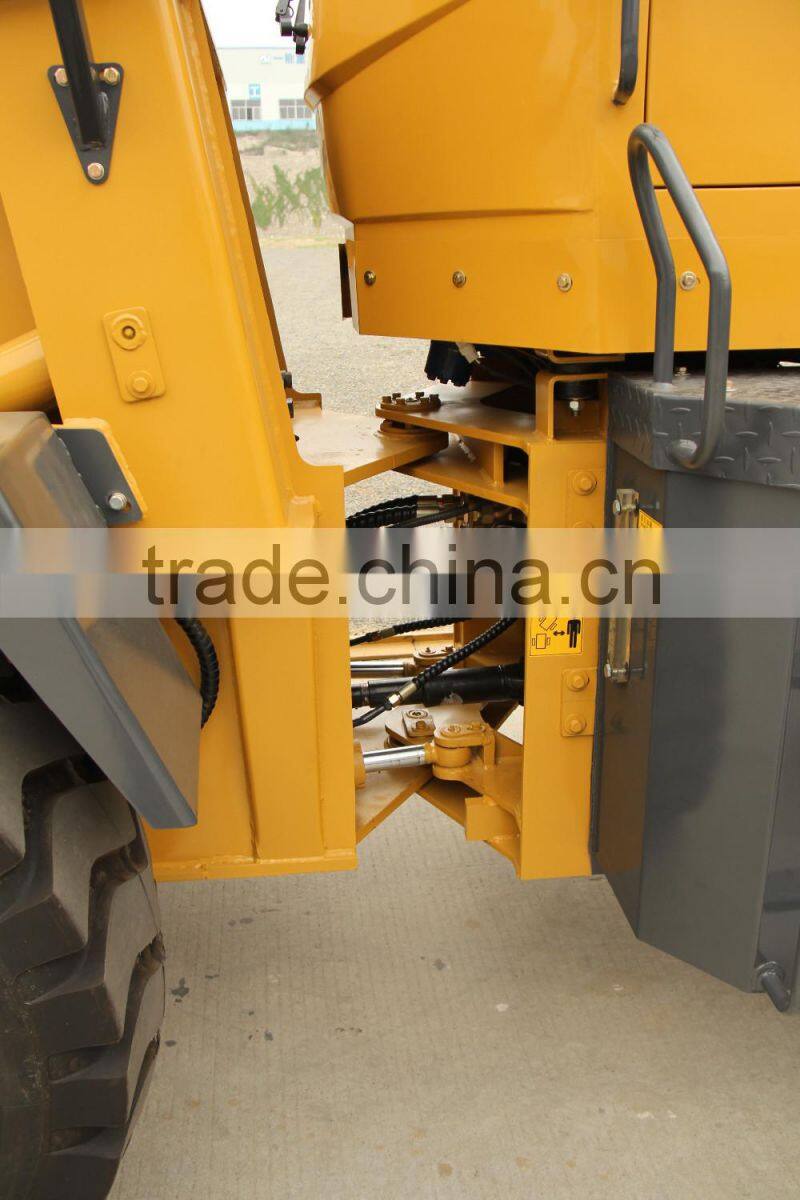

3).Details in Structure: Besides the special design of structure, full steel plate thickening, the thickness of lift arm and hinge plate reaches 60mm. Bigger hinge pin and hinge bearing raise the carrying capacity, machine more powerful. The exclusive dust-proof layer and sealed articulated points make the loader more durable.

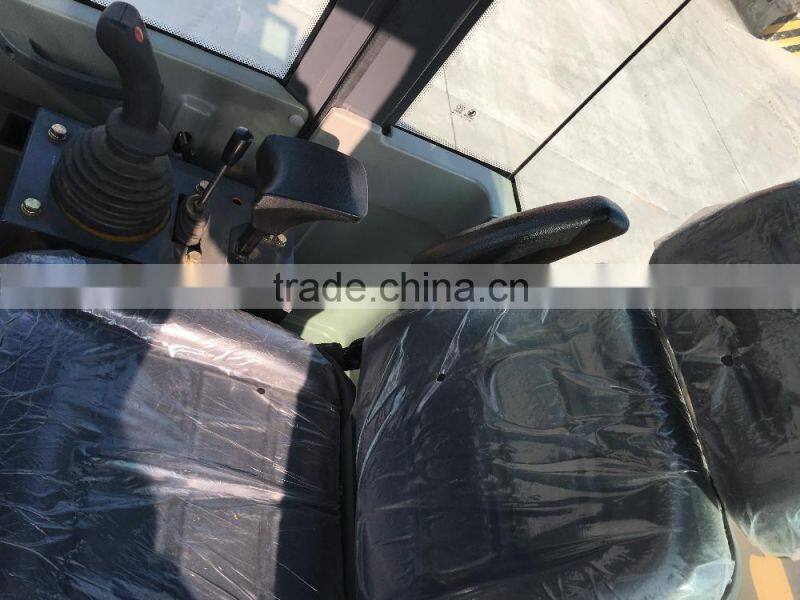

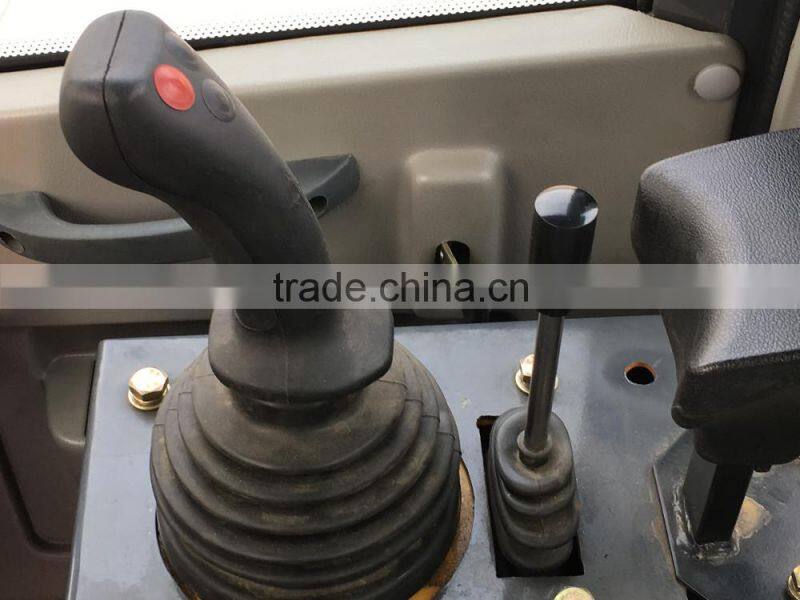

4). Novel appearance and humanized design: cabin with broad view. Single(double)-handle pilot control system, electronic control gearshift to ensure easy operation and more comfortable.
5). Hydraulic systems: To adopt confluence of double pumps and equivalents unloading hydraulic systems, rational use of engine power, reduce energy consumption effectively. Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.
6).Optional accessories:There are some accessories could be chosen by users ,such as engine, transmission,floating forks ,marble slab carrier ,manure fork and grab ,bucket ,fixed platform etc.
1.What's the Certificate do you have?
LTMA workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMA will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMA warranty policy for each models.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 90 days
mini loader for sale
