Low Cost Egg Poultry Farm Build Chicken Coop For Laying Hens In Angola
(1)Q235 international standard bridge steel cage
(2) Accessory: Gavanized feed trough
3MM PVC water pipe
Hot gavanized steel cage frame
PVC pressure reducer
PVC nipple drinker
(3) Lifeline: over 20 years to guarantee
(4)Advantage: Never go rustiness; Durable; low dead rate according to the reasonable cage size;be able to withstand at least 60kg weight.
| Type | 4 tiers (4tiers) | |
| Dimension of cage | 217*160*270(cm) | |
|
Dimension of cage (with feeding machine) |
218.5*250*340(cm) | |
| Dimension of cell | 43*60*41(cm) | |
| Capacity | cell/layer | 5 cells/layer |
| cell/chicken | 6 chickens/cell | |
| cage/chicken | 240 chickens/cage | |
| Accessory & Material | Cage | Q235 hot gavanized wire steel |
| Feed Trough | 4m/pc, 10mm hot galvanized iron sheet | |
| Water pipe | 4m/pc, 3mm white PVC | |
| Cage Frame | 20mm Steel tube | |
| Pressure reducer | PVC | |
| Nipple drinker |
PVC |
|

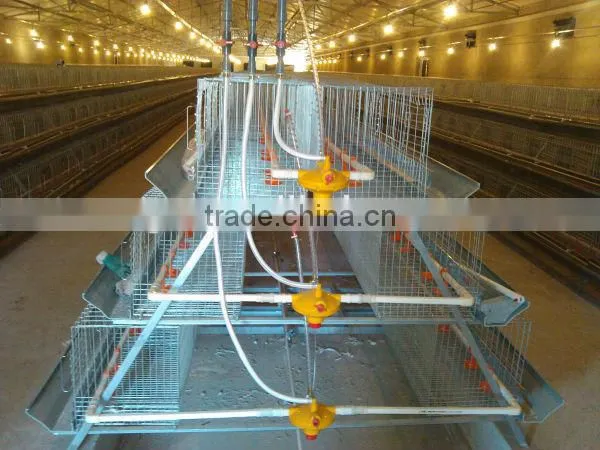

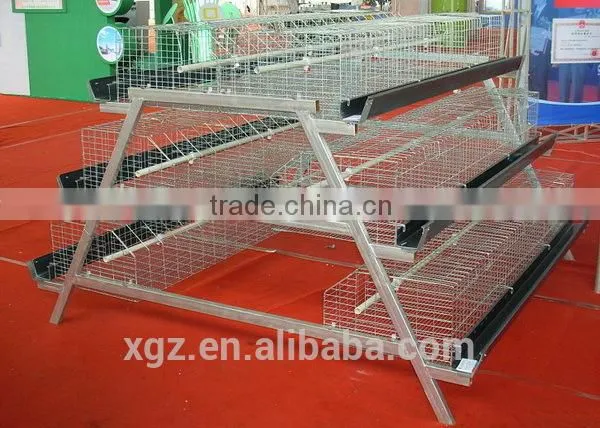

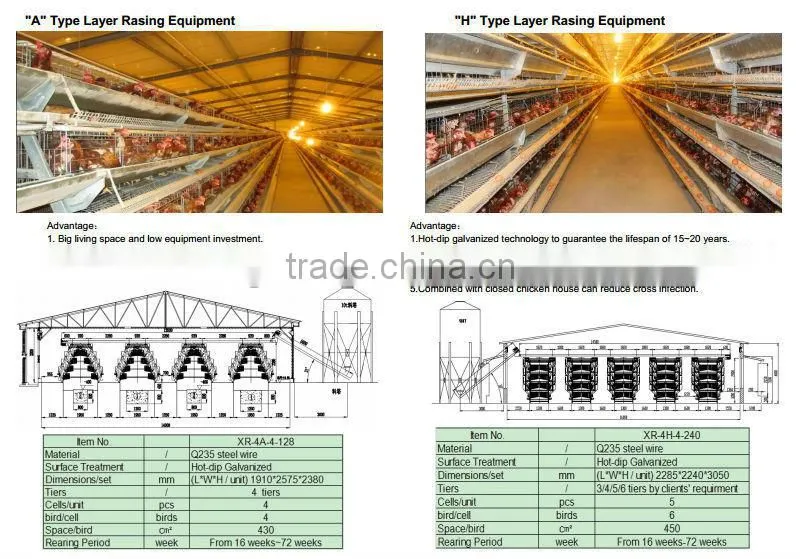

A type
|
Specification of A type cage |
item |
3-tier 5-door |
3-tier 4-door |
4-tier 5-door |
4-tier 4-door |
set capacity |
90 |
96 |
120 |
128 |
|
cell capacity |
3 |
4 |
3 |
4 |
|
weight |
45kg |
45kg |
60kg |
60kg |
|
cage size |
1950*350*380mm |
1950*350*380mm |
1950*350*380mm |
1950*350*380mm |
|
cell size |
390*350*380mm |
487.5*350*380mm |
390*350*430mm |
487.5*350*380mm |
Features:
1. Automated controlled system;
2. High rearing efficiency;
3. Designed for rearing and growing;
4. Floor saving and cost efficient;
5. Easy maintenance and operation
Detail product:
Materia: Low carbon steel wire
Surface treatment: Electro galvanize or hot galvanize Specialty: Easy to assemble. Feeding and easy management, save the space, effectively prevent infectious diseases, and increase the survival rate
Scalability: can be adjusted according to the size, can add automatic drinking water system, also available for one layer or layers adjustment.
If there are special specifications, also can be customized to sample.

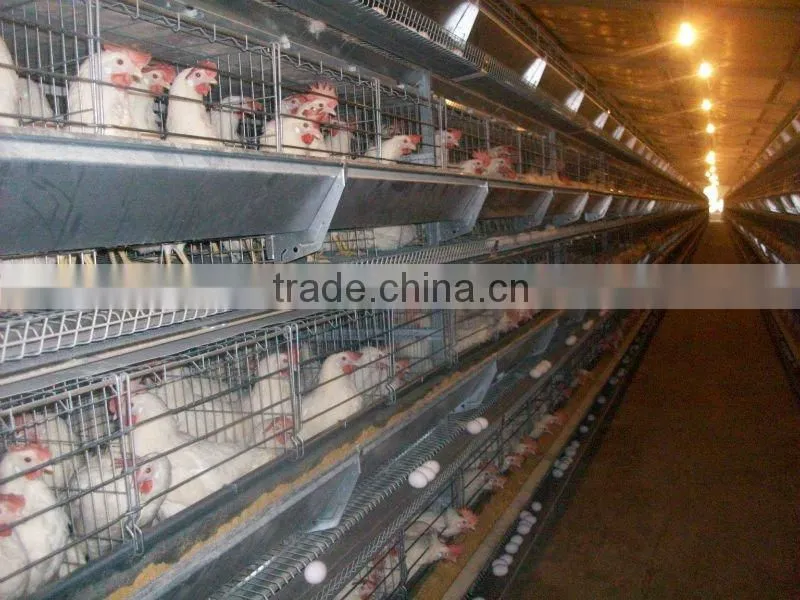

1. Layer chicken Cage
2. 3-6 tiers on each side( total 2 sides) of the frame
3. 8-10 nests on each tiers
4. 4-5 chicken per nest
5. Each cage accessories: drinking water, feeding trough, cage frame, PVC pipe, clip, each row cage has 3-6 water tank.
All of our products have already been authorized through ISO9001 quality system,We have specialized quality control departments,We have strict requirements to the quality with the products,Because we want to be responsible for every product quality sold,Our company has set up very good prestige for many years. We will offer the products resting assured to customer.
We can supply :

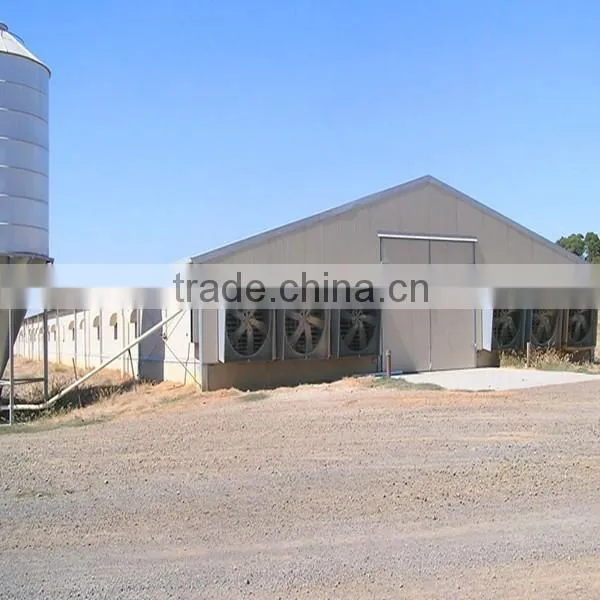

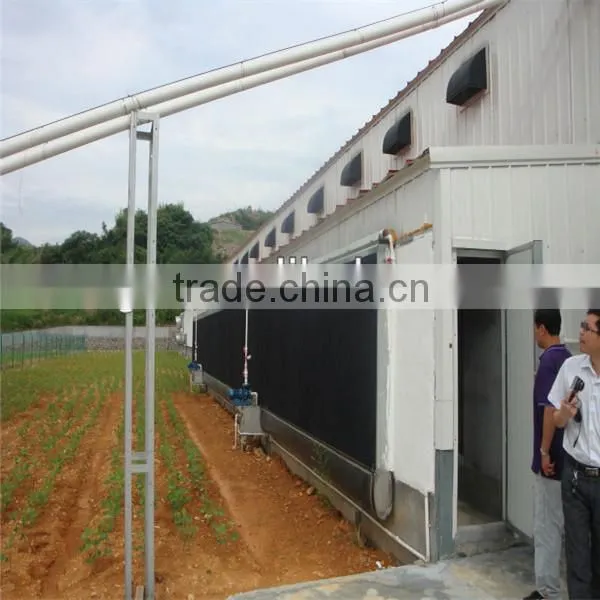

I. The steel structure chicken house
We can supply :
I. The steel structure chicken house
II. chicken equipment :
1.For the layer :
cage systerm
Drinking systerm

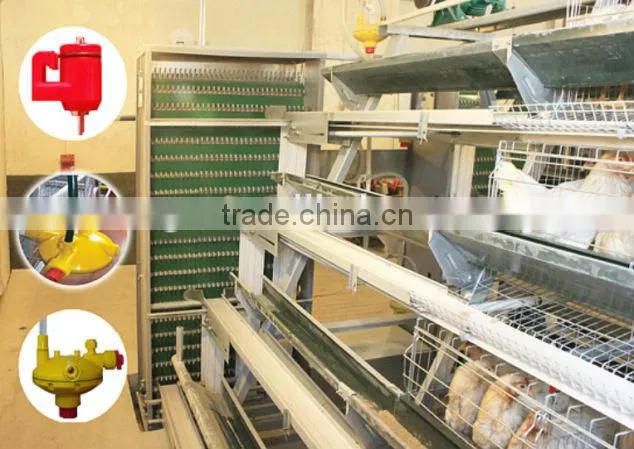

Nipple type drinking system
1. No water splashing or leaking, the bird house is dry and clean.
2. It’s convenient for birds to drink from all directions.
3. Material of nipple type faucet is stainless steel.
4. It’s convenient to maintain and replace broken nipple drinkers.
5. It’s convenient to observe the water pressure and adjust it.
6. Stable water pressure

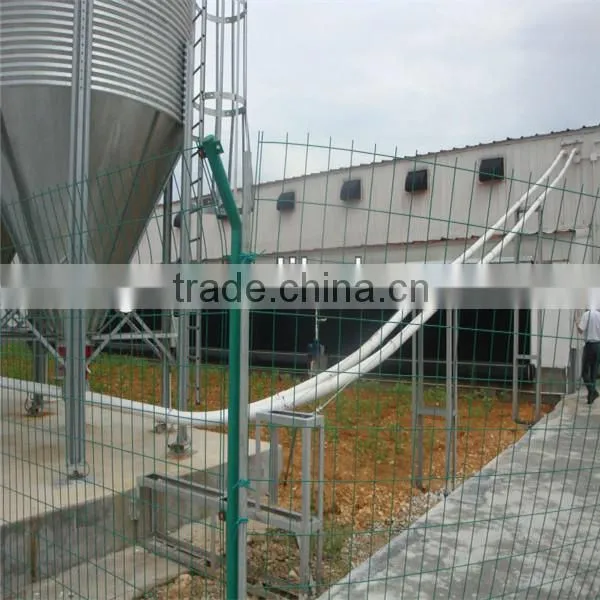

Main feeding line

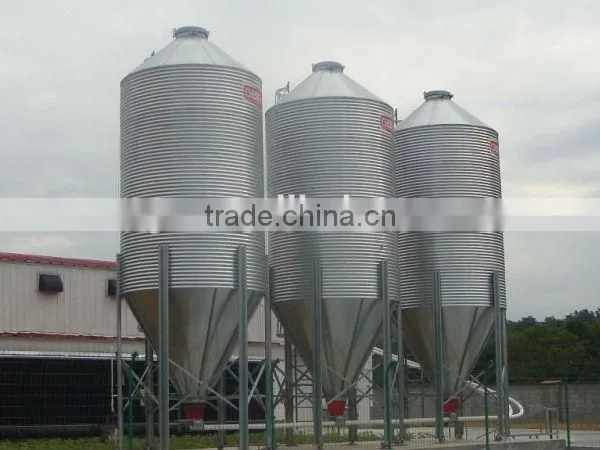

Main feeding system is a complete set of automatic feeding system, including a material conveying pipe, silo, auger, drive motor and a material level sensor. Main Feed line is mainly used to deliver feed from silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line, which can control the drive motor on and off to realize automatically feeding.
Automatic pan and nipple feeding line system
Performance parameters of feeding line system
(1) High-quality special driving reduction motor.
(2) V-shaped Bin(with hopper)
Bin volume: 115L, hopper volume :38L
Material: hot-dip galvanized sheet.
Nipple feeding line system
It can provide fresh and clean water for poultry which is crucial for the growth of Poultry.
The drinkers can be triggered from 360 degree which helps young birds start well and
makes drinking easier.
