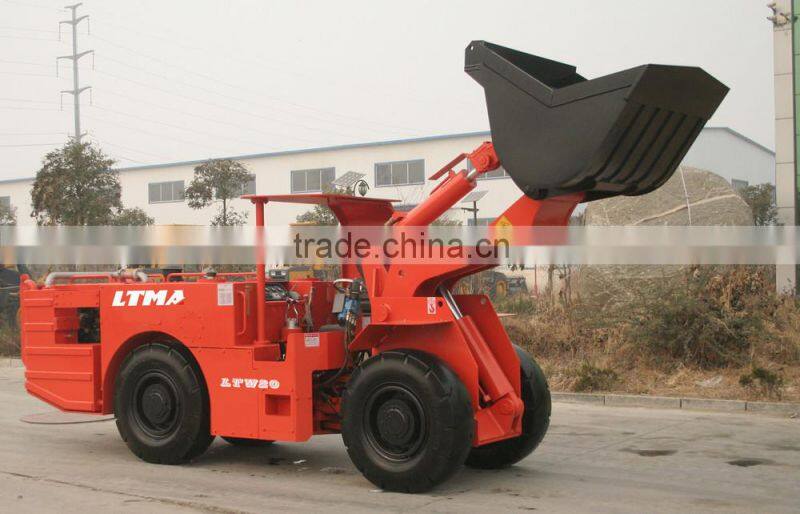

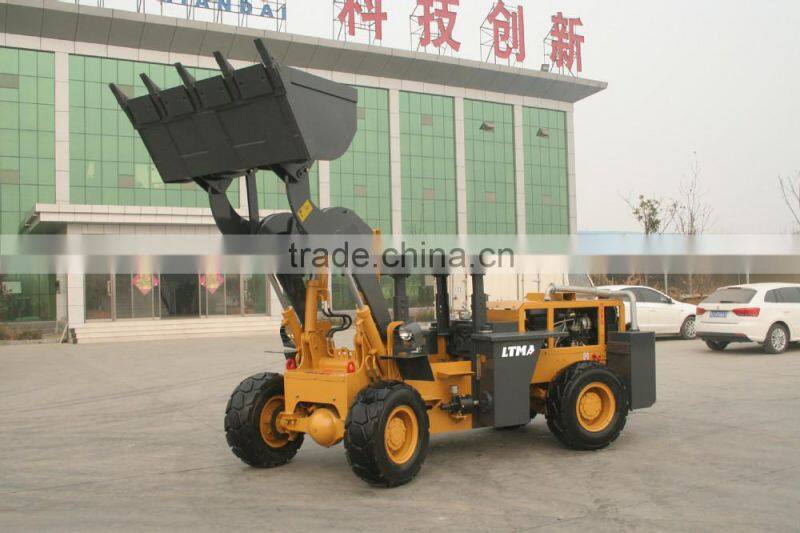

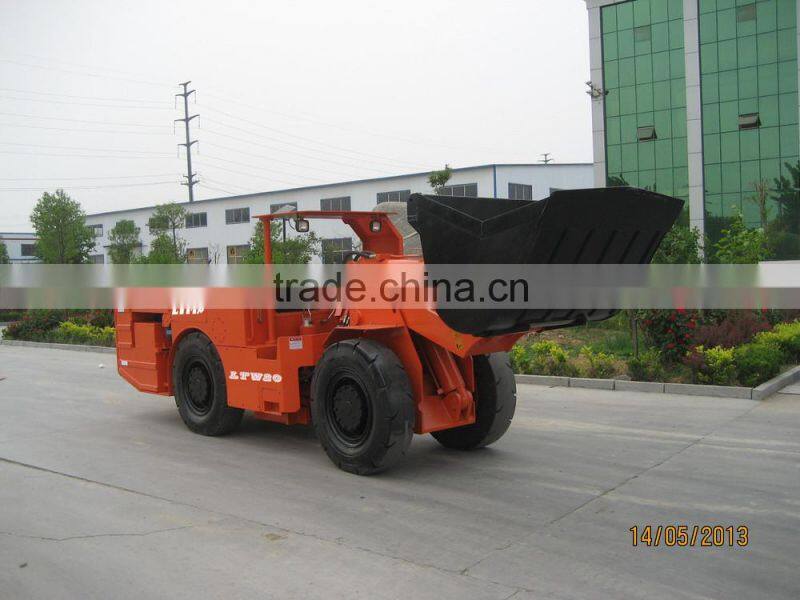

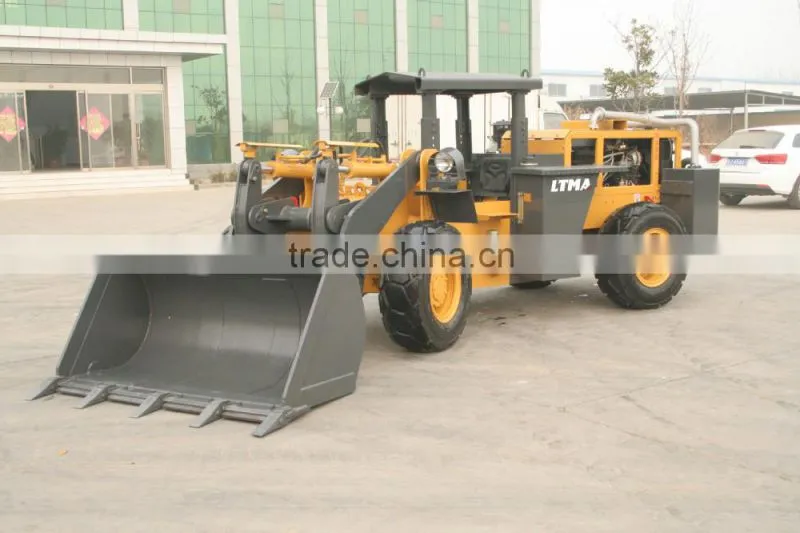

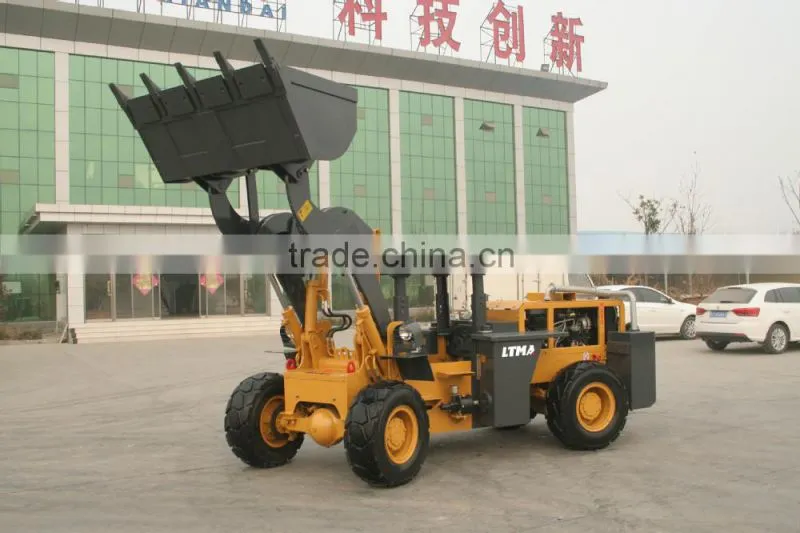

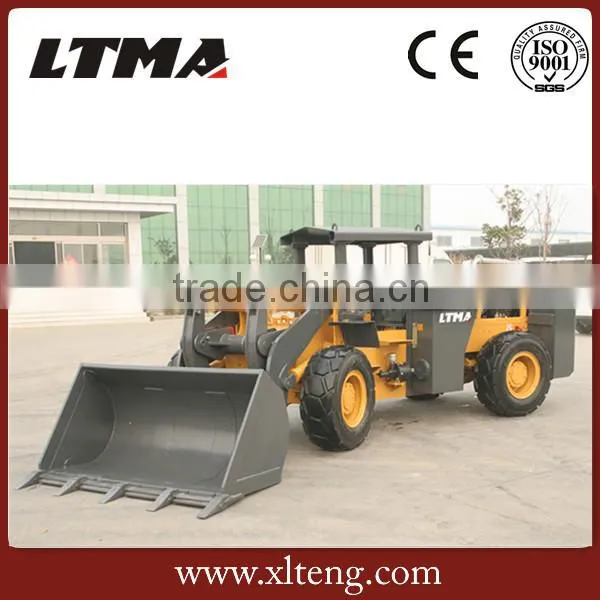

LTMA 2 ton underground loader
The Specifications of LTW20 underground loader for sale
Model |
LTW20 |
Bucket capacity(m3) |
0.8 |
Rated load(t) |
2.0 |
Weight(t) |
5.2 |
Traveling speed(km/h) |
0-24 |
Forward gear I |
0-7 |
Forward gear II |
0-24 |
Reverse gear |
I 0-7 II 0-24 |
Overall length (mm) |
5200 |
Overall width(mm) |
1800 |
1600 | |
Overall height(mm) |
1900 |
Wheel base(mm) |
2450 |
Wheel tread(mm) |
1420 |
Max dumping height(mm) |
1740/2200 |
Dumping reach(mm) |
945 |
Engine model |
4108/4105 |
Rated power (Kw) |
60/66 |
Tires type |
15/70-18 |
Chareacteristic
China famous brand YTO 4108 or YTO4105 turbo charge engine, hydraulic transmission and hydraulic steering(model 280).
Wheel reduction axle, air over hydraulic break system .
Low Type:Width less than 1.8m, height less than 1.9m, length less than 5.2m
High Type:Width less than 1.8m, height less than 2.3m, length less than 4.9m.
Narrow, low and short body suitable for ultra low and narrow roadway
Optional: Three-way catalytic converter, wheel protection chains
Optional: side dump bucket.
