CE Approved Portable Type Steel Sheet Shot Blasting Machine

Specifications

Portable Type Steel Sheet Shot Blasting Machine
Sand Blasting Machine
Direct Manufacturer
Professional Design
ISO CE

Portable Type Steel Sheet Shot Blasting Machine



Regarding to Portable Type Steel Sheet Shot Blasting Machine   :

Shot blasting is the Professionals' preferred solution

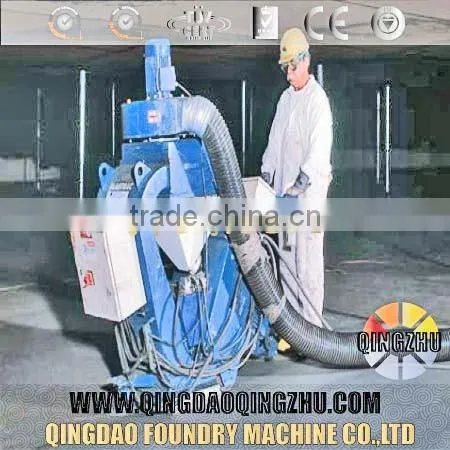

The blast-cleaning machine offers a high level of versatility for any size job site, its heavy duty blasting ability makes it ideal for applications such as airport maintenance and asphalt cleaning, the machine is a walk-behind machine that when connected to an appropriate our dust collector provides a virtually dust-free, and friendly environment.

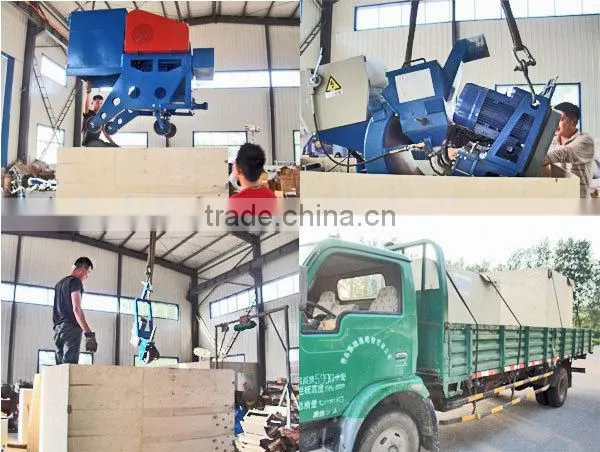

THE SHIPPING IN OUR WORKSHOP:



1) Portable shot blasting machine :

Portable Shot Blasting Machine For Industry Floor Coating Pretreatment
Portable Shot Blasting Machine For Steel Structure Rust Removal
Portable Shot Blasting Machine For boat deck Pretreatment
Portable Shot Blasting Machine For Ship Hull Rust Removal
Circular Type Oil Tank Shot Blasting Machine
Shot Blasting Machine for cleaning Marker Line of road
Shot Blasting Machine For Airport Runway Preventive Maintenance
Shot Blasting Machine for Tunnel Paving and Maintenance
Concrete Bridge Waterproof Surface Treatment Shot Blasting
Highway Surface Desliching Treatment Shot Blasting Machine
Steel Bridge Deck Anticorrosion Coating Shot Blasting Machine
Road Surface Roughen Shot Blasting Machine
Asphalt Pavement Maintenance Blasting Machine

2) Working Principle:
By adopting mechnical method, then abrasive(shot blasting) will be cast into working surface at high speed and in a certain angle,the abrasive will impact working surface to roughen and remove leftovers(impurity),Meanwhile the negative pressure(attractive force)caused by dust collector will suck impurities via airstream.Intact abrasive is automatically recycled,and the impurities and dust will drop into the dust collecting box.
The Portable shot blasting machine system works using a high performance airless, centrifugal blast wheel for propelling blast media at a high velocity in a controlled pattern and direction. Different surface profiles can be achieved by varying shot size, shot flow rates and machine travel speed.
The blast-cleaning machine is a versatile complement for any surface preparation applications, this machine is perfectly suited for industrial flooring preparation, decontamination, road maintenance, asphalt cleaning, airport maintenance and much more to receive advice or training about shot blasting or to find the best products for your surface preparation applications, contact us.

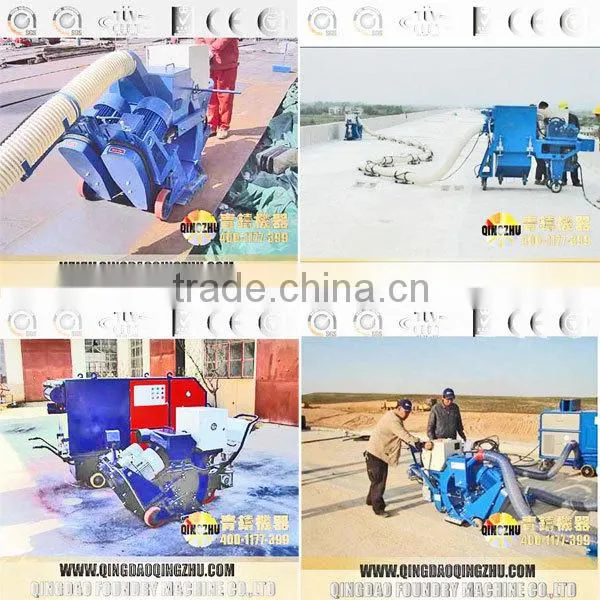

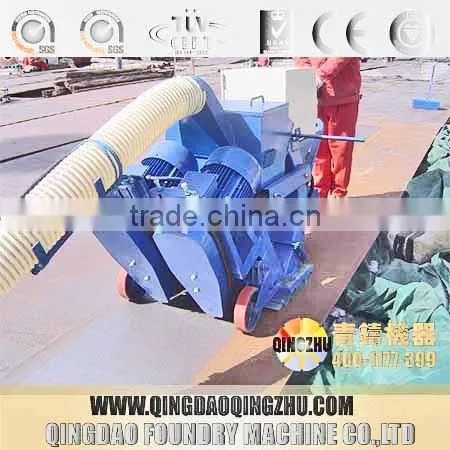

PORTABLE SHOT BLASITNG MACHINE CAN CLEAN ROAD SURFACE AND STEEL SHEET SURFACE



THE TECHNICAL DTDA FOR SHOT BLASTING MACHINE:

Item	Unit	QZLM-270	QZLM-600
Shot blasting width	mm	270	600
Shot blasting depth	mm	0.1-3.0	0.1-3.0
Shot blasting efficiency -Concrete	m2/h	180	400
Shot blasting efficiency -Steel plate	m2/h	15-25	75-100
Walking speed	m/min	0.5-30	0.5-30
Motor power	kw	11-15	2*11-15
Power supply		380V 50Hz 16A	380V 50Hz 60A
Shots consume	Kg/m2	150-200	150-200
Dimension	mm	1650*720*1200	1900*1080*1300































1)Applications
It is used to clean and prepare surfaces before applying a coating / paint / resin and tiles and to remove old coatings and rubber from roads and airport runways And to remove markings from roads, highways, runways, industrial floors and more And to regenerate grip and improve safety on roads and runways.
1.1. Shot Blasting Machine  for Concrete
Portable Shot Blasting Machine  prepares concrete for recoating or application of overlays
Portable Shot Blasting Machine  removes marking, dirt and old coatings
Portable Shot Blasting Machine  prepares parking lots and garage decks Portable shot blasting machine
Portable Shot Blasting Machine  cleans factory and warehouse floors
Portable Shot Blasting Machine  ideal for airport runways
Portable Shot Blasting Machine  used on bridge decks and highways
Portable Shot Blasting Machine  stencil patterns for decorative concrete applications



1.2. Shot Blasting Machine  for Steel
Portable shot blasting machine for marine industry: removes paint, rust and marine growth
Portable shot blasting machine cleans ship and aircraft carrier decks
Portable shot blasting machine removes nonskid coatings
Portable shot blasting machine cleans offshore platforms
Portable shot blasting machine prepares petroleum and water storage tank surfaces
Portable shot blasting machine removes rust and paint



1.3.Shot Blasting Machine  for Asphalt
Portable Shot Blasting Machine  removes tire rubber
Portable Shot Blasting Machine  removes residue
Portable Shot Blasting Machine  specializes in removing surface contamination
Portable Shot Blasting Machine  improves skid resistance
Portable Shot Blasting Machine  improves micro and macro textures

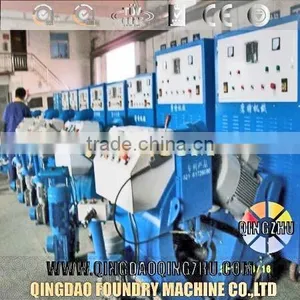

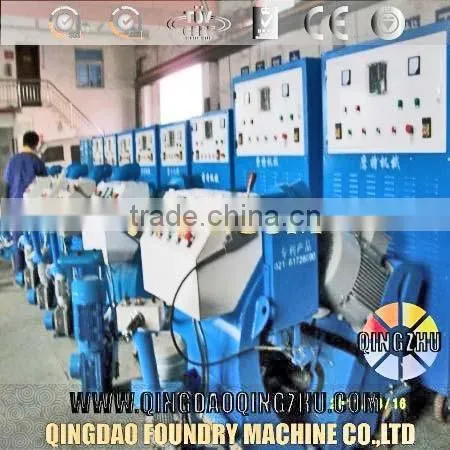

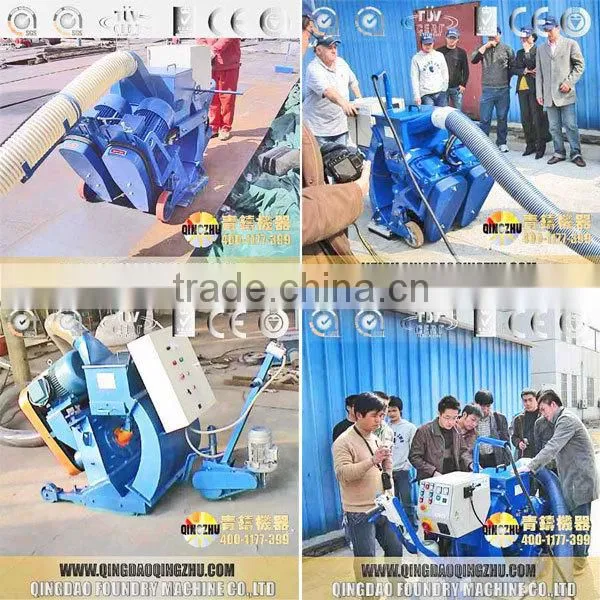

OUR SHOT BLASTING MACHINE IN OUR WORKSHOP:

Why choose us ?

1. Our company has passed "CE", "ISO9001" and bureau veritas certification .

2. 50 years experience with 20 professional engineers in our Qingdao Foundry Machine Co.,Ltd.
3. So many kinds of foundry machinery ---100 kinds of shot / sand blasting machines and 80 kinds of casting machines.
4. Considerate after-sale service , Technial Assistance and provide installing ,debugging and training on site
5. The company has its own foreign trade marketing team Industrial Corporation, first - class service standards for all clients.



We specialize in the design and manufacture of:

Shot Blasting Machine
Sand Blasting Machine and manual sandblasting pot
Foundry sand mixer
Core shooter
Jolt Squeeze Molding Machine
Sand preparation line for foundry (Clay and resin sand )
Automatic Moulding Machine(line)
The key part of shot blasting machine is blast wheel / wheel turbine :

Testing machine for shot blasting machine

With instruments, metalworking, grinder, rolling wire four workshops, complete production facilities.

There are many kinds of Shot Blasting Machines as follows:

Q69 Series Roller Conveyor Type Shot Blasting Machine
KSB Series Hook Type Shot Blasting Machine
Q37 Series Shot Blasting Machine For Engineering Machinery
Q311 Series Drum Type Shot Blasting Machine
Q26/Q36 Series Flatcar Shot (Spray) Type Cleaning Machine
Q76 Series Trolley Type Shot Blasting Machine
Q38 Continuous Pendant Chain Type Shot Blasting Machine
Q48 Step-By-Step Pendant Chain Type Shot Blasting Machine
Q58 Changeable Chain Type Shot Blasting Machine
ZJ0 Series Rotary Table Shot Blasting Machine
ZJ02 Series Spring Shot Blasting Machine
ZJ18 Series Wheel Roller Shot Blasting Machine
QGW Series Steel Tube Outer Wall Shot Blasting Machine
QGN Series Pipe Inwall Shot Blasting Machine
GN Series Belt Type Shot Blasting Machine
Q32 Series Apron Type Shot Blasting Machine
Q35 Series Turntable Type Shot Blasting Machine
QWD Series Wire Mesh Belt Type Shot Blasting Machine
QSHBSeries Rotary Hook Type Shot Blasting Machine
QX Series Wire Rod Shot Blasting Machine
QM Series Special Shot Blasting Machine For Anchor Chain
RE Series Shot Peening Machine For Strengthening For Mill Roll
CND Series Inclined Drum Shot Blasting Machine
SHB Series Turntable Shot Blasting Machine
Ql Series Squirrel-Cage Type Shot Blasting Machine
ZJ076 Series Leaf Spring Shot Peening Machine For Strengthening
SCC Series Spring Shot Peening Machine For Strengthening
SNC Series Bar Shot Blasting Machine

Our Services

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & Molding Machine & Core Shooting Machine for more than 40 years, competitive with good quality.
7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing

.
