M12-M18 PVC injection - panel type parameters male and female connector
- 1000000 Piece / Pieces per Month
- Ningbo
- T/T
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | sineyi | Model Number: | Y |
Type: | Other, waterproof connector |
Product Description

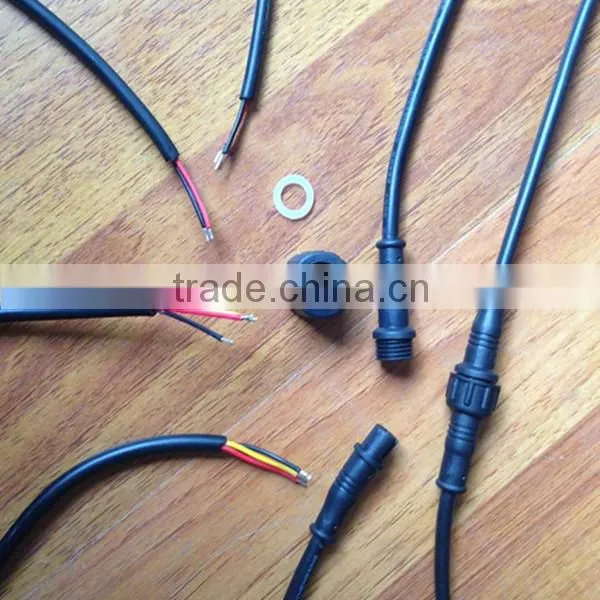

M12-M18 PVC injection - panel type parameters:
1: appearance, environment description
shape size (length * width * height) (mm): in order to prevail in kind (drawing for reference only).
the use of environmental conditions
Operating temperature: -25 ℃ ~ 105 ℃
Storage temperature: -25 ℃ ~ 85 ℃
Atmospheric pressure: (86 ~ 106) KPa
Relative humidity: ≤ 90%
Waterproof grade: IP65
2: product structure description
wiring way: with wire injection.
maximum diameter: diameter 9.0mm
connector contacts and deposit: 1.5.
contact: nylon plastic.
waterproof apron: silica gel. Appearance: Nylon 2.6 injection.
3: test
dielectric strength: according to GJB1217-1991 1005, under normal temperature and pressure, conductors and insulators, the test voltage (effective value) of AC 200V / 50Hz, 1min and no breakdown or arcing phenomenon, super leakage current of less than 2mA.
insulation resistance: according to GJB1217-1991 1005, under normal temperature and pressure, conductors and insulators, the test voltage (effective value) of DC 200V,Insulation resistance is greater than 10 MΩ.
contact resistance at room temperature and atmospheric pressure, waterproof connector male and female inserted state, contact resistance ≤ 10 MΩ.
salt spray test: connector is not inserted in accordance with the provisions of GJB1217-1991 1001, sodium chloride solution connector to withstand salt solution concentration of 5%,48h neutral salt spray test temperature 35 ± 2 ℃, does not appear to affect the performance of corrosion.
waterproof performance: under normal temperature and pressure, the male and the female plug combined with waterproof connector nut, according to IP protection grade, test time is 4h, the connector without Seepage phenomenon. Under the normal temperature cooling 30min test reached 3.1, 3.2, 3.3.
contact separation force: single hole separation force is 1.0-3.0N.
mechanical life: tested in accordance with 2016 GJB1217-1991 methods, the contact plug 3000, contact friction surface allows the coating has a slight Wear, but did not reveal its base metal, does not appear to affect the mechanical damage performance, test the contact resistance with testing part 3.3 requirements.
matched: free connectors of the same specifications with a fixed connector shall be inserted and separation.
environmental adaptability: test products under the conditions of Table 1 shall meet the requirements specified in Table 1.
IP68 waterproof connector M12 specifications:
Parameters
Number of cores, 2 cores
Rated current 10A
Rated voltage of 500V
Voltage 1500V
The contact resistance of <5m.
The insulation resistance of 2M.
The maximum diameter φ 10mm
The shell material of nylon fibre
Number of cores, 3 cores
Rated current 5A
Rated voltage of 500V
Voltage 1500V
The contact resistance of <5m.
The insulation resistance of 5M.
Number of cores, 4 cores
Rated current 10A
Rated voltage of 500V
Voltage 1500V
The contact resistance of <5m.
The insulation resistance of 2M.
Number of cores, 5 cores
Rated current 5A
Rated voltage of 400V
Voltage 1000V
The contact resistance of <10m.
The insulation resistance of 5M.
Number of cores, 6 cores
Rated current 5A
Rated voltage of 400V
Voltage 1000V
The contact resistance of <10m.
The insulation resistance of 5M.
Number of cores, 7 cores
Rated current 5A
Rated voltage of 300V
Voltage 800V
The contact resistance of <10m.
The insulation resistance of 5M.
Number of cores, 8 cores
Rated current 5A
Rated voltage of 300V
Voltage 800V
The contact resistance of <10m.
The insulation resistance of 5M.
