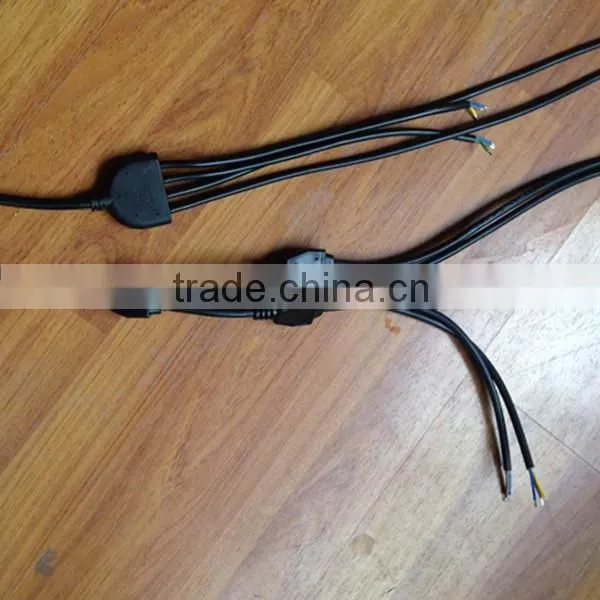

Help Center1 Input 5 Outputs IP68 Wire Spliiter LED Lights Y Connector
Related Products
-
Waterproof Electric Y Type Multi Connector One in Three OutUS$ 0.05 - 0.6MOQ: 1000 Pieces -
IP 68 Waterproof Connector With PP Material,EC03680-0001-BF(3PIN 2500V 16A)US$ 0.2 - 0.4MOQ: 1000 Pieces
-
LED, Electric Equipment, IP68 Waterproof ConnectorUS$ 1.9 - 1.9MOQ: 1000 Pieces
-
IP68 Waterproof Connector 3 Core Nylon PA66 Plug Male ConnectorUS$ 0.2 - 0.4MOQ: 1000 Pieces
-
IP68 Small and Short Cable to Board Waterproof ConnectorUS$ 0.62 - 0.62MOQ: 1000 Pieces
Y type multi specifications:
1,Operating temperature: -25 ℃ ~ 85 ℃
Storage temperature: -25 ℃ ~ 85 ℃
Atmospheric pressure: (86 ~ 106)
KPa waterproof grade: IP65
2: Structure description
Shape size (length * width * height) (mm): see drawings.
Pinout: Skinning dipping tin
contact plastic material: PVC.
3: Test
In accordance with the GJB1217-1991 1005 method, under normal temperature and pressure, conductors and insulators, the test voltage (effective Value) AC 1500V / 50Hz, 1min and no breakdown or arcing phenomenon, super leakage current of less than 2mA.
In accordance with the GJB1217-1991 1005 method, under normal temperature and pressure, conductors and insulators, the test voltage (effective value) of DC 500V, insulation resistance is greater than 1000M.
Connector is not inserted in accordance with the provisions of GJB1217-1991 1001, connector to withstand salt solution concentration of 5% Sodium chloride solution, 48h neutral salt spray test temperature 35 ± 2 ℃, does not appear to affect the performance of corrosion.
4: Core wire: 2x.0.75mm2
Core wire covering material: rubber.
Wire color: Brown and blue.

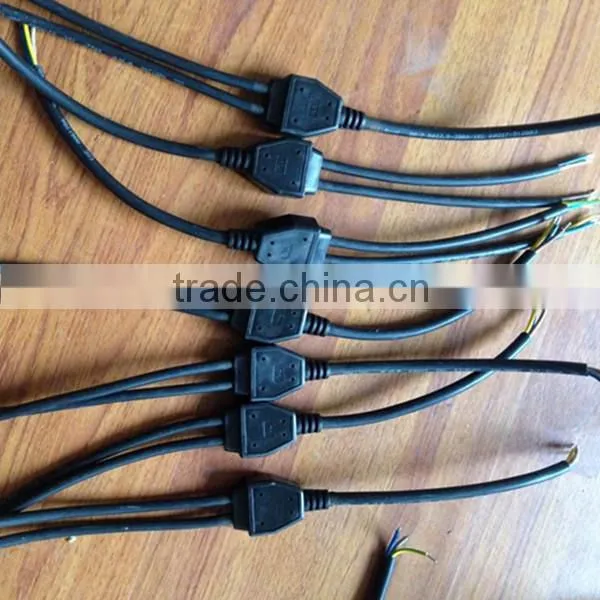

5: Y type multi split core waterproof connector wire specifications:

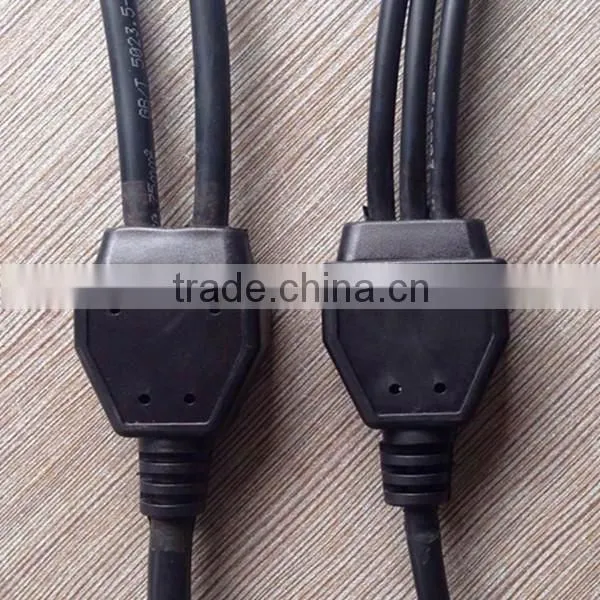

1)Y type one to two core waterproof connector wire:
Into wire core number: one, out wire core number: two, rated current: 15A, rated voltage: 500V, insulation resistance: >2000M Ω, housing material: PVC/ nylon;
2)Y type one to three three core waterproof connector wire:
Into wire core number: one, out wire core number: three, rated current:10A, rated voltage: 500V, insulation resistance: >2000M Ω, hosing material: PVC/ nylon;
3)Y type one to four core waterproof connector wire:
Into wire core number: one, out wire core number: four,rated current:5A, rated voltage: 500V, insulation resistance: >2000M Ω, case material: PVC/ nylon;
4)Y type one to five core waterproof connector wire:
Into wire core number: one, out wire core number: five, rated current:3A, rated voltage: 500V, insulation resistance: >2000M Ω, case material: PVC/ nylon;
5)Y type two to three core waterproof connector wire:
Into wire core number: two, out wire core number: three, rated current:10A, rated voltage: 500V, insulation resistance: >2000M Ω, case material: PVC/ nylon;
6)Y type two to four core waterproof connector wire:
Into wire core number: two, wire core number: four, rated current: 5A, rated voltage: 500V, insulation resistance: >2000M Ω, case material: PVC/ nylon;
7)Y type two to five core waterproof connector wire:
Into wire core number: two, wire core number: five, rated current:3A, rated voltage: 500V, insulation resistance: >2000M Ω, case material: PVC/ nylon
