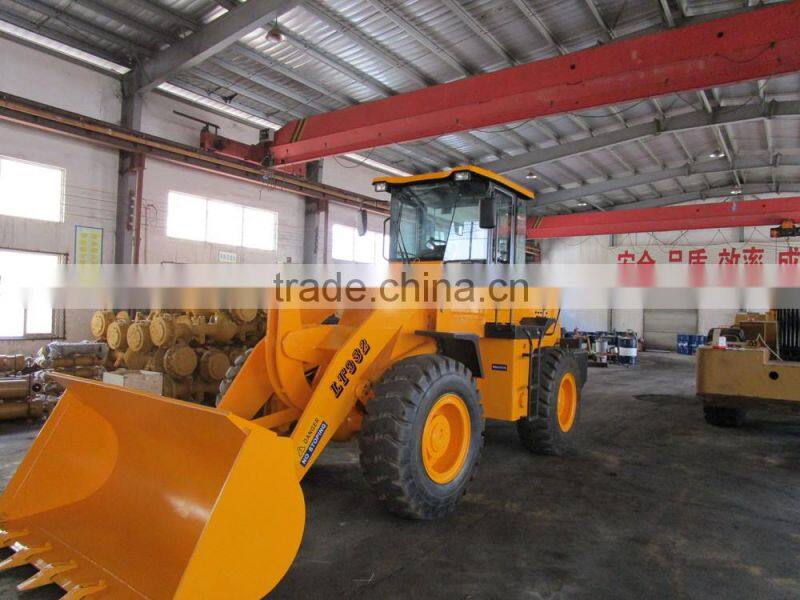

Earth Moving Machine LTMA 3 Ton Front End Loader Quality Choice
- ANY PORT OF CHINA/ XIAMEN PORT
- T/T D/P D/A PayPal
You May Like
Product Details
| Condition | New | Brand Name | LTMA | |
| Model Number | LT 936 | Place of Origin | Fujian, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 7200*2480*3220 | Rated Load | 3T | |
| Certification | CE\SGS | Warranty | 1 YEAR | |
| After-sales Service Provided | Overseas third-party support available |
Product Description

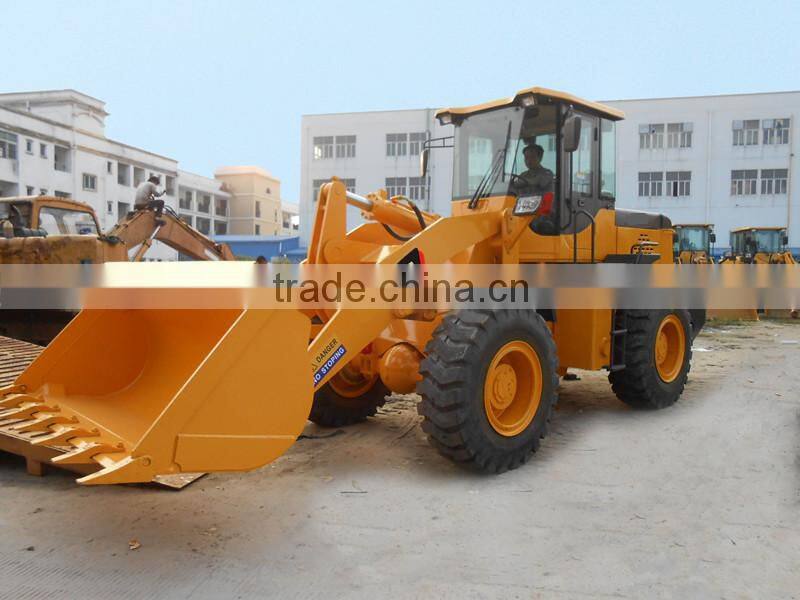

earth moving machine lifting capacity ranges from 1.8 ton - 6 ton 3 ton front end loader

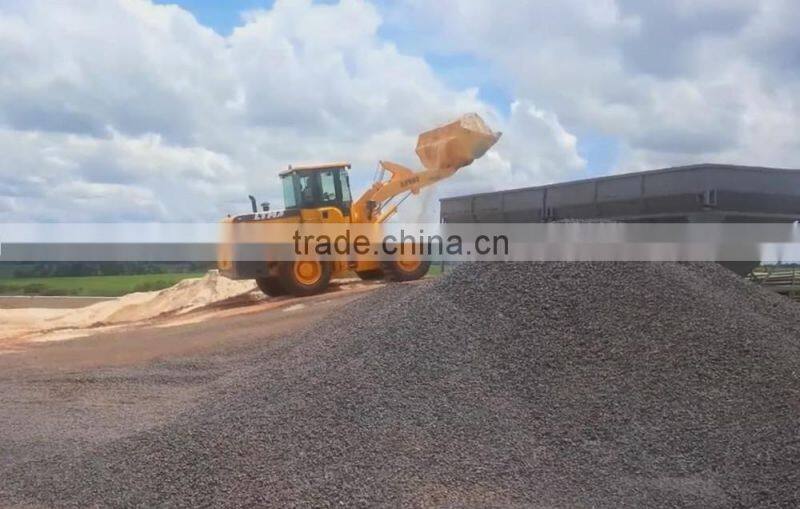

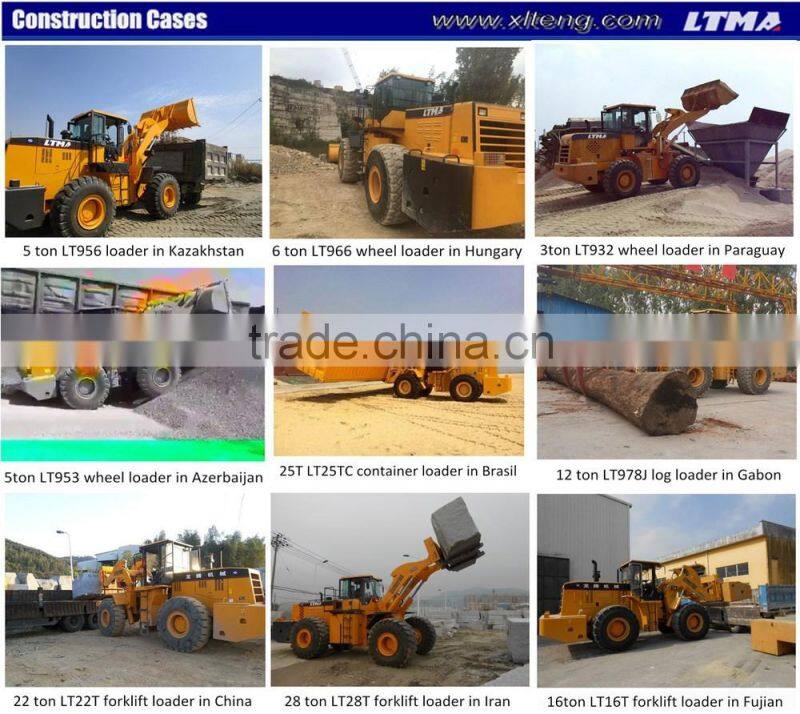

LT932 front end loader working in Paraguay
The specifications of China earth moving machine 3 ton front end loader LT932 :
Operating Weight | 9500kg |
Standard Bucket capacity | 1.7m3 |
Rated Load | 3000kg |
MAX-Tractive Force | ≥100KN |
MAX-Breakout Force | 98KN |
MAX-Climbing Angle | 30° |
MAX-Dumping Height | 3400mm |
Dumping Reach | 1155mm |
Overall dimension(L×W×H) | 7200×2250×3220mm |
Engine | WEICHAI DEUTZ |
Model | WP6G125E22 |
Type | 4-Stroke, Inline diesel engine, turbo charged direct-injection |
Qty of Cylinder-Bore/Stroke | 6-105×120mm |
Rated Power | 92KW |
Rated Speed | 2200r/min |
Transmission System |
|
Torque Convertor | Single-stage four-element double-turbine hydraulic converter |
Transmission | Planetary hydraulic gearbox |
Gear Shift | 2 Forwards, 1 Reverse |
Service Speed | Forward 1 gear shitf………0-11km/h |
| Forward 2 gear shitf………0-38km/h |
| Reverse………………………0-16km/h |
Tyre Type | 17.5-25 |
Tyre Pressure | 0.27-0.32MPa |
Sheering System |
|
Type | All Hydraulic Coaxial Flow Amplificationg Steering System |
Sheering Angle | 35° Each Side |
Min-Turning Radius | Outside of bucket 6415mm |
| Outside if the rear tyre 5720mm |
Hydraulic System |
|
System Working Pressure | 16.0MPa |
Boom Lifting Time | ≤6.0s |
Total | ≤11s |
Brake System |
|
Service Brake | Air Over Hydraulic Disc Brake |
Parking brake | Flexible shaft control and clamp-type disc parking brake |
Fill Capacity |
|
Fuel tank | 180L |
Hydraulic tank | 200L |

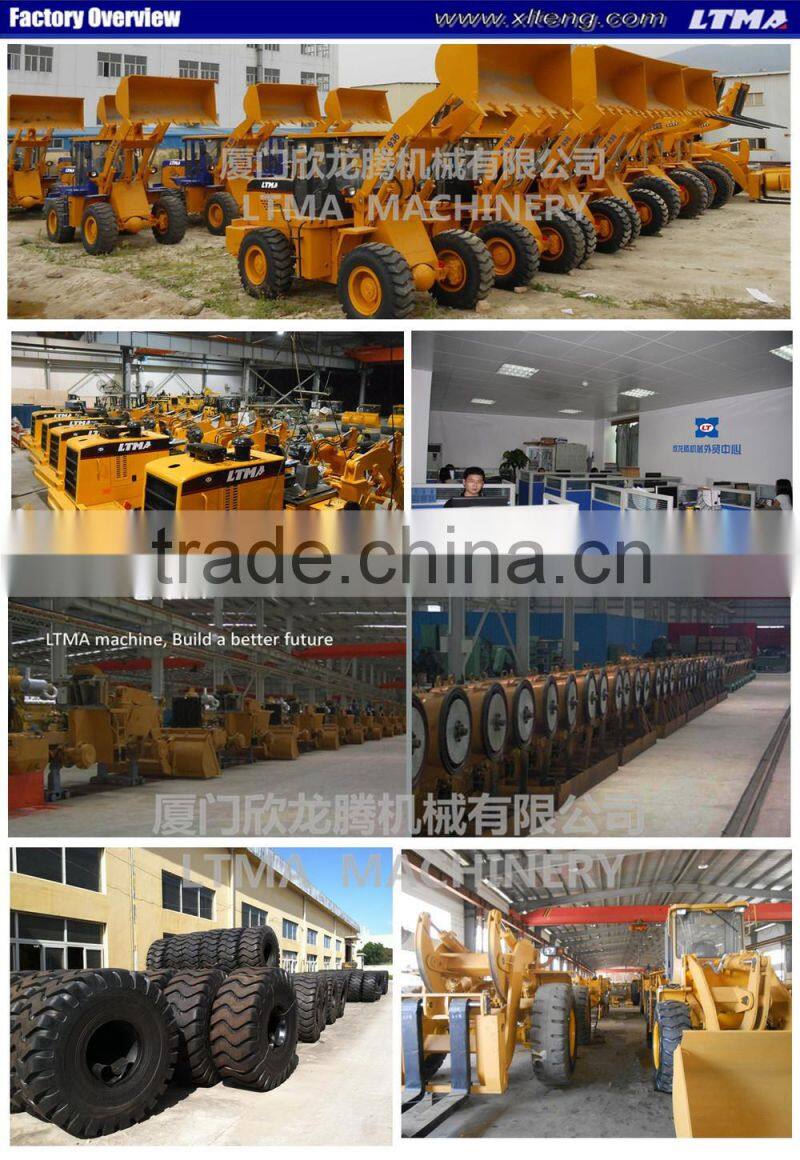

1). Quality: With CE and ISO certificate, 10 km away from the Xiamen Port, China, 14 years' manufacture's experience specially in loader. LTMA have the customers covers more than 30 districts and zones in the world.
2) Competitive price and service: we manufacturer’s products are directly supply the after-sale service to our customers| agents, and exported to buyers without the trading company in China

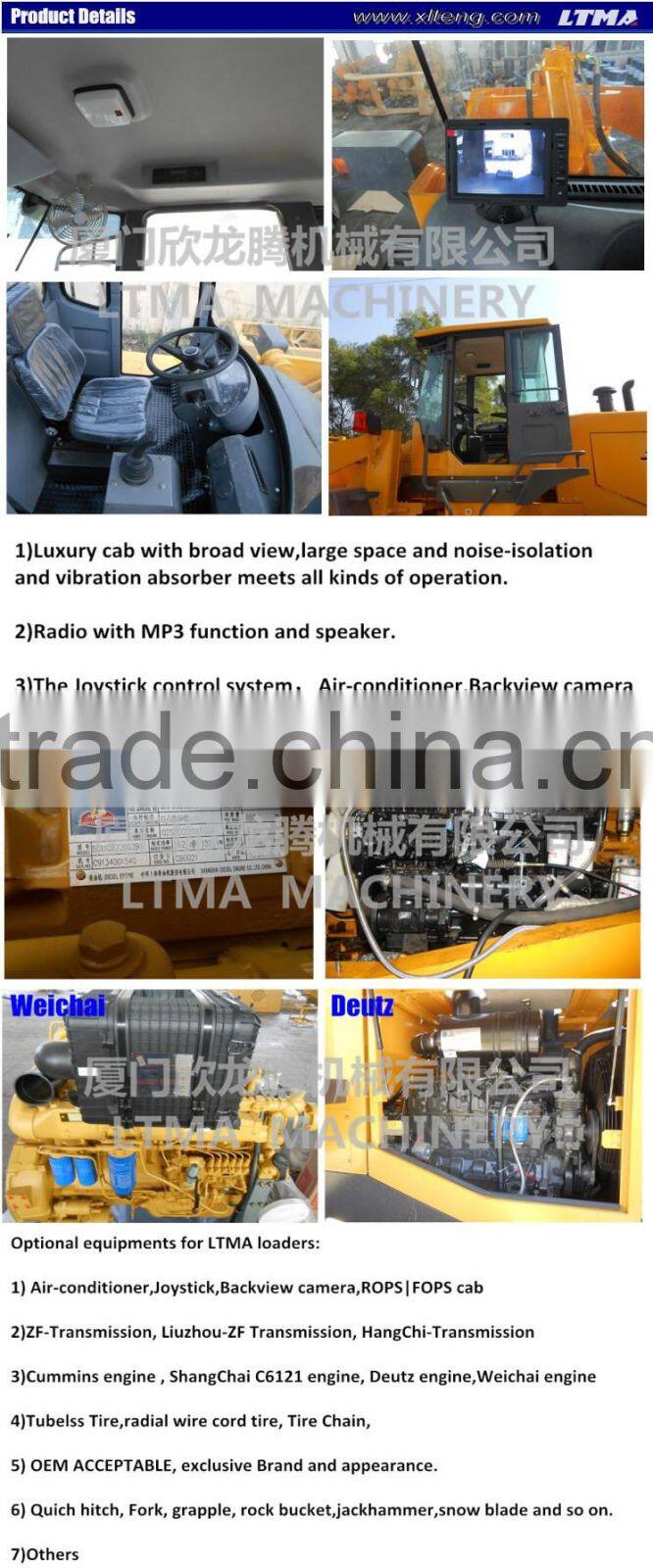

3). Customizing and Optional accessories:There are some accessories could be chosen by users ,such as engine, transmission,floating forks ,marble slab carrier ,manure fork and grab ,bucket ,fixed platform etc.we can customzing the machines specially for your requirement.
1.What's the Certificate do you have?
LTMA workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements. LTMA neverrecruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMA will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMA warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 90 days
2015 Chinese manufacturer LTMA China earth moving machine LTMA 932 3 ton front end loader price
front end loader for sale ..
