US$ 12,500 - 18,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
LTMA
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2500kg Rated Load Forklift Battery 48vUS$ 8,000 - 10,000MOQ: 1 Set -
LTMA Diesel Isuzu Engine Forklift Truck With Three Stage MastUS$ 8,000 - 10,000MOQ: 1 Set
-
5t Diesel Forklift Duplex MastUS$ 8,000 - 10,000MOQ: 1 Set
-
Hot Sale Material Handling Equipment 2.5 Ton Forklift Quality ChoiceUS$ 7,000 - 10,000MOQ: 1 Set
-
Material Handling Equipment 5 Ton Diesel Forklift With CE CertificateUS$ 16,000 - 20,000MOQ: 1 Set
Condition
New
Place of Origin
Fujian, China
Brand Name
LTMA
Model Number
FB25
Type
Powered Pallet Truck
Power Souce
AC Motor
Rated Loading Capacity
2500kg
Max. Lifting Height
3M-6M
Fork Length
1070
Fork Width
122
Overall Dimensions
2285*1150*1995
Certification
CE/ISO
After-sales Service Provided
Overseas third-party support available
Product Description

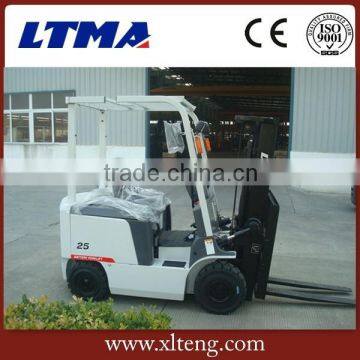

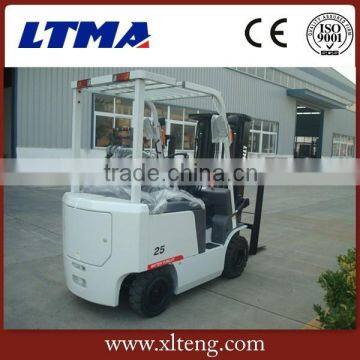

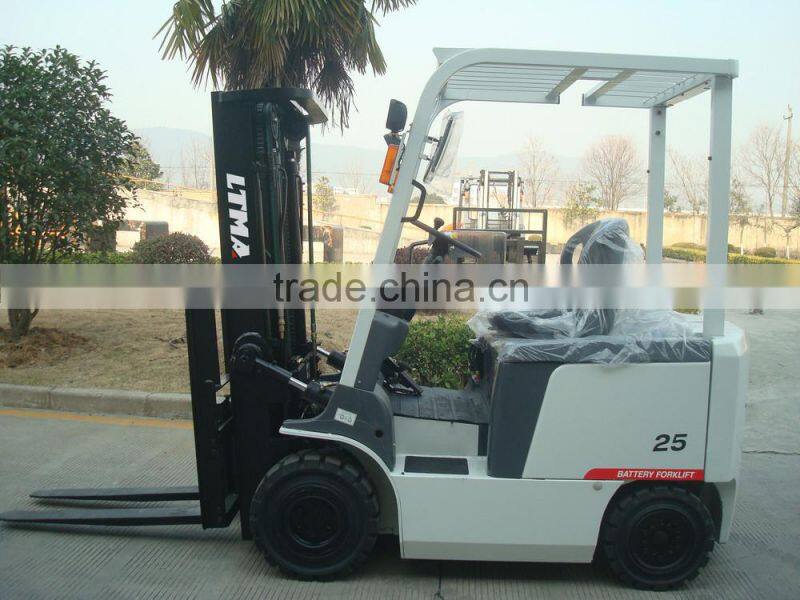

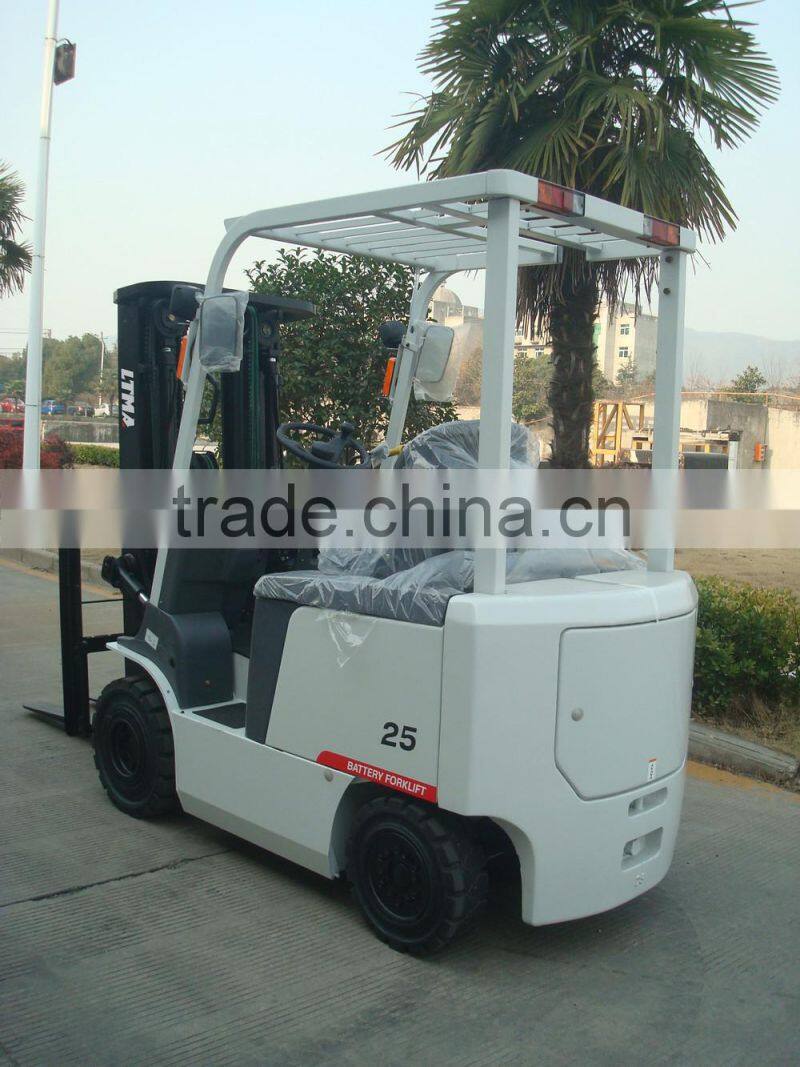

CE certificate 48v forklift electric motor
| Technical secification of battery forklift-AC motor | |||||
| Features | 1 | Manufacturer | LTMA | ||
| 2 | Model | FB25 | |||
| 3 | Load capacity | kg | 2500 | ||
| 4 | Load center | mm | 500 | ||
| 5 | Power unit | Battery ,diesel ,gasoline | Battery | ||
| 6 | Operator type | Driver/seat | |||
| 7 | Tire type | Front/rear | Air tires | ||
| 8 | Wheel | Number Front/rear | 2X/2 | ||
| Dimension | 9 | Max. lifting height | mm | 3000 | |
| 10 | Free lift | mm | 160 | ||
| 11 | Fork size | L*W*T | mm | 1070*122*40 | |
| 12 | Tilt range | Mast forward/backward | deg | 6-12 | |
| 13 | Overall length(without fork) | mm | 2285 | ||
| 14 | Total width | mm | 1150 | ||
| 15 | Mast height (fork lowering) | mm | 1995 | ||
| 16 | Overall height fork raised | With backrest | mm | 4030 | |
| 17 | Height to head guard | mm | 2145 | ||
| 18 | Turning raduis(outside) | mm | 2000 | ||
| 19 | Front face of fork to front axle | mm | 445 | ||
| 20 | Min. right angle stacking aisle | not add load length&clearence | mm | 1935 | |
| Performance | 21 | Speed | Max Travelling full/no load | km/h | 13.5/14.5 |
| 22 | Lifting full load | mm/s | 240 | ||
| 23 | Lifting no load | mm/s | 450 | ||
| 25 | Gradeability | full load | % | 12.5 | |
| Weight | 26 | Truck weight | kg | 3820 | |
| 27 | Weight distribution | Full load front/rear | kg | 5425/895 | |
| 28 | No load front/rear | kg | 1425/2395 | ||
| Frame | 29 | Tires | Number | front/rear | 2/2 |
| 30 | Model | front axle | 21x8-9-16PR | ||
| 31 | rear axle | 18x7-8-14PR | |||
| 32 | Wheelbase | mm | 1400 | ||
| 33 | Tread | Front/rear | mm | 955/950 | |
| 34 | Ground clearence | At lowest point(mast) | mm | 110 | |
| Frame | mm | 115 | |||
| 35 | Brake | Service brake | Hydraulic-foot peda | ||
| Parking brake | Mechanical lever | ||||
| Electric motor and controller | 36 | Battery | Voltage/capacity | V/AH/5hr | 48V-565 |
| 37 | Weight (standard) | kg | 945 | ||
| 38 | Electric motor | Driving motor | kw/60min | 8 | |
| 39 | Hydraulic driving motor | kw/5min | 8.6 | ||
| 40 | Control type | Electric driving | 1 | ||
| 41 | Operating pressure | Hydraulic system pressure | kg/cm² | 175 | |
| NOTE: 1.Drving AC choppedwave control mode /lifting AC voltage control mode | |||||
Packaging & Shipping
Our Services
CE certificate 48v forklift electric motor After-sale service
We manufacturers,(LTMA) always treat the after-sale service more important than sale. Nowadays more than 10 agents around the world can supply LTMA professional after-sale service.
All the products of LTMA supplied with one year or 2000 workling hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product’s quality certificate.
