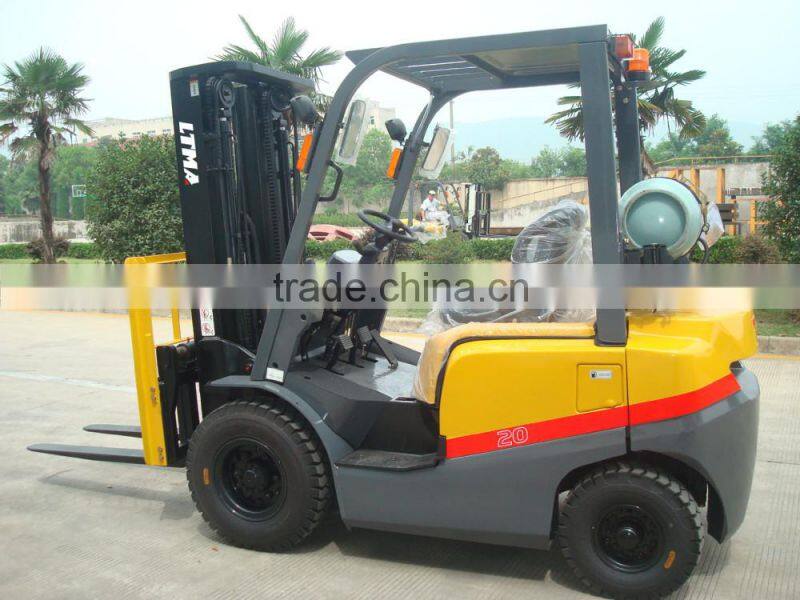

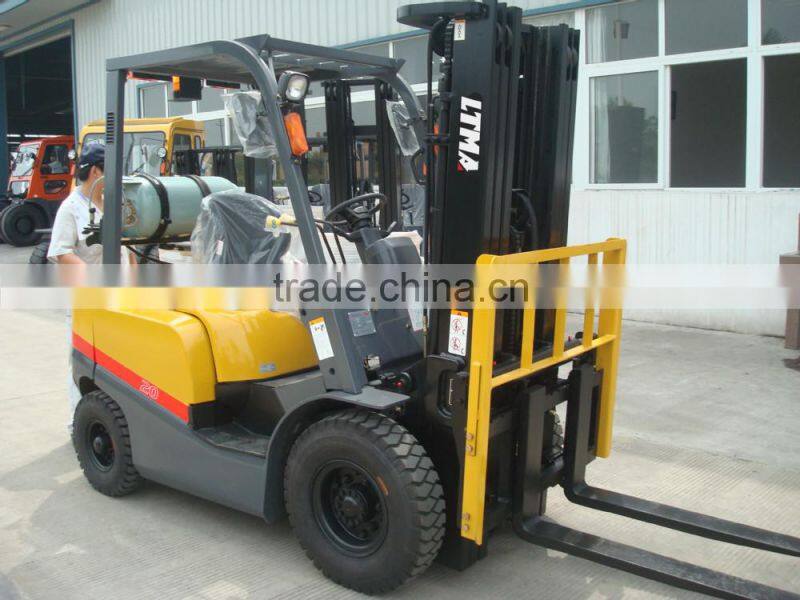

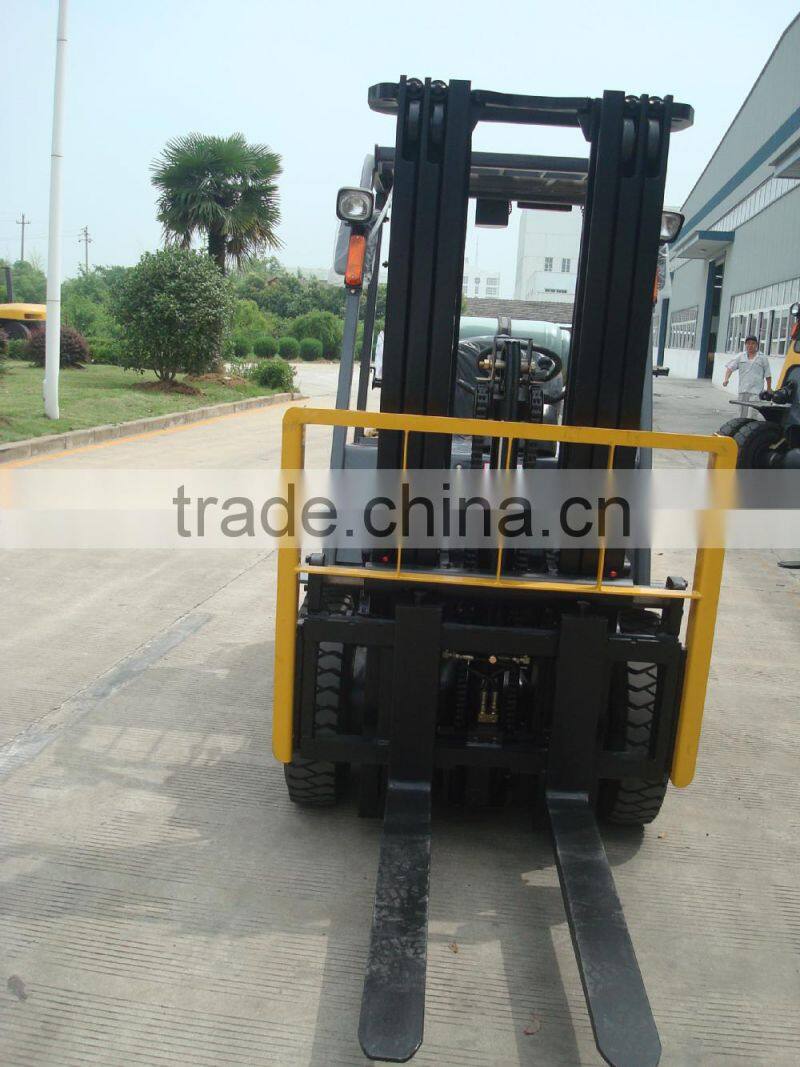

2016 Gasoline/LPG Dual Fuel Forklift Truck

Xiamen Xinlongteng Machinery Co., Ltd.
2016 Gasoline/LPG Dual Fuel Forklift Truck thumbnail-1
2016 Gasoline/LPG Dual Fuel Forklift Truck photo-1
US$ 8,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
LTMA
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Fujian, China
Brand Name LTMA
Model Number FG20T
Type Powered Pallet Truck
Power Souce LP Gas Engine
Rated Loading Capacity 2000kg
Max. Lifting Height 3M-6M
Fork Length 1070
Fork Width 122
Overall Dimensions 2460*1150*1995
Certification CE/ISO
After-sales Service Provided Overseas third-party support available
Product Description

 2016 Gasoline/LPG Dual Fuel Forklift Truck



2016 Gasoline/LPG Dual Fuel Forklift Truck2016 Gasoline/LPG Dual Fuel Forklift Truck2016 Gasoline/LPG Dual Fuel Forklift Truck



2016 LTMA 2 Ton Gasoline/LPG Dual Fuel Forklift Truck

Features    Manufacturer                           LTMA
Model                                    Power shift T/M         FG20T
Manual shift T/M     FG20C
Load capacity                         kg2000
Load center  mm500
Power unit    Gasoline/LPG
Operator type   Driver/seat
Tire type     Front/rear Pnenumatic
Wheel  Front/rear 2/2
Dimension  Max. lifting height                    mm3000
Free lift                        mm160
Fork size        L*W*Tmm1070*122*40
Tilt range                                Mast forward/backward             deg6/12
Overall length(without fork)     mm2460
Total width    mm1150
Mast height (fork lowering)    mm1995
Overall height fork raised       With backrest                              mm4030
Height to head guard               mm2120
Turning raduis(outside)           mm2170
Front face of fork to front axle mm450
Min. right angle stacking aisle  without load length&clearence                    mm2615
Performance   Speed Max Travelling         full/no loadkm/h17/19
Lifting              full/no load        mm/s550/580
Lowering         full/no load                     mm/s450/550
Max.drawbar pull                   Power shift T/M      full/no load                                      kg1650/830
Manual shift T/M       full/no load                                 kg1700/830
Gradeability at 1.6km/h         Power shift T/M      full/no load                                      %25/20
Manual shift T/M       full/no load                                          %25/20
Weight            Truck weight   kg3240
Weight  distribution             Full  load              front/rear        kg4660/580
No  load               front/rear      kg1470/1770
Frame           Tires                                       Number front/rear2/2
Modelfront axle  7.00-12-12PR
rear axle 6.00-9-10PR
Wheelbase                               mm1600
Tread                                               Front/rearmm970/970
Ground clearence                  At lowest point(mast)                 mm110
Frame mm115
Brake                                            Service  brake Hydraulic-foot pedal
Parking brake  Mechanical-hand lever
Engine       Battery                                          Voltage/capacityV/AH12/60
Engine                                          Model  Nissan K21
Rated powerPS(kw/rpm)47/2250(34.6/2250)
Rated torque kg-m    max.(N.m)15.7/1600(153/1600)
Number of cylinders  4
Placement L2.065
Fuel tank capacity L70
Transmission     Speed forward/backward          Power shift T/M          Manual shift T/M                1-1 power shift T/M                                                                                                                              2-2 manual shift T/M
Operating pressure                    Hydraulic system pressure          kg/cm²180







Packaging & Shipping

 2016 Gasoline/LPG Dual Fuel Forklift Truck





Our Services

 After-sale service

We manufacturers,(LTMA) always treat the after-sale service more important than sale. Nowadays more than 10 agents around the world can supply LTMA professional after-sale service.

All the products of LTMA supplied with one year or 2000 workling hours (which occurs first) period quality warranty.

Detail clauses and policies please see to our website and product’s quality certificate.
