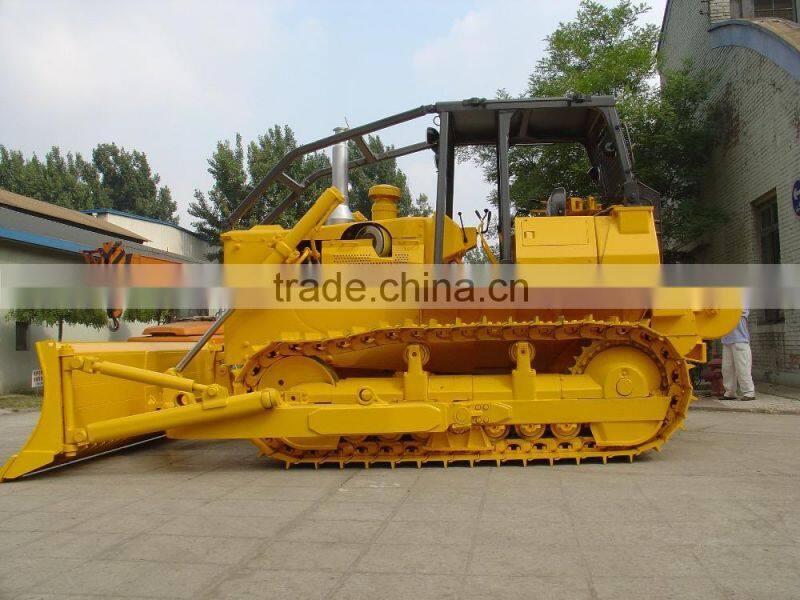

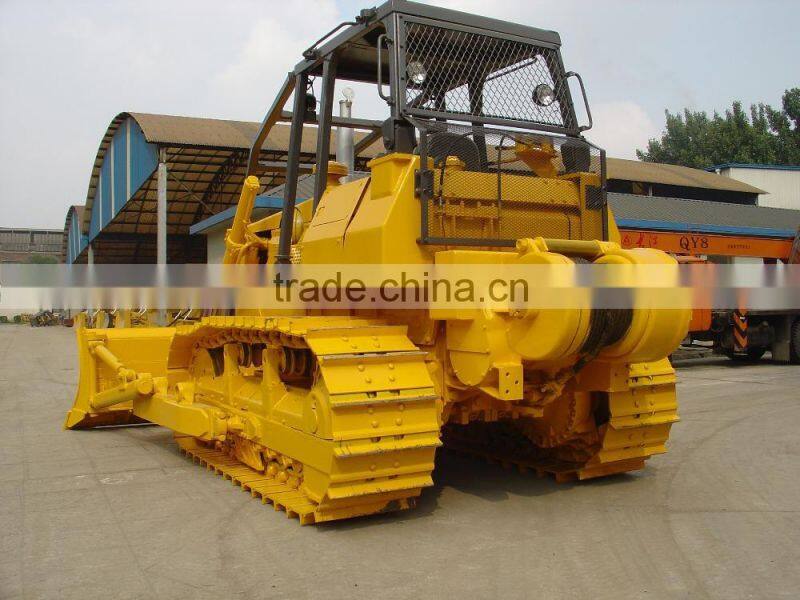

d6 Angle Dozer Logging Winch T180 180hp Forrest Bulldozer

Name: d6 Angle Dozer Logging Winch T180 180hp Forrest Bulldozer
Brand: LTMA
Availability: InStock

FOB Price

US$ 70,000 - 105,000 / Unit

1 Unit(Min. Order)

Port Tianjin
Payment TermsT/T L/C D/P D/A Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	LTMA
Model Number	180	Condition	New
Moving Type	Crawler Bulldozer	Machine Weight	17900kg
Dimension(Long * Breadth * High)	653034163130mm	After-sales Service Provided	Overseas third-party support available

Product Description

Komatsu technique, LTMA cooperate with Yishan, Chinese best sale and unique 180 hp bulldozer for sale

Product Description

Bulldozers d6 angle dozer logging winch T180F

AWARDED THE ISO9001:2000 SYSTEM CERTIFICATE
ENGINE MODEL: CUMMINS NT855-C280S10/SHANG CHAI SC11CB200G2B1/WEICHAI WD10G200E25
FLYWHEEL HORSEPOWER: 180 HP (135 kW)/1850RPM
OPERATING WEIGHT(STRAIGHT-TILT DOZER): 17900kg
INTRODUCING KOMATSU D60E-8 BULLDOZER TECHNOLOGY, FEATURING HIGH PERFORMANCE CAPACITY, EFFICIENCY, SAFE AND RELIABLE IN OPERATION.
SUITABLE TO BE USED IN ANY FORESTRY LOGGING APPLICATIONS
CANOPY STRUCTURE ENSURING EXCELLENT VISIBILITY AND SAFE OPERATION FOR OPERATORS
OPTIONAL ATTACHMENTS: STRAIGHT-TILT BLADE, ANGLE BALDE, WINCH, 3-SHANK RIPPER, 510MM TRACK SHOES, 610MM TRACK SHOES

Bulldozers d6 angle dozer logging winch T180F

SPECIFICATION

WORK EQUIPMENT

Specification/Blade type Straight-tilt Angle U-Blade

Operating Weight (kg) 17900 18200 18500

Blade Capacity (m3) 4.5 4.3 8.6

Min.Ground Clearance (mm) 400 400 400

Blade Width X Height(mm) 3416×1149/3970×1050/4064×1386

Min.Turning Radius (m) 3.3 3.3 3.3

Max.Lift (mm) 1124 1250 1250

Ground Pressure (MPa) 0.065 0.066 0.066

Max.Depth (mm) 584 545 545

Track Gauge (mm) 1880 1880 1880

Max.tilt Adjustment (mm) ≥860 ≥400 ≥400

Track Gauge (mm) 147.2 147.2 147.2

Pitch Adjustment ( ° ) 55 55 55

Grade Ability (°) 30 30 30

Capability (m3/H) (Theoretical value 40m)297.4/297.4/297.4

TRAVEL SPEED

Weight Of Blade (kg) 2450 2550 2650

1st 2nd 3rd 4th 5th

COOLANT AND LUBRICANT CAPACITY

Forward (km) 2.6 3.5 4.7 7.0 10.3

Fuel Tank Capacity (L)....................................................................320

Reverse (km) 3.3 4.5 6.1 9.1

Hydraulic Tank Capacity (L).............................................................108

ENGINE

Engine oil Capacity (L)......................................................................45

Model & Type...............Cummins NT855-C280S10/ Shangchai SC11CB200G2B1/ Weichai WD10G200E25, 6-cylinder, in-line, vertical. water-cooled, 4-stroke-cycle, turbo-charged, over valve directs injection

Torque Converter ,Transmission, Bevel Gear., Steering Clutch Capacity (L).....................................................................................122

Rated Revolution (rpm) ......................................................... 1850

Final Drive Capacity (L)..................................................33(each side)

Flywheel Horsepower (HP) .................................................... 180

RIPPER(OPTIONAL)

Cummins:6-139.7X152.4

3-ShankRipper:

Cylinder Number-BoreX Stroke (mm) Shangchai:6-120.6X152.4

Max.Digging Depth (mm)...............................................................572

Weichai:6-126X130

Max.Lift(mm)....................................................................................702

Piston Displacement (L) Cummins:14 Shangchai:10.5 Weichai:9.73

Shank Of Distance (mm) ................................................................950

Min. Fuel Consumption (g/kW.h)........................Cummins:212 Shangchai:220 Weichai:218

Weight (kg)......................................................................................1700

Max.Torque (Nm/rpm).................................Cummins:877/1250 Shangchai:870/1200 Weichai: 920/1100

WINCH (OPTIONAL)

Starting Method....................................Starting motor 24V 7.5kW

Weight (Kg)....................................................................................1390

TRANSMISSION SYSTEM

Cable Line Pull Of Bare Drum (KN) .........................................266.8

Main Cluch.................. Wet , multiple-disc, with cut-off brake. hand-manipulated and hydraulic boosted

Cable Line Pull Of Full Drum (KN) ............................................ 157.7

Transmission.................. Bevel gear, constant meshed, forced lubrication, hand-manipulated,5 forward and 4 reverse speeds

Cable Line Speed Of Bare Drum (m/s).......................................0.50

Bevel Gear.....................Spiral bevel gear, splash lubrication, single-stage speed reduction

Cable Line Speed Of Full Drum (m/s) ...................................... 0.83

Steering Clutch......... Wet, multi-disc, spring loaded,hydraulically separated, hydraulic control

Cable Dia. X Length (mm) ............................................. Diameter 26 X6600

Steering............Brake Wet, band type, pedal hydraulic booster, with parking brakes

OVERALL DIMENSIONS

Final Drive...... Double reduction of spur gear, splash lubrication

Angle Blade Dimensions

HYDRAULIC SYSTEM

Note: Materials and specifications are subject to change without notice.

Pump Type................................................Gear pump 07441-67503

Working Pressure (MPa)..............................................................13.7

System Discharge (L/min)............ 250(at revolution of 1850rpm)

Working Cylinder type........................... Double-acting piston type

Working Cylinder Lift Number-BoreXRodXStroke (mm)................ 2-110X65X1026

Working Cylinder Tilt BoreXRodXStroke (mm).........160X70X140

UNDERCARRIAGE SYSTEM

Type ............................. Swing type of sprayed beam, suspended structure of equalizer bar

Carrier Rollers..............................................................2(each side)

Track Rollers..7/each side (4-single flange, 3-double flange)

Track Type............................. Sealed, assembled single- grouser

Number Of Track Shoes............................................ 39(each side)

Width Of Track Shoes (mm) ...................................................... 510

Pitch (mm) ................................................................................... 203.2

Length Of Track 0n Ground (mm)............................................2635
