Rotary Table Shot Blast Cleaning Machine Equipment
- 100 Set / Sets per Month
- Qingdao
- T/T
- Supports multi-hook customization of Pumingwei hook-type shot blasting machine surface metal rust removal equipment
- tumble rubber belt shot blasting machine for foundry plant crawler shot blaster
- smaller casting parts surface treatment crawler shot blasting machine
- Q326 Q324 Q3210 tumble belt shot blasting machine crawler belt shot blasting machine
- Tumble belt shot blasting machine for nuts and bolts surface treatment
- Tumbler belt shot blasting abrator machine wheel crawler shot blaster
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HESONG |
Model Number: | ZJ Series | Feature: | Critical Cleaning / Residue Free, Non-Ionic, Non-Toxic | Fuel: | Electric |
Certification: | CE, UL, Other, CE, CE, UL, ISO, CE,ISO9001.BV | Use: | Burnishing, Container / Bottle Cleaning, Deflashing, Descaling / Stripping | Cleaning Process: | Other, steel shot |
Cleaning Type: | Other, shot blast, Shot Blasting/Sand Blast,PLC Full Automatic | Industry Used: | Other, Electronic Industry, Electronic Industry, Foundry, automotive, marine, rail | Material: | Metal / Coil |
Power(W): | Cusomized | Dimension(L*W*H): | Customized | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

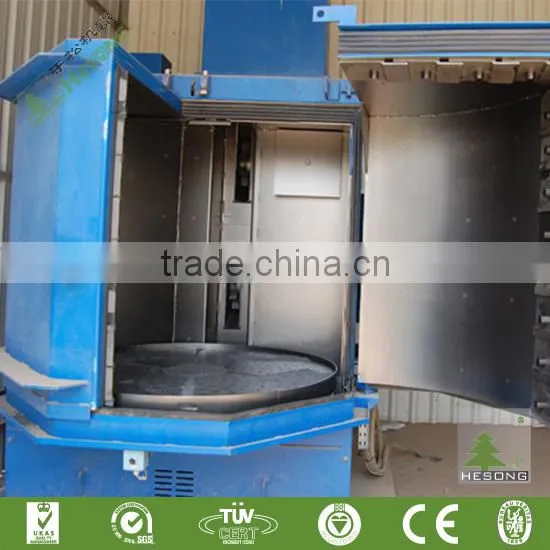

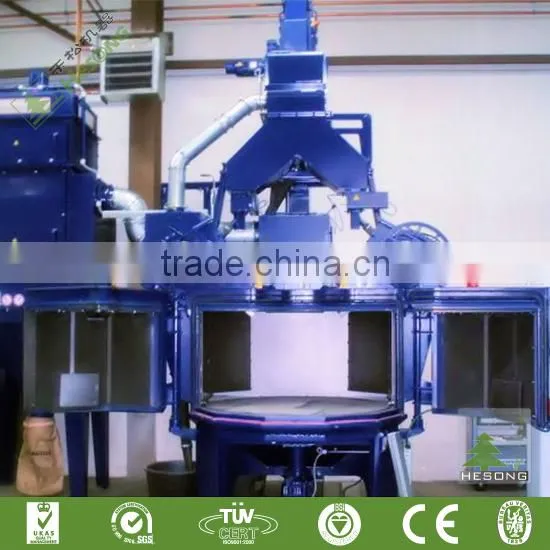

Rotary Table Shot Blast Cleaning Machine Equipment
Features of Rotary Table Shot Blasting Machine
1 Rotary Table Shot Blast Cleaning Machine Equipment mainly by the chamber body, turntable, drive system, separator, elevator, transmission devices pill, shot blasting and other components, in-room high-speed rotation of the top of a blasting device, the workpiece optimal position of the projectile, the workpiece with the rotary switch to the chamber body, the cleaning effect can be seen directly for the next step.
2 Driven by the drive plate rotary scraping pill, pill sand will flow through the tube to the elevator lower pill, then hoist mentioned separator to separate, well-shot balls through the tube and gate input for continuous shot blasting , and then were broken and dust shot into the other appropriate channels to a second separation.
Key components
Blast Cabinet, Rotary Table, Wheel Abrator, Elevator, Separator, Drive Mechanism, Electric Control System ,etc.

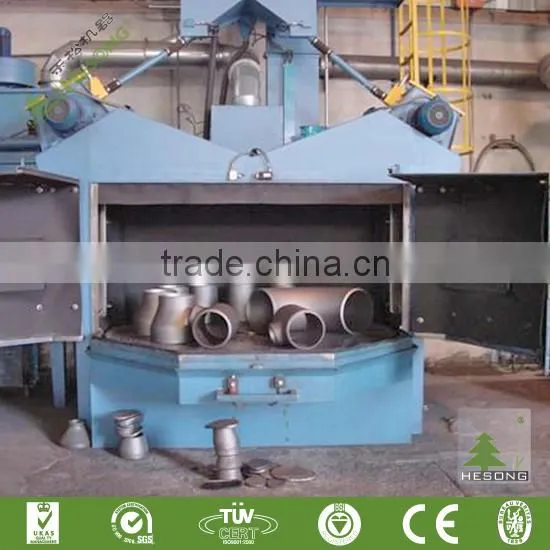

Feature Rotary table design
This machine has a table that can rotate under one or more abrators in the blast cabinet . During the surface treatment, workpieces are put on the rotary table, and abrasives are shot on the surface of work piece from the top direction . Sometimes work pieces may require a two-step blasting .
MODE | EFFECTIVE VOLUNE | FEEDING AMOUNT | TOTAL BLASTING CAPACITY | TOTAL POWER |
ZJ012 | 1350*560MM | 1200MM/400KG | 7.5KW/180KG*2 | 22KW |
ZJ025 | 2654*560MM | 2500MM/1000KG | 11KW/240KG*2 | 39.2KW |
ZJ015S | 1800*750MM | 1500MM/650KG | 15KW/270KG*2 | 42.2KW |
ZJ044J/E/F | 1700*1050MM | 350MM/200KG | 15KW/270KG*2 | 47.4KW |
QZ365/QQZ765 | 2700*1300MM | 2500MM/5T | 18.5KW/300KG*4 | 101.5KW |
QZ3630/QZ7630 | 3300*1550MM | 3000MM/30T | 18.5KW/300KG*4 | 117.4KW |
QZ3650/QZ7650 | 5000*2245MM | 4850MM/50T | 22KW/360KG*5 | 152.3KW |
QZ7680-QZ76510 | Non-calibration | Non-calibration | 22KW/720KG*6 | According to the technical requirements |
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & Molding Machine & Core Shooting Machine for more than 40 years, competitive with good quality.
7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
Welcome to contact us or visit our company
Why choose us ?
Our company has passed ISO 9001:2008 certified,we can offer OE service
Trade Term:
Payment term:30% as deposit, 70% balance against the copy of B/L
Delivery of the goods is executed within 45 days after receipt of advance payment.
Manufacturer must provide the certificate of origin to buyer
