Manufacture nail machinery
Description of nail making machine
This new type machine adopts plunger and oil pipe lubricating structure to ensure the high working speed, low noise and less impact.
Accessory equipment: Nail washing machine, grinder and wire drawing machine.

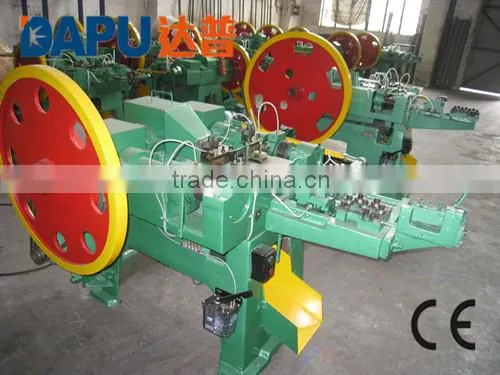

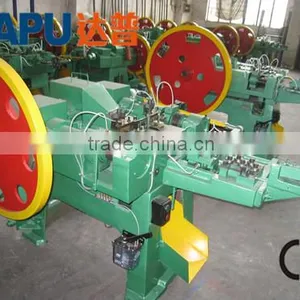

Picture of nail making machine
Picture of the product
Accessory equipment:
Nail washing machine, grinder and wire drawing machine
Raw material: low carbon steel wire
Technical parameter of the machine
Type |
1c |
2c |
3c |
4c |
5.5c |
6c |
Max. Diameter(mm) |
1.6 |
2.8 |
3.4 |
4.5 |
5.5 |
6.5 |
Mini. Diameter(mm) |
0.9 |
1.2 |
1.8 |
2.8 |
3.7 |
4.5 |
Max Length(mm) |
25 |
50 |
75 |
100 |
150 |
200 |
Mini. Length(mm) |
9 |
16 |
30 |
50 |
80 |
100 |
Output/Capacity(pcs/min.) |
450 |
350 |
320 |
280 |
200 |
160 |
Motor Power(Kw) |
1.5 |
2.2 |
3 |
4 |
5.5 |
11 |
Weight(Kg) |
1200 |
1400 |
1600 |
2000 |
2500 |
5000 |
Overall dimension(mm) |
1440*1040*1270 |
1670*1240*1380 |
1830*1300*1470 |
2130*1560*1580 |
2130*1600*1700 |
3200*2200*2200 |
Features of nail making machine
1. It has advanced design and compact conformation.
3. It has attractive appearance.
3. It is easy and safe to operate.
Function of nail making machine
It can make the high quality coil nails used in the nail gun. It can produce nails with different sizes, which are widely used in construction.
