Horizontal Movable Floor Shot Blasting Machine/Floor Shot Blasting Machine/Used Shot Blasting Machine

Floor Shot Blasting Machine

Company information:

Qingdao Foundry Machine Co., Ltd. is located in the Sailing City—Qingdao with superior geographical advantages which close to the International Airport and Harbor. Our company is a high-tech enterprise with a coalition of scientific research, production, installation, debugging and selling.

 Product introduction:

1. Product Introduction for shot blasting machines

Floor portable shot blasting machine is an environmental-friendly product specifically developed for construction and maintenance of various kinds of roads;

2. How Does It Work for shot blasting machines :

It can keep dust-free and non-pollution during the construction; and the abrasive can be automatically recycled.

3. Used For for shot blasting machines :

1) water proofing and rough making for concrete bridge deck,

2)cleaning and rough making for asphalt pavement, increasing the roughness of surface;

3)recovery of anti-skid performance for pavements, tunnels and bridges;

4)cleaning of fatting up and marks; decay-resistant treatment of steel bridge deck;

5) rubber and marks removing for airport pavement.

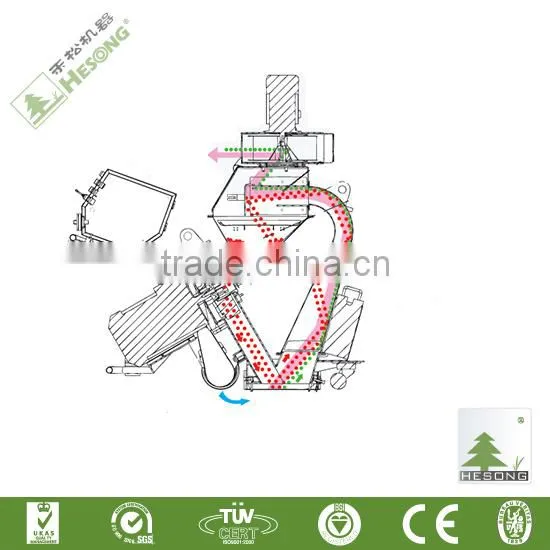

The Floor shot blasting machine system works using a high performance airless, centrifugal blast wheel for propelling blast media at a high velocity in a controlled pattern and direction. Different surface profiles can be achieved by varying shot size, shot flow rates and machine travel speed. Shot blasting is a time saving process that strips, cleans and profiles simultaneously

Main Technical Specifications

Mode:                                                                        QGLP550                                                        QGLP200

Power:                                                                           29KW                                                             14KW

Effective cleaning width:                                         550mm                                                          200mm

Cleaning efficiency for concrete surface:           300 m²/h                                                          80 m²/h

Travel speed:                                                       0.5~25m/min                                                 0.5~23m/min

Dust reclaiming:                 Cartridge filters dust collector QG5501AC                                    QG200AC

Walking Style:                                       Self-propelled Horizontal                                 Self-propelled Horizontal

Appearance Dimensions :                      2050×720×1460mm                                           1300×400×900mm

Weight:                                                                    595kg                                                                 160kg

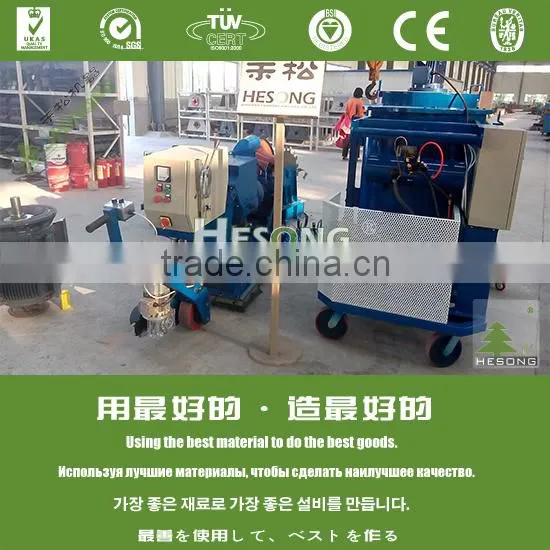

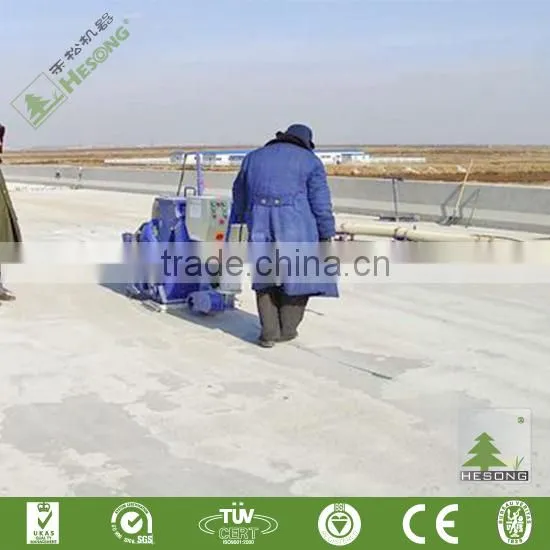

Pictures for your reference:
