Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HESONG |
Model Number: | QZLM-270 | Feature: | Critical Cleaning / Residue Free, Non-Toxic, Rust / Corrosion Inhibitor, Other, Critical Cleaning / Residue Free, Non-Toxic, Rust / Corrosion Inhibitor, Road shot blasting machine | Fuel: | Electric |
Certification: | CE, Other, CE, ISO9001-2008 | Use: | Burnishing, Degreasing, Descaling / Stripping | Cleaning Process: | Other, Blasting abrasive |
Cleaning Type: | Other, Movable sandblasting | Industry Used: | Other, airport runways, ship board, oil tank and bridges | Material: | Metal / Coil |
Power(W): | 15KW | Dimension(L*W*H): | Floor Wheel blast machine | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

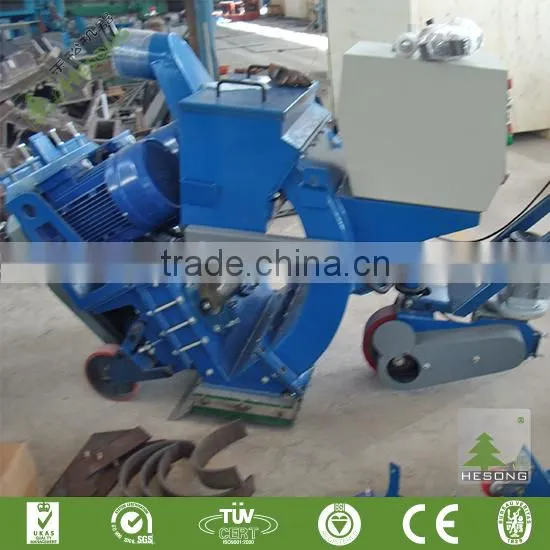

Floor Wheel blast machine
Our factory covers an area of 26000 square meters. We have about 260 employees including more than 50 middle and senior technical staff.
Professional software such as Auto CAD and Solid works have been used to provide exact drawings. SAP, Office Automation system been used to control and smooth the work flow.
We have a Quality Inspection Center with Dynamic balance detector, Static balance tester and other advanced equipments to detect finished products, which can guarantee the quality of each product.
All the products are designed by our technical department and tested by our own quality supervise department. We have the ISO9001 International Certification and CE Certification.
1.Application of Floor Wheel blast machine :
• Floor Wheel blast machine is designed for clean airport runways
• Floor Wheel blast machine cleans factory and warehouse floors and other floors.
• Floor Wheel blast machine prepares concrete for recoating or application of overlays
• Floor Wheel blast machine removes marking, dirt and old coatings
• Floor Wheel blast machine is used on bridge decks and highways
• Floor Wheel blast machine stencil patterns for decorative concrete applications
• Floor Wheel blast machine prepares parking lots and garage decks
Floor Wheel blast machine
Blasting width | 270mm | |
Blasting capacity | Up to 150m²/h on concrete | |
Motor | 11kW / 380V - 50Hz / 32A - Three phases | |
Dimensions(LxWxH) | 1940mm X 380mm X1100mm | |
Drive system/Speed | Electric /0.5-25m/min | |
Mode of operation | Horizontal movable self-propelled Backward(pull) | |
Surface | Steel/Concrete/Stone/Asphalt | |
Accessories | ||
Suction hose | Diameter150mm X Length20m | |
Dust collector | Motor | 7kw |
Airflow | 1250m³/h | |
Dimensions(LxWxH) | 2030mmX870mmX1500mm |
Blasting width | 550mm | |
Blasting capacity | Up to 300m²/h on concrete | |
Motor | 2x11kW / 380V - 50Hz / 63A - Three phases | |
Dimensions(LxWxH) | 1950mm X 720mm X1400mm | |
Drive system/Speed | Electric /0.5-25m/min | |
Mode of operation | Horizontal movable self-propelled Backward(pull) | |
Surface | Steel/Concrete/Stone/Asphalt | |
Accessories | ||
Suction hose | Diameter150mm X Length20m | |
Dust collector | Motor | 7kw |
Airflow | 1250m³/h | |
Dimensions(LxWxH) | 2030mmX870mmX1500mm |
Small-sized machine will be pakced by wooden box
Medium-sized machine will be no bulk and load into container directly
Large-sized machine will be load into special container ( skeletal container or open top, flat and platform containers)
We are factory for manufacturing alll kinds of foundry machinery and almost spare parts, We have special spare part depart.
We offer a full maintenance service! Manufacturers can provide repair facilities for consumers and to stock adequate spare parts so repairs can be undertaken. Tel (400-1177-399)
Our machine had approved CE AND ISO AND BV , SO OUR MACHINE CAN EXPORT TO ALL COUNTRIES.
1). Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2). Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3). Q: How does your factory do regarding quality control?
A: Quality is priority. MACTEC People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
4). Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components
5). Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. MACTEC is ALIBAB’s Gold supplier with BV assessment. If you check with ALIBABA, you will see that we have never got any complaint from our customers.
6).Shot Blasting Machine is often used for:
Cleaning
Deflashing
Rust and Scale Removal
Anchor Pattern Creation
Peening
Coating Removal
In order to give you the suitable machine , pls provide below message for us :
1. What is your workpiece and the material and the shape ?
2.The Max. Length/Width/Height of the workpiece and the Max./Min.weight of your workpiece ?
3.The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
4. The power supply you need( Our China :380V, 3PH, 50HZ)
5. Better to send us the workpiece photo or drawing.
Welcome to contact us or visit our company.

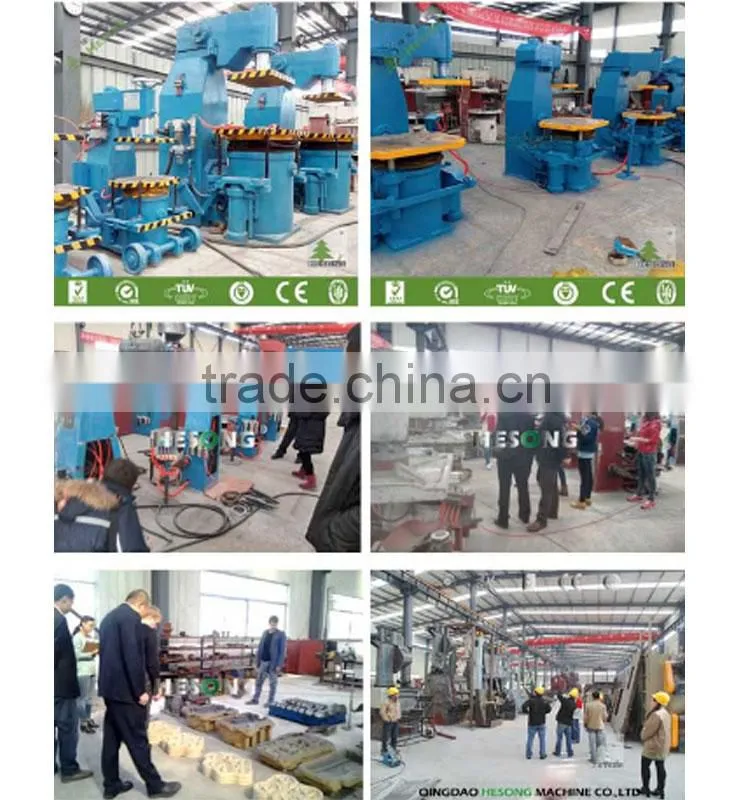

There are some founday machinery -----sand molding machine and sand core shooter machines.

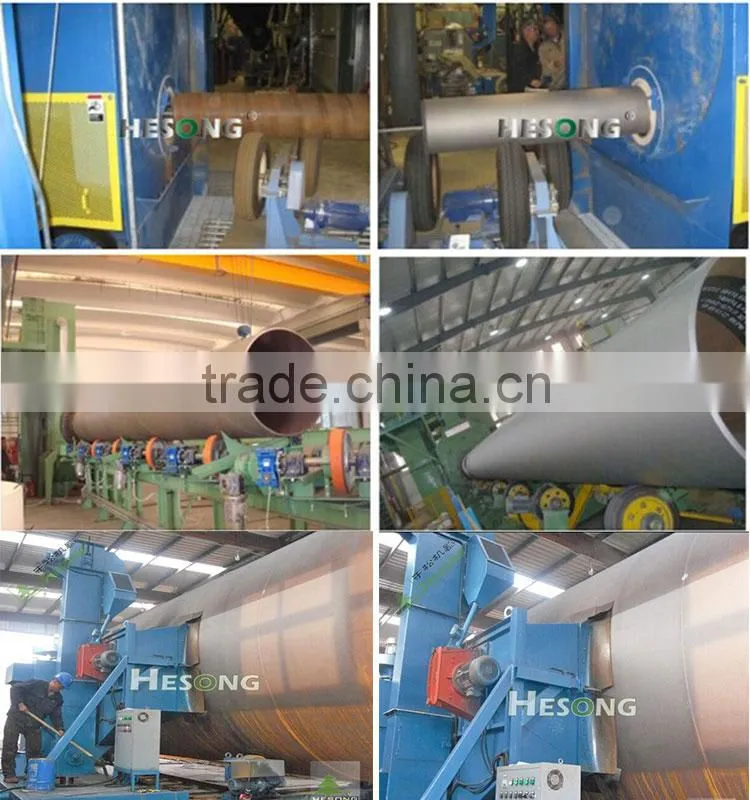

There are some shot blasting machines for cleaning pipe , tube, casting parts and soon on.
There are some sandblasting pot and chamber at our factory
