caged rock retaining walls making machine
Adavantage
1. PLC automatic control
2. Smooth operation, low noise, and high efficiency.
3. The machine includes five series with 15 moulds and the max. Width can reaches 4.3m.
Description
1. Gabion mesh machine (heavy duty hexagonal wire mesh machine) produces hexagonal wire mesh. 2. Our “gabion mesh machine adopts merits of products a home and abroad.
3. Specific twists type of gabion mesh machine can be customized, for example, twists selection are double twists (3 cross), three twist (5 cross), or double twists sharing with three twists (3 cross sharing with 5 cross).
Accessories

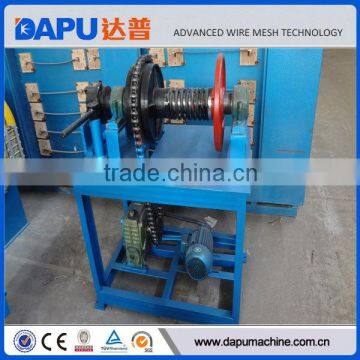

1. Spiral coil machine
2. Wire straightening machine
3. Winding mesh machine.
Technical parameter
Model | Mesh Size | Max. Width | Wire Diameter | Twisted number
| Main Drive Shaft Speed | Motor Capacity | Theoretical Speed |
mm | mm | mm | r/min | KW | m/h | ||
LNWL23-60-2 | 60×80 | 2300 | 1.6-3.0 | 3 | 25
| 11
| 165 |
LNWL23-80-2 | 80×100 | 1.6-3.0 | 195 | ||||
LNWL23-100-2 | 100×120 | 1.6-3.5 | 225 | ||||
LNWL23-1200-2 | 120×150 | 1.6-3.2 | 20 | 255 | |||
LNWL33-60-2 | 60×80 | 3300 | 1.6-2.8 | 25 | 15 | 165 | |
LNWL33-80-2 | 80×100 | 1.6-3.0 | 195 | ||||
LNWL33-100-2 | 100×120 | 1.6-3.2 | 225 | ||||
LNWL33-120-2 | 120×150 | 1.6-3.5 | 20 | 255 | |||
LNWL43-60-2 | 60×80 | 4300 | 1.6-2.8 | 25 | 22 | 165 | |
LNWL43-80-2 | 80×100 | 1.6-3.0 | 195 | ||||
LNWL43-100-2 | 100×120 | 1.6-3.0 | 225 | ||||
LNWL43-120-2 | 120×150 | 1.6-3.2 | 20 | 255 | |||
LNWL43-60-3 | 60×80 | 4300 | 1.6-2.8 | 5 | 25 | 22 | 165 |
LNWL43-80-3 | 80×100 | 1.6-3.0 | 195 | ||||
LNWL43-100-3 | 100×120 | 1.6-3.0 | 225 | ||||
LNWL43-120-3 | 120×150 | 1.6-3.2 | 20 | 255 |
Application
1. used in petroleum, construction, farming, chemical industry, heating pipes and other pipe parcel wire mesh;
2. used for fences of residential and landscape protection, etc.
3. used to make stone wire mesh cages to protect seawall, hillside, road, bridge, reservoirs, and other civil engineering.

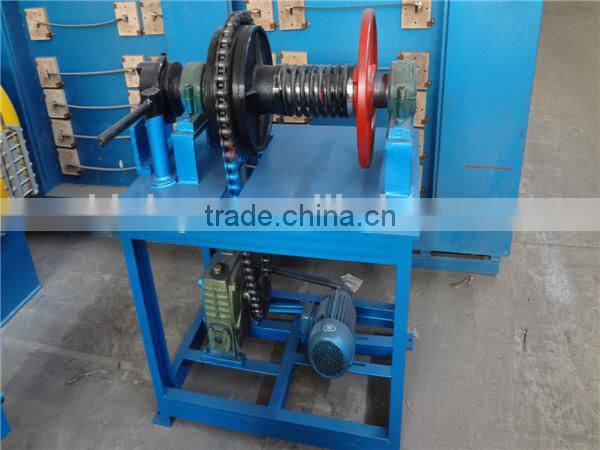

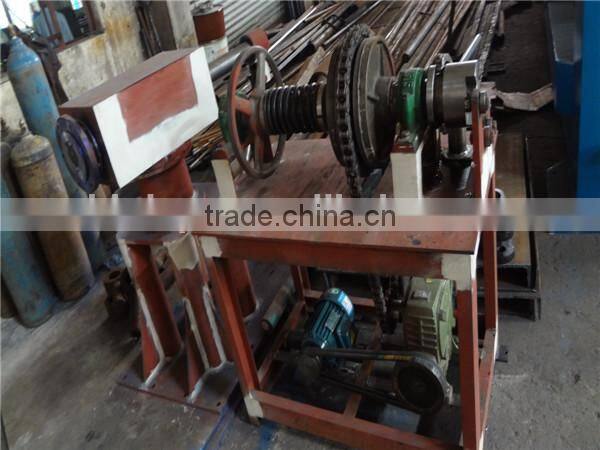

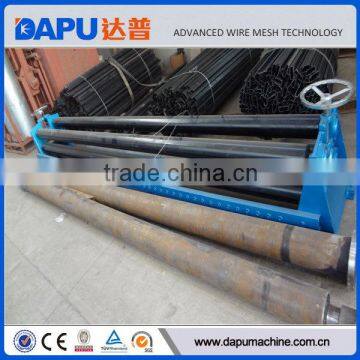

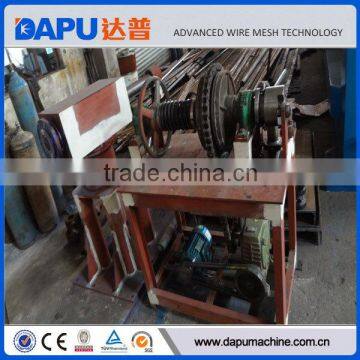

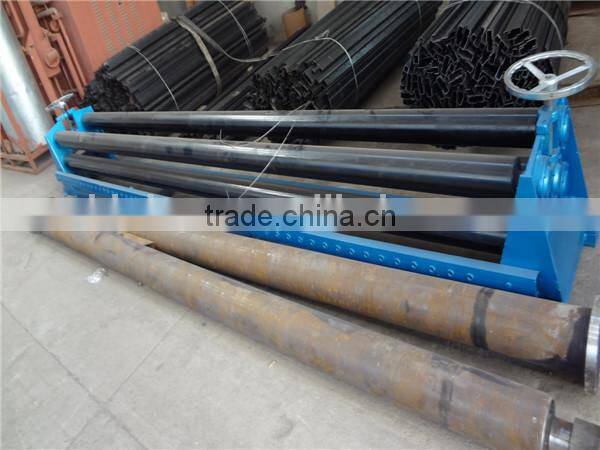

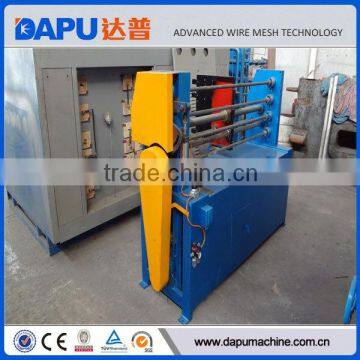

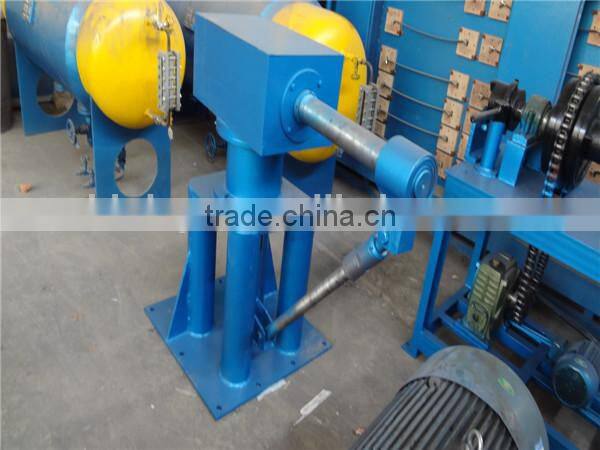

Machine photos

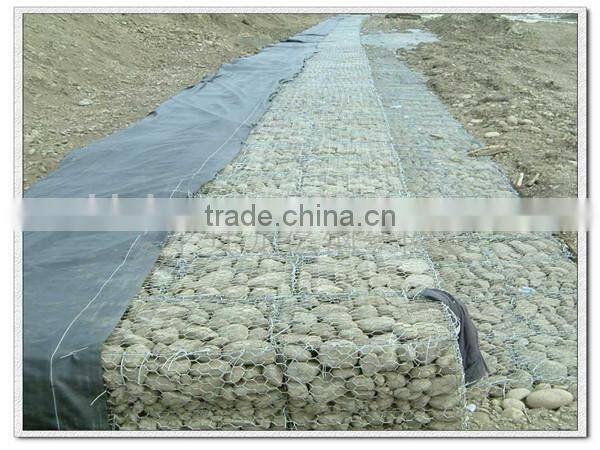

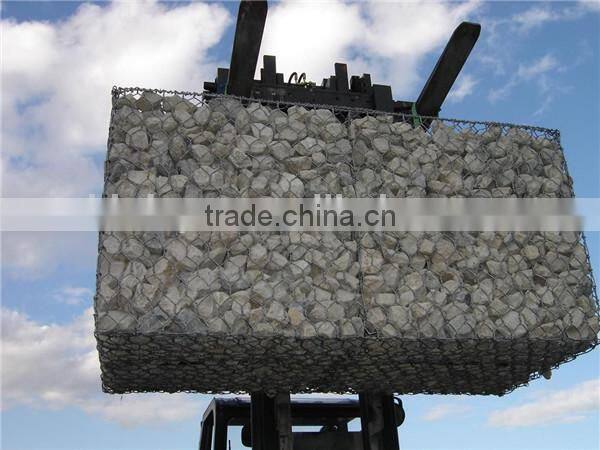

Finished products
- Predecessor-Anping Feilong Wire Mesh Machine Factory in1999;
- ISO9001: 2000 Certificate in 2006;
- Win import & export right from government in 2008;
- CE Certificate in 2009;
- Approved with inspection by Bureau of Quality Supervision &Inspection & Quarantine of Hebei in 2009;
- Awarded as advanced Enterprise for Project Construction, Enterprise with Prominent Establishment for Science and Technology progress in 2010.
1. Guarantee period: 12 months (but no longer than 18 months since departure from Xingang Port)
2. Our engineers are available to install and maintain machine overseas.
3. Customized machine.
4. OEM support.
5. Fast delivery.
6. Moderate price.
7. Door to Door service or 24-hour email service.
Product Catelogue
Please feel free to contact us. We wil reply within 6 hours !
We want to know:
1. Mesh opening
2. Wire diameter
3. Mesh width
