2016 factory price TUV led lamp round led panel light 6w led panel
- 500000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
-
MDL Sky LED Panel Light Model: MDL-PL-SKY
-
A led panel light 12w 220v led lights for home round backlit square frameless plastic recessed foco led panel lights
-
A Factory Wholesale Low Price 8W 12W 18W 24W 30W Surface Indoor Lighting Ceiling Led Panel Lights
-
MDL Ultra-thin LED Panel Light Model: MDL-PLRB
-
Keysight/Agilent T34450A OLED Green
-
led panel light 12w 220v round backlit square frameless plastic recessed led panel light
Product Details
| LED Light Source: | SMD 2835 LED | Warranty(Years): | 3 | Input Voltage(V): | AC85-265 |
| Lamp Power(W): | 6 | Lamp Luminous Flux(lm): | 600 | Lamp Luminous Efficiency(lm/w): | 85 |
| Color Temperature(CCT): | Other, 3000K, 4000K, 5000K, 6000K | Working Temperature(℃): | -25, 45 | Working Lifetime(Hour): | 35000 |
| Lamp Body Material: | Other, Die-Cast Aluminum alloy+Light Guide Plate | IP Rating: | IP44 | Certification: | C-tick, CE, EMC, FCC, SAA |
| Place of Origin: | Guangdong, China | Brand Name: | TOBRAND | Model Number: | PN-22-6W-03 |
Product Description

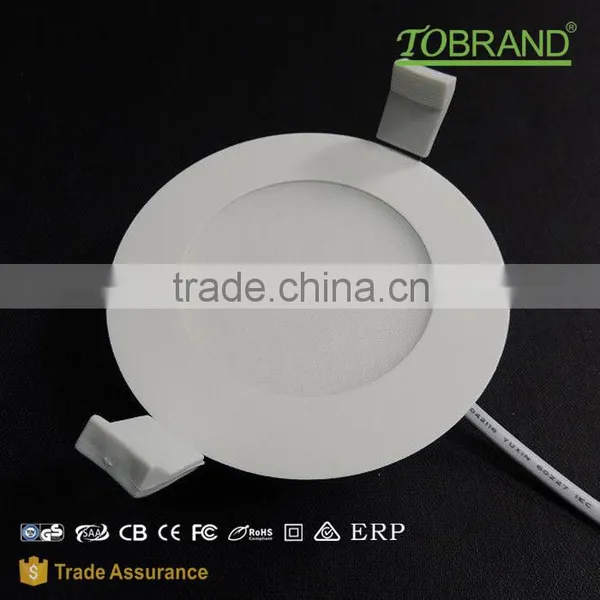

2016 factory price TUV led lamp round led panel light 6w led panel
What Round LED Panel Lights do we have?
Tobrand round led panel lights use high lumens EPISTAR SMD2835, with CRI>80RA,
Dimmable and Non-dimmable provided, with 3 years warranty.
Passed TUV-GS, SAA, RCM, CE, RoHS, CB certificates.
| Model No. | Size(mm) | Power | Hole Size | Input Voltage | CCT | Luminous Flux | CRI (Ra) |
| PN-12-6W-03 | Φ120xH14 | 6W | Φ105 | AC85-265V | 3000-6000K | 510-540lm | 80 |
| PN-15-9W-03 | Φ150xH14 | 9W | Φ135 | AC85-265V | 3000-6000K | 760-810lm | 80 |
| PN-17-12W-03 | Φ170xH14 | 12W | Φ155 | AC85-265V | 3000-6000K | 1010-1080lm | 80 |
| PN-20-15W-03 | Φ200xH14 | 15W | Φ180 | AC85-265V | 3000-6000K | 1260-1350lm | 80 |
| PN-22-18W-03 | Φ225xH14 | 18W | Φ205 | AC85-265V | 3000-6000K | 1510-1620lm | 80 |
| PN-24-20W-03 | Φ240xH14 | 20W | Φ220 | AC85-265V | 3000-6000K | 1680-1800lm | 80 |
| PN-30-24W-03 | Φ300xH14 | 24W | Φ280 | AC85-265V | 3000-6000K | 2010-2160lm | 80 |
Features
1) SMD2835 LED passed LM-80 test, Ra>80.
2) Entire Lamp pass TUV-GS Mark + CE + CB + SAA + RCM Certificate.
3) Isolated Protection Driver PF>0.97
4) Driver Efficiency >88%.
5) Three Years Warranty.

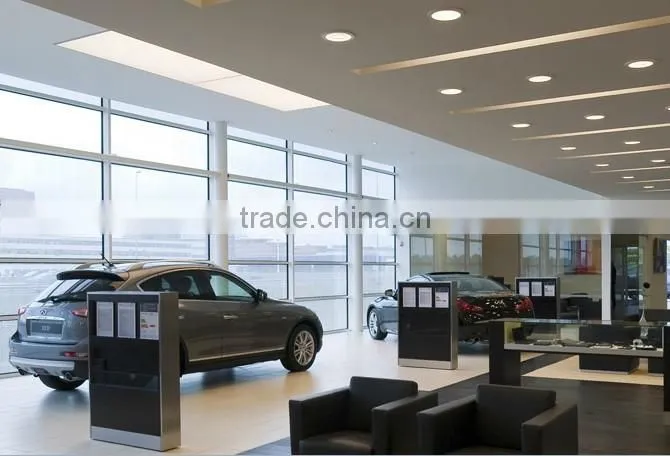

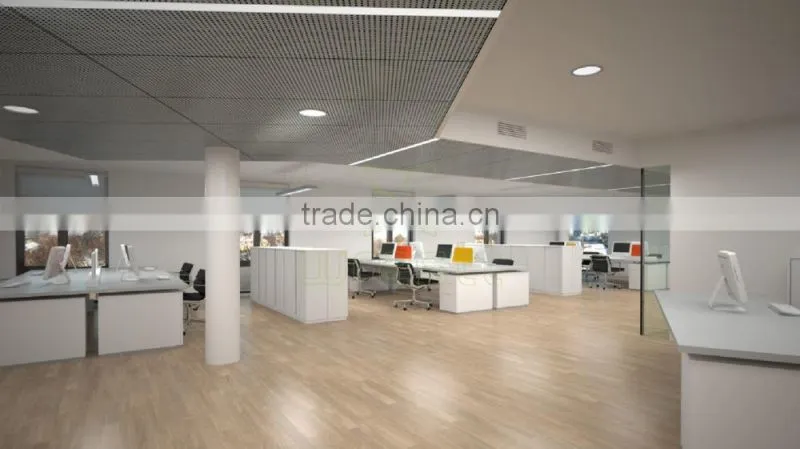

Application
1. Instead of the indoors ceiling light
2. School / Universities / Hospital
3. Conference / Meeting room /Show Room
4. Commercial Complexes
5. Super-markets
6. Residential / Institution buildings
Company Information
Tobrand Lighting Technology Co.,Ltd professionally engaged in developing, manufacturing and marketing of LED lighting products
since 2005. With strong R&D capability, professional technical team and substantial experience in the filed, we constantly make
technology innovation, launch new products byond customers' expectation every year to provide users with
highest-performance LED products.
Location: Shenzhen, China.
Factory Area: 2500m²
Employee No.: 100
Engineer No.: 8
Sales No.: 15
Main production machinery: 5 production line, 2 SMT machine, 1 reflow solder, 1 laser printing machine
Main test equipments: Integrating sphere system, IES test equipment, High and Low temperature test instrument, Microscope,
Digital power meter etc..
Warmly welcome to contact us at any time!!
Skype: yang.ann9
Mob: 86-13699846605
QQ: 2292039539
Contact Us
- Shenzhen Tobrand Lighting Technology Co., Limited
- Contact nameBarlow Tam
- Phone86-755-83635386
- Address3/F, Block C, Xusheng Liyuan Industrial Park, Shiyan, Baoan District, Shenzhen, Guangdong. China Shenzhen,Guangdong
