Best Cheap Plastic Fixed Copper Busbar Screw Terminal Block Connector
Best Cheap Plastic Fixed Copper Busbar Screw Terminal Block Connector
Material
• PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
• ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 100°C
• Brass, screw: iron plated zinc
• Voltage: 250V-450V
• Color: according sample picture or customized
Specification
Best Cheap Plastic Fixed Copper Busbar Screw Terminal Block Connector
| Way | Spec. | L | L1 | L2 | H | W | Φ | Screw Size | Plastic Setting |
| W×H | mm | ||||||||
| 4 | 6×9 | 36 | 59.5 | 48.5 | 29 | 11 | 6 | M4 x 7 | PA, ABS |
| 6 | 53 | 76.5 | 65.5 | 29 | 11 | 6 | M4 x 7 | PA, ABS | |
| 8 | 70 | 93.5 | 82.5 | 29 | 11 | 6 | M4 x 7 | PA, ABS | |
| 10 | 87 | 110.5 | 99.5 | 29 | 11 | 6 | M4 x 7 | PA, ABS | |
| 12 | 105 | 127.5 | 116.5 | 29 | 11 | 6 | M4 x 7 | PA, ABS | |
| 4 | 8x12 | 44 | 59.5 | 48.5 | 32 | 12.5 | 7 | M5 x 10 | PA, ABS |
| 6 | 54 | 76.5 | 65.5 | 32 | 12.5 | 7 | M5 x 10 | PA, ABS | |
| 8 | 71 | 93.5 | 82.5 | 32 | 12.5 | 7 | M5 x 10 | PA, ABS | |
| 10 | 87 | 110.5 | 99.5 | 32 | 12.5 | 7 | M5 x 10 | PA, ABS | |
| 12 | 105 | 127.5 | 116.5 | 32 | 12.5 | 7 | M5 x 10 | PA, ABS | |

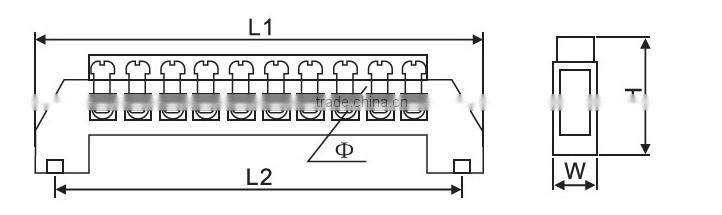

Drawings
Best Cheap Plastic Fixed Copper Busbar Screw Terminal Block Connector
Package & Shipping Method
1.Standard Export Package or OEM packing.
2.Shipping by sea normally,also could be choosen by clients.
