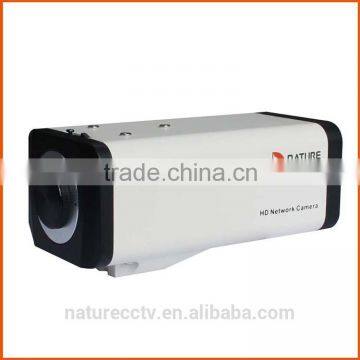

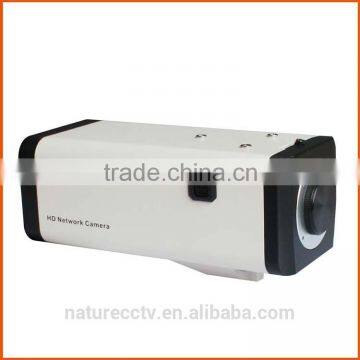

Panasonic Chip 1080P 2.0MP HD POE WDR IP Network Starlight Box Camera Low Illumination
Item Number: NVC-HD2588G
DC12V/ AC24V/ POE
HD IP Box Camera
Features:
H.265/ H.264/ M-JPEG,Support Multiple Code Stream
Built-in Auto Double Filter Switching Mechanism, True Day/Night
Support WDR, 3D - MCTF DNR / ROI
Support Corridor Mode, adapt to the special area show in long and narrow corridor
The power interface using Error prevention design,
Avoid mistaken insertion or reverse damage to the camera circuit.
Support ONVIF, DC12V/ AC24V (POE Optional)
Specification:
Model |
Model No. |
NVC-HD2595G |
NVC-HD2598P |
NVC-HD2588G |
|
Type |
2 Megapixel HD Low Illumination Box Camera |
2 Megapixel HD Low Illumination Box Camera |
2 Megapixel HD Super WDR Box Camera
|
||
Camera |
Sensor |
1 / 2.8″Sony Progress Scan CMOS |
1 / 1.8″Sony Progress Scan CMOS |
1 / 3″Progress Scan CMOS |
|
Min. Illumination |
Color: 0.001Lux.F1.2 |
Color: 0.001Lux.F1.2 |
Color: 0.05Lux.F1.2;B/W0.01 Lux.F1.2 |
||
Electronic Shutter |
1 / 25 ~ 1 / 10000 |
||||
Lens Interface |
C/CS |
||||
DNR |
3D DNR |
||||
S/ N Ratio |
≥52db |
||||
Aperture Type |
DC Drive, Support Auto/ Manual/ Fixed Lens |
||||
WDR Range |
≥120db |
≥120db |
≥140db |
||
BLC |
Support |
||||
Image |
Video Compression |
H.265/H.264 / MJPEG Frame Rate Adjustable |
|||
Code Stream |
VBR/ CBR/ LBR |
||||
Frame Rate |
1920*1080,1-25(30) FPS 1280*720,1-25(30) FPS |
||||
Image Setting |
Adjustable Image Format, Standard, Code Rate, Brightness, Contrast, Saturation, Sharpness, White Balance, Image Flip, and Mirror (Passage Mode)4A Auto Control, OSD Information Overlay; Image Flip |
||||
Intelligent Features |
Intelligent Code Stream, Video Mask, Out-of-focus Detection, Intelligent Switch Control |
||||
Protocol |
IPv4, TCP/IP, UDP, HTTP, DHCP, RTP/RTCP/RTSP, FTP, UPnP, DDNS, NTP, IGMP, ICMP |
||||
Compatible |
Support Onvif |
||||
Interface |
Audio Interface |
3.5mm Microphone/ Line in, External Active Microphone or Line Input |
|||
Communication Interface |
1* RJ45 10Base-T/100Base-TX |
||||
Alarm I/O |
1ch Input, 1ch Output |
||||
Mobile Surveillance |
Support (Optional) |
||||
General |
Working Conditions |
20℃~55℃,20-80% RH (non-condensing) |
|||
Power Supply |
AC24V/ DC12V±10% (POE Optional) |
||||
Dimension(mm) |
145.2(L)x67(W)x65(H)mm(Without Lens) |
||||
Weight(with package) |
420g |
||||
