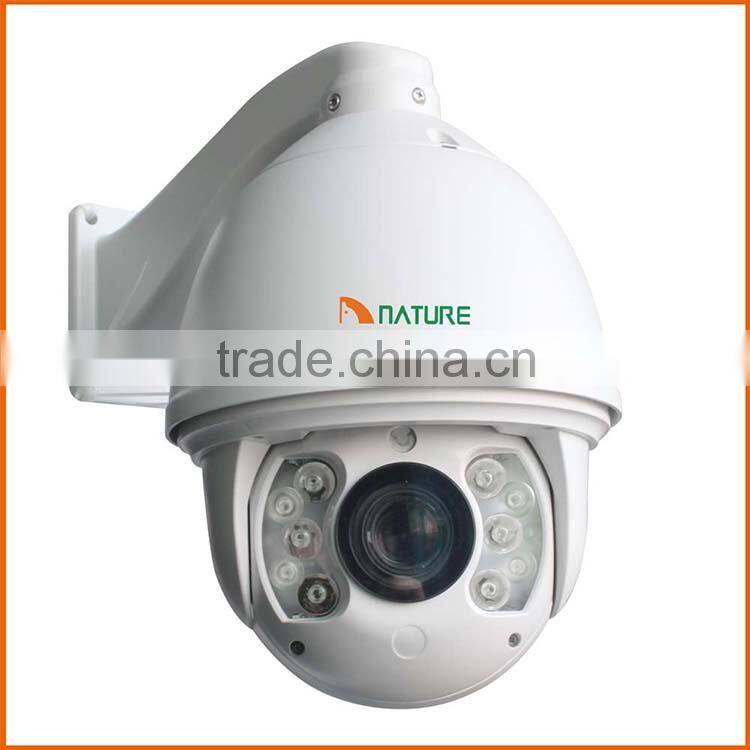

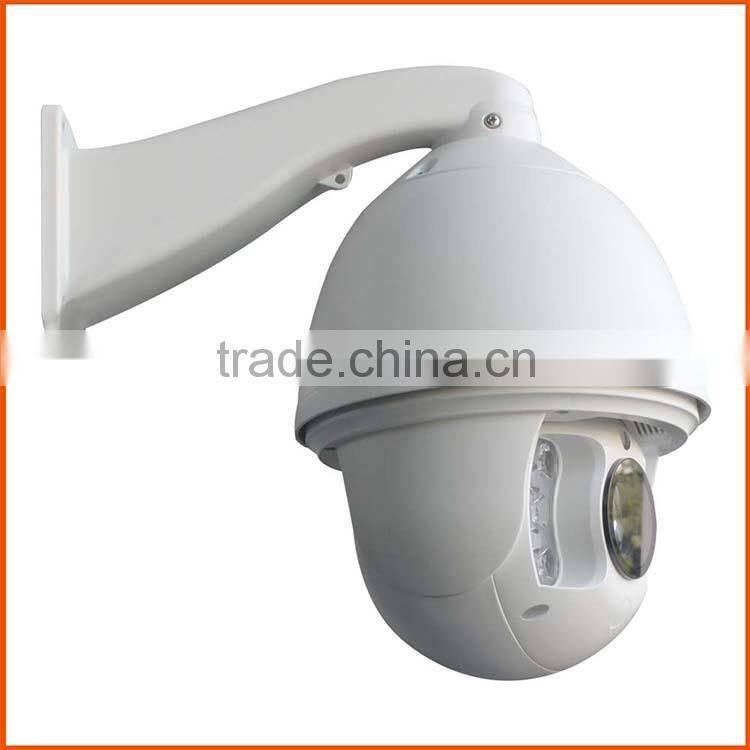

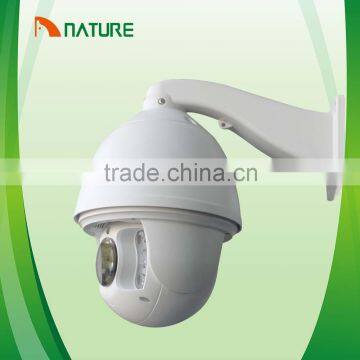

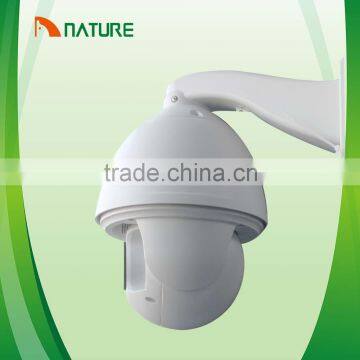

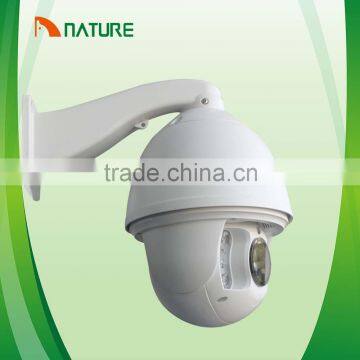

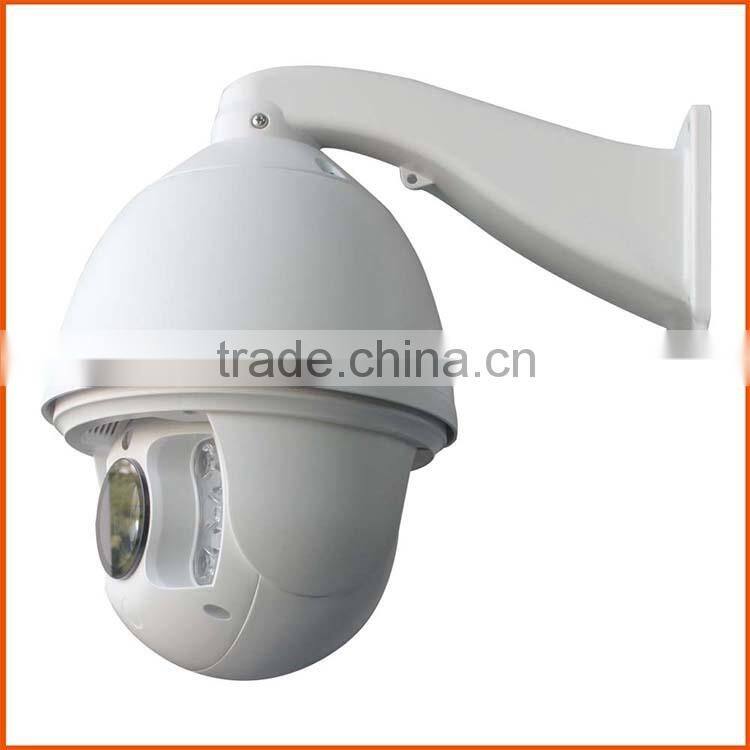

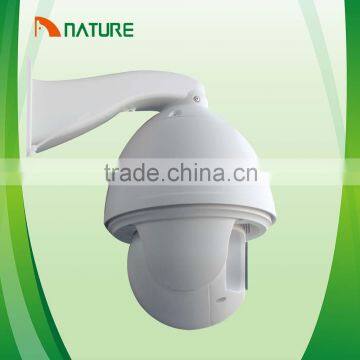

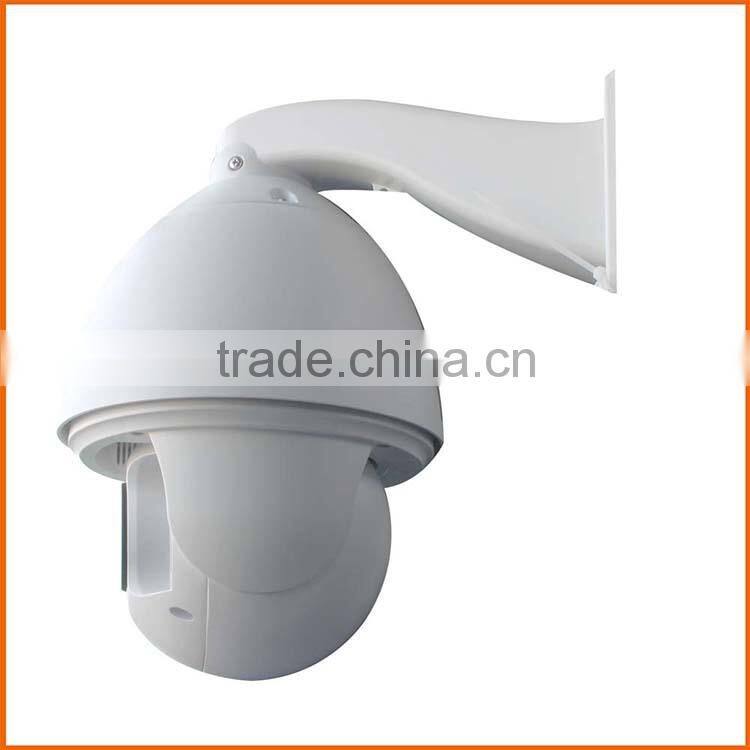

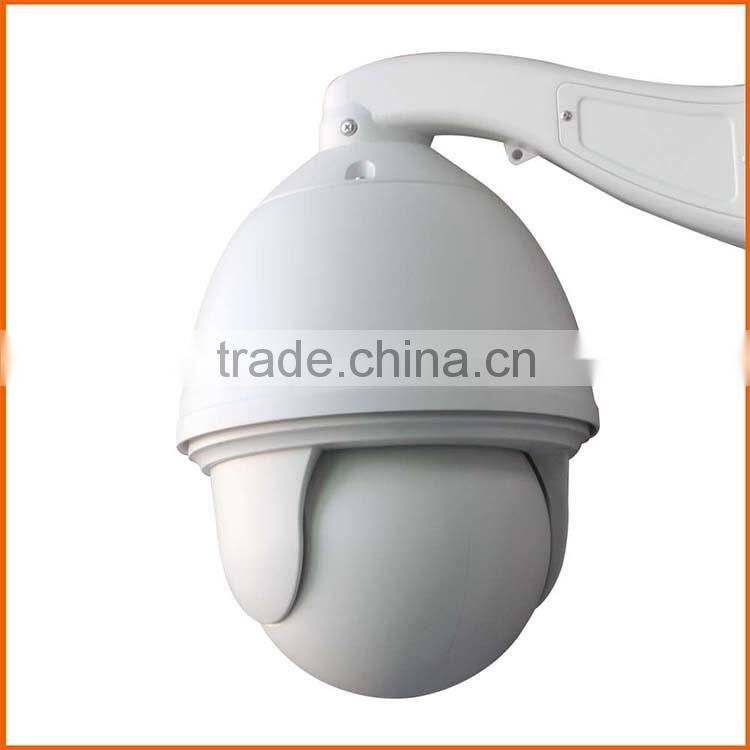

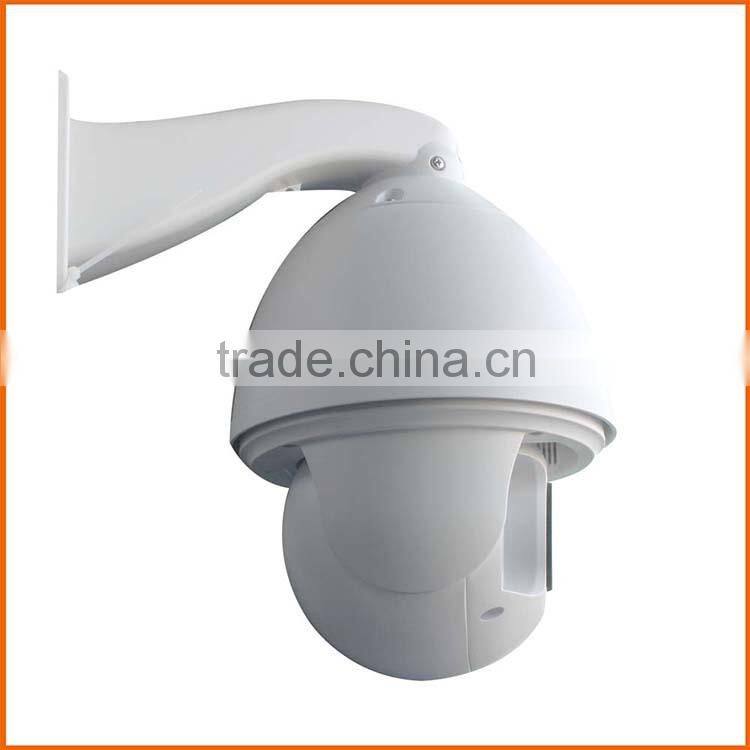

2MEG 30X HD Network IR/White Light PTZ Speed dome IP Cctv camera for Out door IR100M
Feature
1.Ambarella + Sony High-performance Video Process Sensor;
2.Built-in IR Dual Filter Auto Day & Night Switch, Color to B/W Switch by Manual or Automatic;
4. Customizable Working Conditions With Different Image Specification, Auto Switch As Planned;
5. Digital WDR, Qualified Image Under Low-Light or Strong Chiaroscuro Scene;
7. Anti-shake, Suitable for Outdoor Equipment Jitter Situation Causing by Wind, etc
8. Micro SD/SDHC/SDXC Card Slot, up to 64GB;
9. IR/White Light Distance: 150 m; Support ONVIF, GBT28181;
SPECIFICATION
Model |
Model No. |
NVC-HD9132PI |
NVC-HD9132PL |
NVC-HD9532PI |
NVC-HD9532PL |
Type |
1.3 Megapixels HD Network IR PTZ |
1.3 Megapixels HD Network White Light PTZ |
2.0 Megapixels HD Network IR PTZ |
2.0 Megapixels HD Network White Light PTZ |
|
Camera |
Image Sensor |
1/3″ Progressive Scan CMOS |
1/2.8″ Progressive Scan CMOS |
||
Focus Length |
32X (f4.5–144mm, Aperture: F1.6-4.8) |
||||
View Angle |
Horizontal:58.98°(wide)- 2.11°(tele) |
||||
Min. Illumination |
Color:0.05Lux B/W 0Lux(IR on) |
Color:0.05Lux(White Light on) |
Color:0.1Lux B/W 0Lux(IR on) |
Color:0.1Lux(White Light on) |
|
Electronic Shutter |
1/25 ~ 1/10000 |
||||
Day & Night Mode |
ICR Cut Filter,Manual,Auto,Timing,Alarm Switch |
||||
Focus/Zoom |
AF, ZF (Zoom Trigger AF), MF |
||||
WDR |
WDR, Auto/I/II/III |
||||
Exposure Control |
Automatic, manual, priority ( Shutter or Max AGC), brightness, etc. |
||||
Exposure Area |
Auto, center exposure , global exposure , manually select the area |
||||
DEFOG |
Optional |
||||
Anti-shake |
Optional |
||||
BLC |
ON / OFF |
||||
HLC |
Support Electronic Shutter, Gain Control and High Light Control |
||||
DNR |
3D-MCTF |
||||
S/N Ratio |
>52dB |
||||
Compression |
Video Compression |
H.264 Main Profile / Motion JPEG |
|||
Audio |
G.711 / G.726/ MP2 / AAC |
||||
Image |
Resolution |
SXGA(1280x1024)+FullD1;HD720p(1280x720)+Full D1Multi Code Stream |
Full HD/1080P(1920x1080) + Full D1 Multi Code Stream |
||
Frame Rate |
25fps(30fps optional) multiple video streams output at the same time, frame rate and bandwidth adjustable, H.264 support VBR/CBR |
||||
Image Setting |
Adjustable Image Format, Standard, Code Rate, Brightness, Contrast, Saturation, Sharpness, White Balance, Image Flip and Mirror(Passage Mode), Support rear-end enhance anti-fog function, 4A Control,AWB, AGC, AE, AIC, Privacy Mask, No Hangover 2DNR, Support over 3different contents in any area, including Date, Time, Week, Channel Name, Remark and other information in OSD, Image Rotation: Normal 90°/ 180°/ 270° |
||||
Network |
Interface |
RJ45 10Base-T/100Base-TX |
|||
Alarm |
Motion Detection,External Sensor Trigger,Expanded Virtual Alarm Host Action with SD/SDHC Card Videotape or Relay Output Alarm |
||||
Protocols |
IPv4, TCP/IP, UDP, HTTP, DHCP, RTP/RTCP/RTSP, FTP, DHCP, DDNS, NTP, IGMP, ICMP |
||||
Onvif |
Support GB/T 28181 & ONVIF2.4.2.2 |
||||
GBT28181 |
Password Protection, Multi-access Control, Support Unicast and Multicast, Support IP Address Filtration Control, Support UpnP protocols, Search and Manage IP Cameras in batch easily, Continuous Transmit once Internet Connected, Redundancy Transmit Function, Auto Timing and Remote Upgrade |
||||
PTZ |
Rotation Range |
Pan 0°---360° Endless, Tilt -10°—90° Automatic |
|||
