NVC-HD9525G
HD Network Starlight Low Illumination PTZ Camera
FEATURE
HDTV, 25X Optical Zoom, Auto Focus, H.265 Solution;
4A Auto Control, Auto White Balance, Exposure, Gain, Aperture Correction;
Built-in IR Dual Filter Auto Day & Night Switch;
3D-MCTF DNR & ROI Specified Area Compression, WDR;

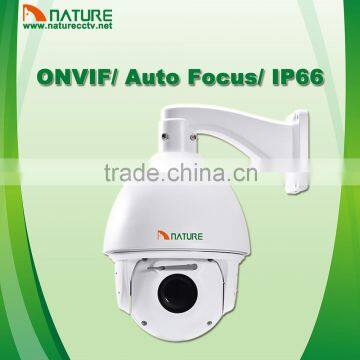

DEFOG, Suitable for Working under Fog, Haze, Rain& Other Adverse Weather Condition; Weatherproof IP66
SPECIFICATION
Model |
Model No. |
NVC-HD9525G |
Type |
2 Megapixels HD Network Starlight Low Illumination PTZ Camera |
|
Camera |
Image Sensor |

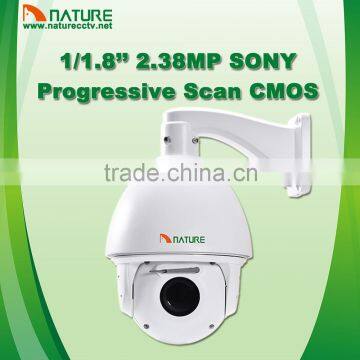

1/1.8’’ 2.38MP SONY Progressive Scan CMOS |
Focus Length |
25X (F5.6~140mm; Fw1.5~Ft3.4) |
|
View Angle |
Wide: 70°x 59.8° x 44.4; Tele: 3.76° x 3.0° x 2.24 |
|
Min. Illumination |

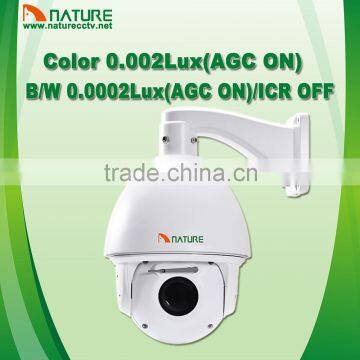

Color: 0.002Lux /(F1.2, AGC ON); B/W: 0.0002Lux /(F1.2, AGC ON), ICR OFF |
|
Electronic Shutter |
1/25 ~ 1/10000 |
|
Day & Night |
ICR Cut Filter, Manual, Auto, Timing, Alarm Switch |
|
WDR |
Off, Auto/ I/ II/ III |
|
Exposure Area |
Auto, Center Exposure, Global Exposure , Manually Select the Area |
|
DEFOG |
Optional |
|
BLC |
ON / OFF |
|
HLC |
Support Electronic Shutter, Gain Control and High Light Control |
|
DNR |
3D-MCTF DNR |
|
S/N Ratio |
>50dB |
|
Compression |
Video Compression |
H.265 Main Profile; H.264 BP/MP/HP; MJPEG |
Stream Control |
CBR/ VBR |
|
Audio |
G.711 / G.726/ MP2 / AAC |
|
Image |
Resolution |

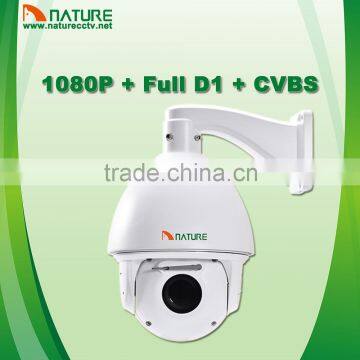

1080P + Full D1 + CVBS |
Frame Rate |
25fps (30fps Optional) |
|
Image Setting |
Adjustable Image Format, Standard, Code Rate, Brightness, Contrast, Saturation, Sharpness, White Balance, Image Flip and Mirror(Passage Mode), Support Rear-End Enhance Anti-Fog Function, 4A Control, AWB, AGC, AE, AIC, Privacy Mask, No Hangover 2DNR, Support over 3different contents in any area, including Date, Time, Week, Channel Name, Remark and other information in OSD, Image Rotation: Normal 90°/ 180°/ 270° |
|
Network |
Interface |
RJ45 10Base-T/100Base-TX |
Intelligent Alarm |
Face Tracking, Motion Detection, External Sensor Trigger, Expanded Virtual Alarm Host , Line Cross Detection, Regional Intrusion Detection, Lens Cover, Flow Counting, etc |
|
Protocols |
IPV4, TCP/IP, UDP, HTTP, DHCP, RTP/RTCP/RTSP, FTP, DHCP, DDNS, NTP, IGMP, ICMP |
|
ONVIF |
Support GB/T 28181 & ONVIF2.4~2.2 |
|
GBT28181 |
Password Protection, Multi-Access Control, Support Unicast and Multicast, Support IP Address Filtration Control, Support UPNP protocols, Search and Manage IP Cameras in batch easily, Continuous Transmit once Internet Connected, Redundancy Transmit Function, Auto Timing and Remote Upgrade |
|
PTZ |
Rotation Range |
Pan 0°---360° Endless, Tilt -10°—90° Automatic |
Rotation Speed |
Horizontal Key Control:0.1° ~300°/s, Horizontal Preset Position Speed: 540°/s; Vertical Key Control:0.1° ~240°/s; Vertical Preset Position Speed:400°/s |
|
Preset |
256 |
|
Auto Cruise/ Scan |
8 Line/ 4Line |
|
Pattern |
8 Line (Each 180 second) |
|
Guard |
1 |
|
Power-off Memory |
Recover to the PTZ and Lens previous state when restart |
|
Interface |
Audio Interface |
3.5mm Mic/ Line in, 3.5mm Line out |
Alarm I/O |
1CH Input /1CH Output |
|
SD Card |
Optional (Built-in) |
|
Video Output |
RJ45 (10/100M)+CVBS |
|
General |
Working Conditions |
-30 ℃-50℃(Outdoor) / -10℃-50℃(Indoor), Relative Humidity≤90%; Auto Constant Temperature |
Power Supply |
DC12V /AC 24V ±10% |
|
Protection Level |

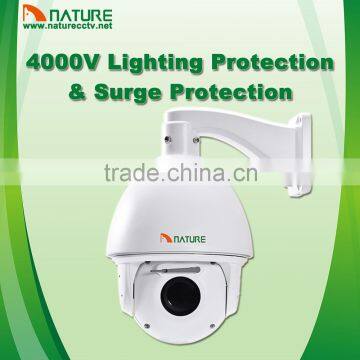

IP66, All-weather Protective Cover, Built-in Fans& Thermostat, 4000V Lighting Protection and Surge Protection |
|
Dimension(mm) |
Φ228x341 mm |
|
Weight |
5KG |
For Airport, Station, Museum, Bank, Road, Wharf, City Surveillance etc Large Public Places.
